ST Wheel Spacer System D3 40mm per Axle 5x114.3/64.1

SKU: 56020128
Sale price$388.55 Regular price$409.00
Save $20.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

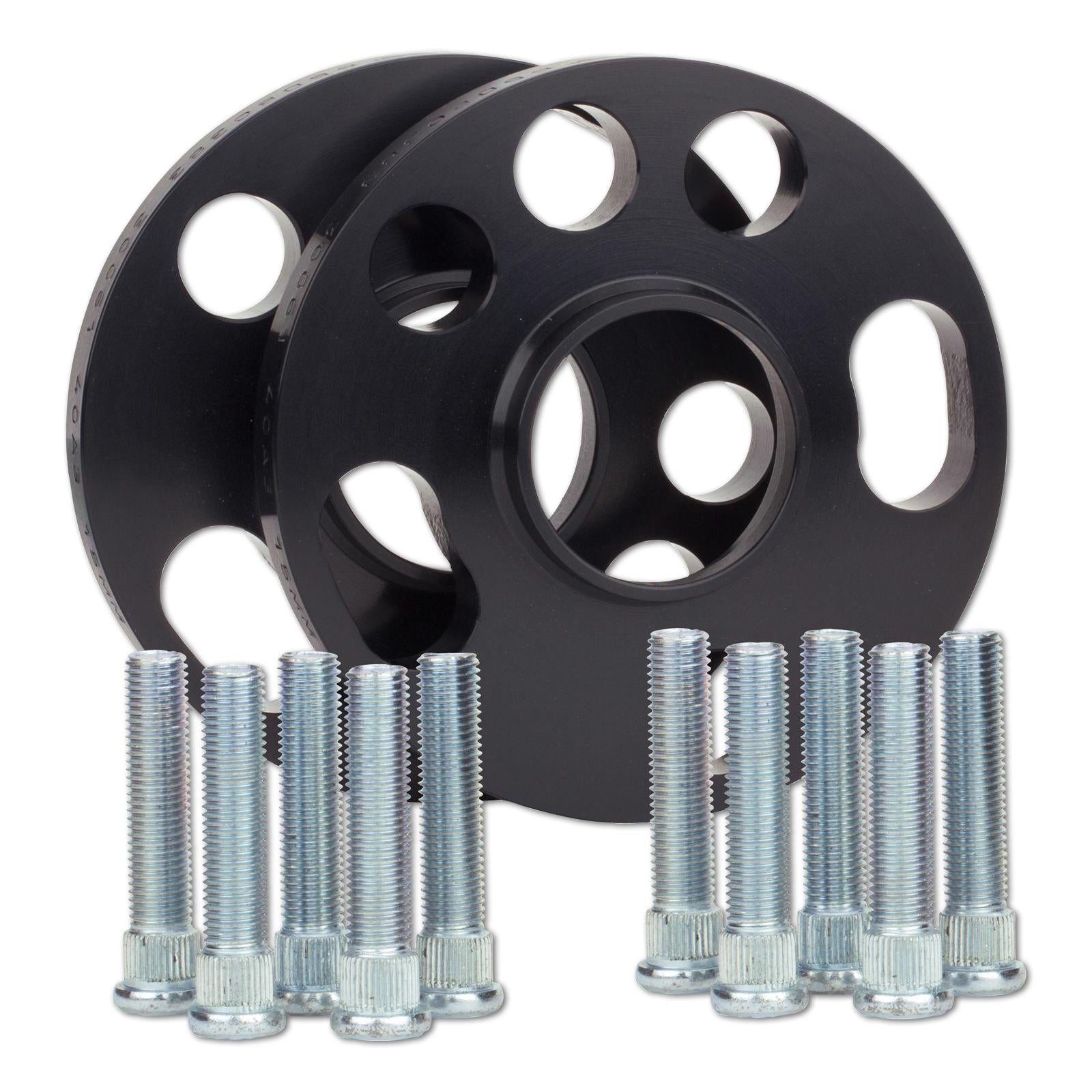

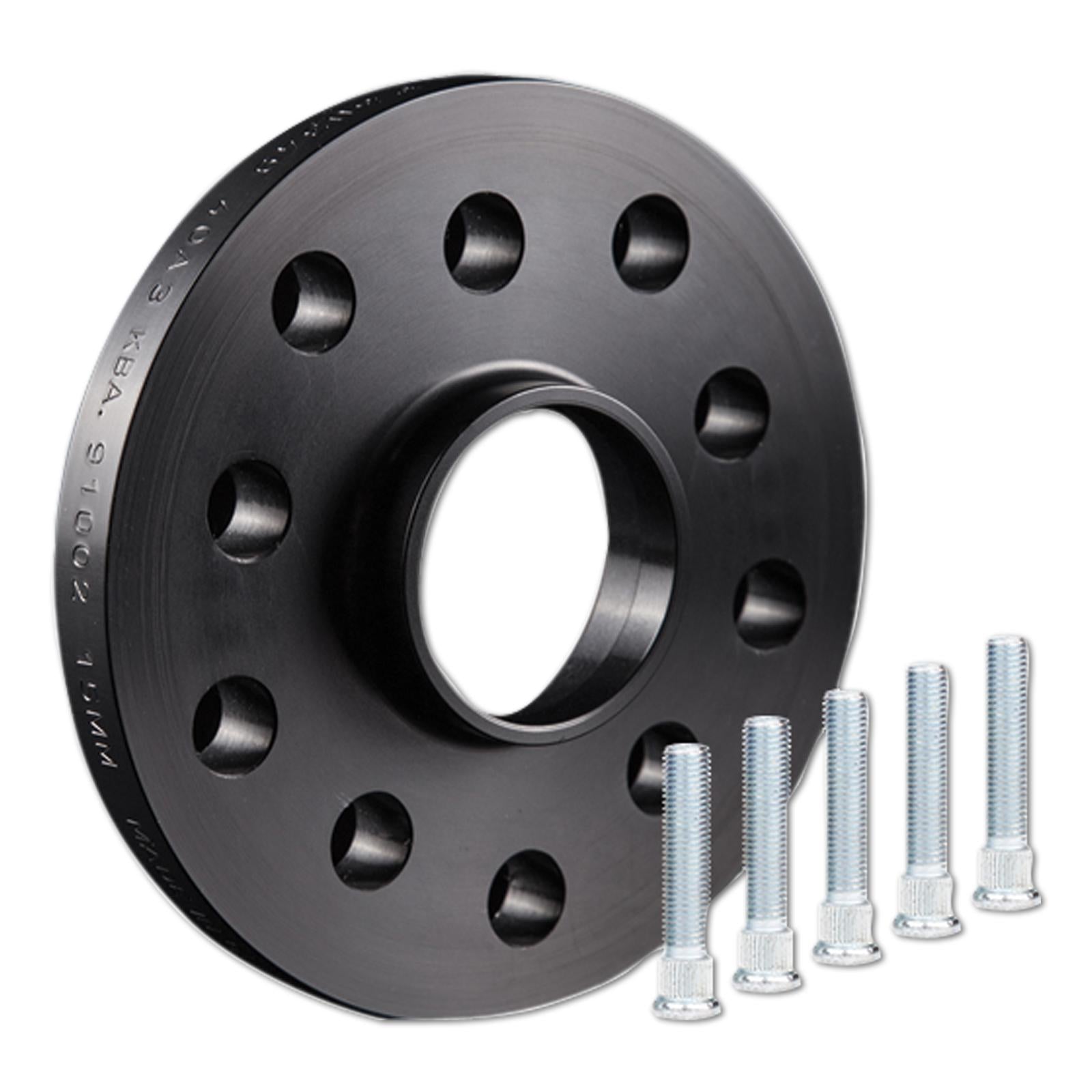

ST's D3 is a bolt-through wheel spacer with double centring for vehicles with wheel studs: the spacer centres on the hub and a collar on the spacer locates the wheel. Longer knurled studs are included.

Key Features

  • Double centring
  • Longer knurled studs included
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 40 mm per axle (20 mm per wheel)
  • Bolt pattern (PCD): 5x114.3
  • Centre bore: 64.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel nuts, M12x1.5
  • Position: Front or rear axle
  • Material: Aluminium
  • Supplied as: Set (2 pcs including knurled bolts)

References 307. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x114.3
Hub bore64.1mm
Width per axle40mm
SystemD3
ThreadNut: M12x1.5
Wheel offset limit29
MaterialAluminium
Supplied asSet (2 pcs. incl.knurled bolts)
  • Note 307: Please order separately.
  • Note 317: Attention: Installation only possible at rims with corresponding holes on the back. The depth of the pockets must be larger than the remaining length of the studs, which protrude from the wheel spacers after assembly.
