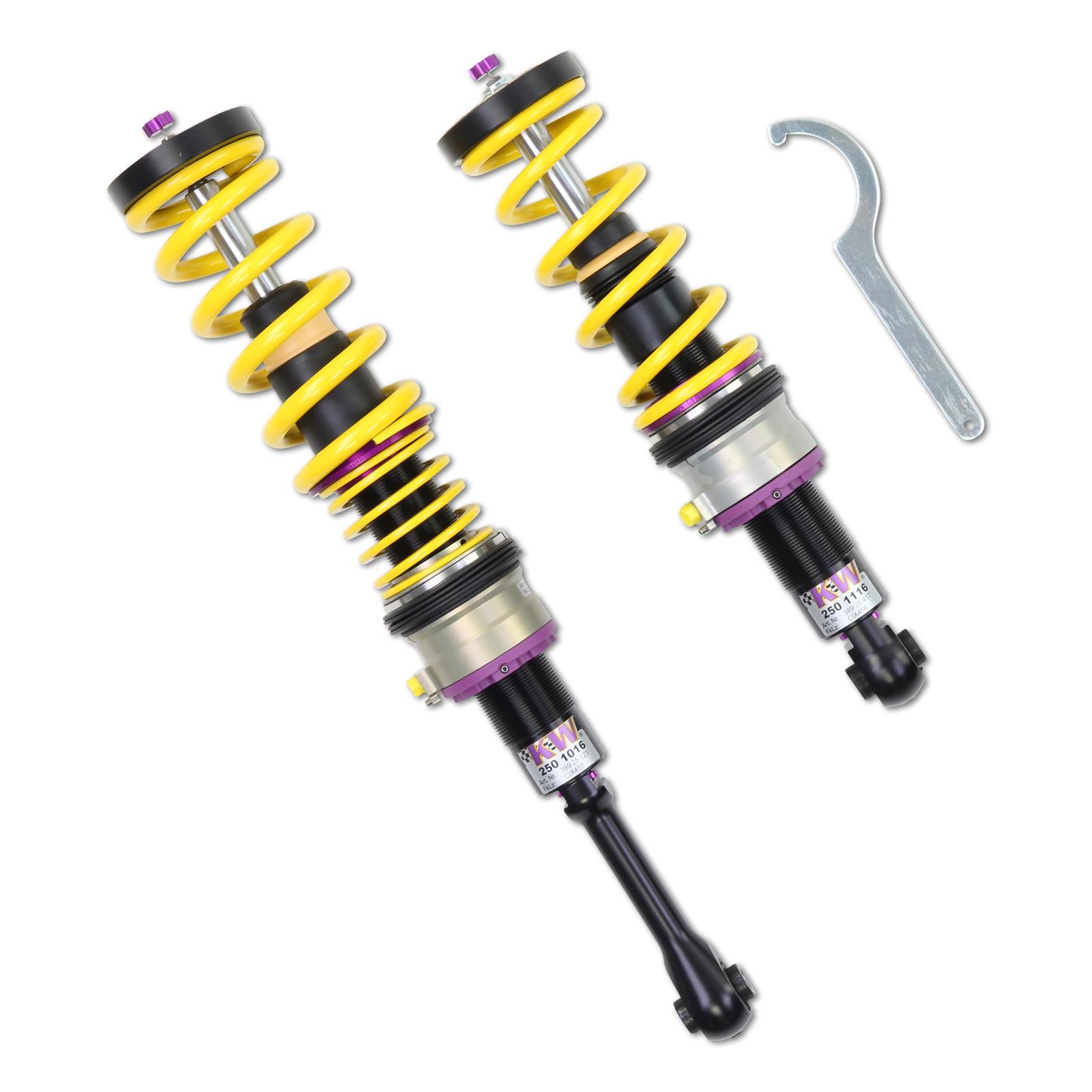

KW Coilover Kit V3 for Ferrari (F131) 360 Modena / 360 Spider / 360 Challenge w/ HLS 2 Hydraulic Lift System
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

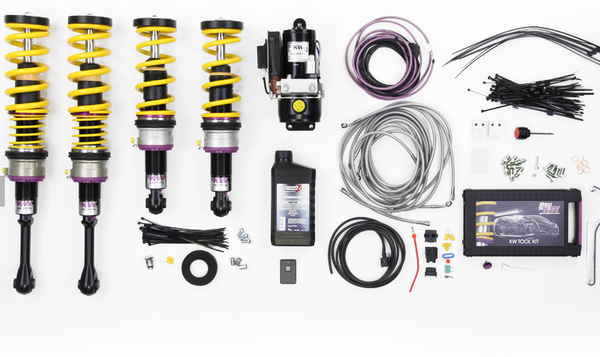

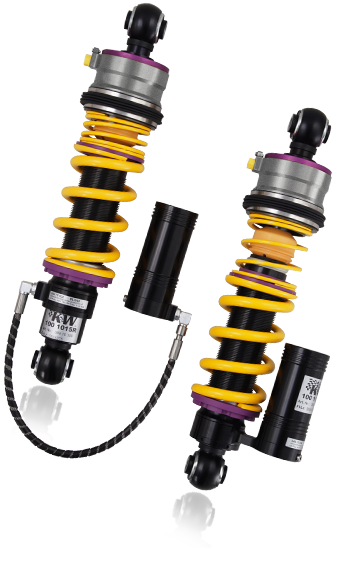

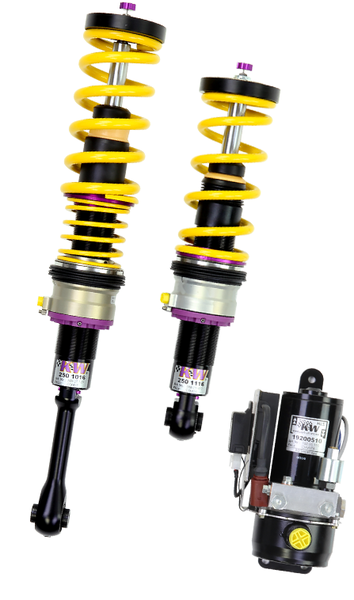

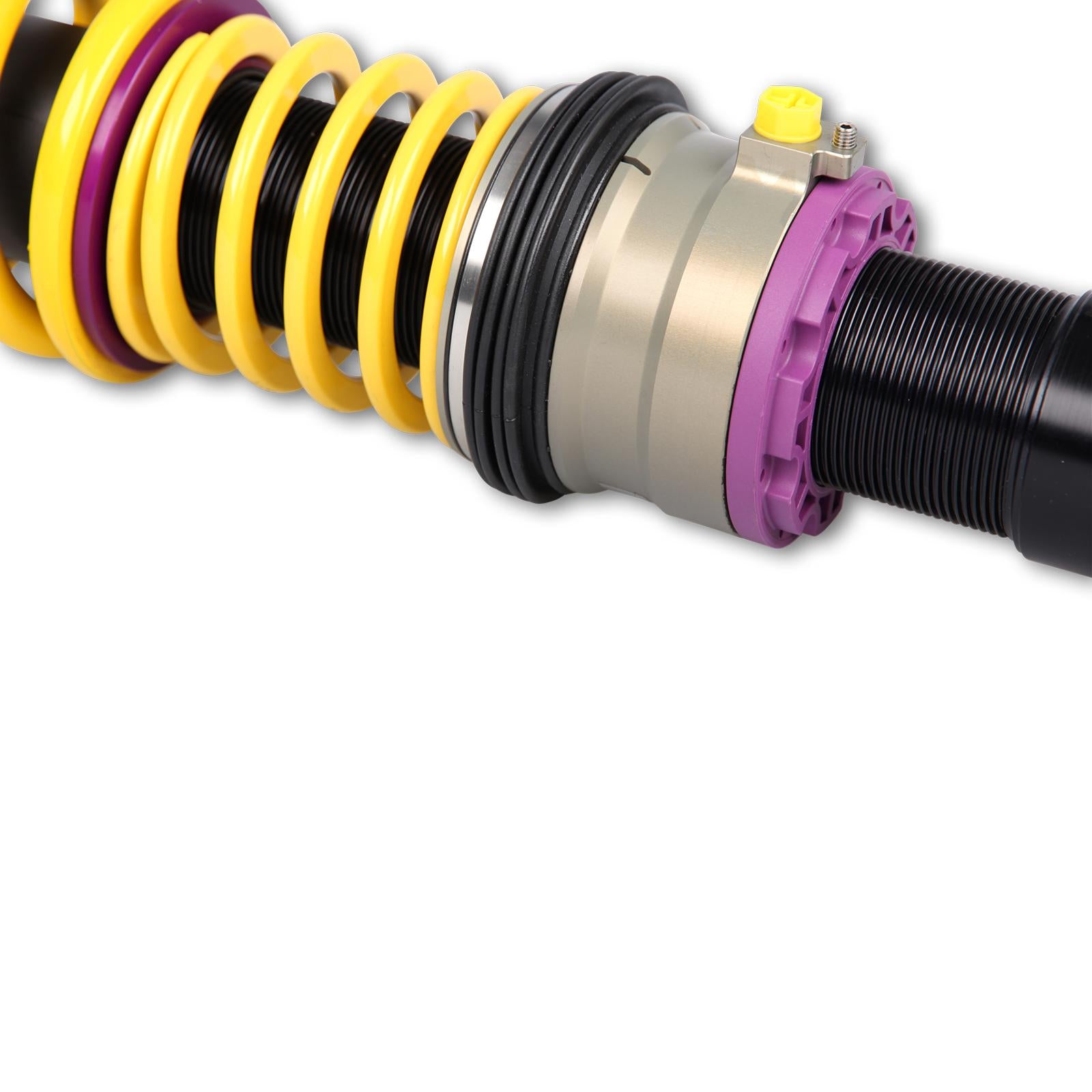

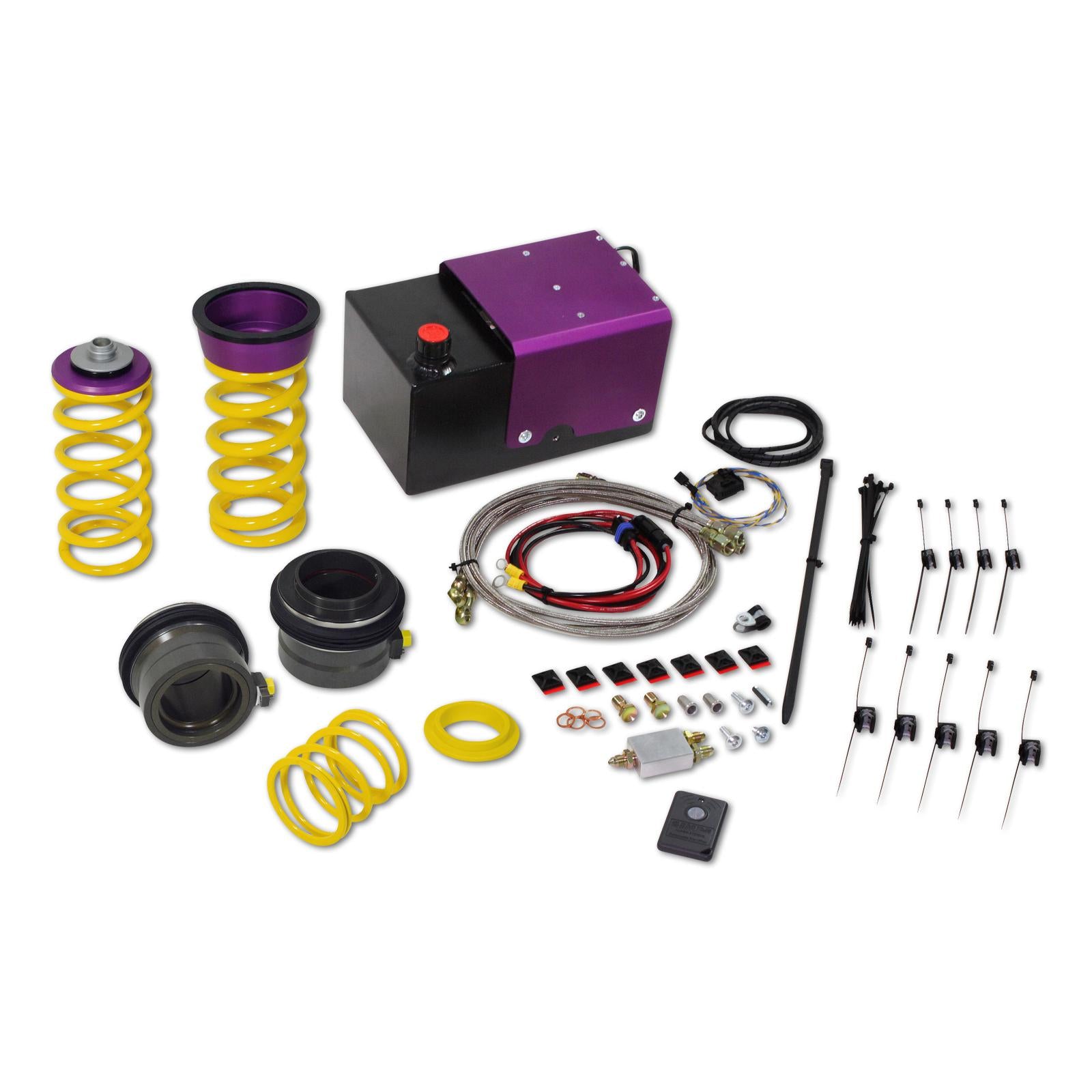

This kit combines a KW coilover suspension with KW's Hydraulic Lift System (HLS). At the push of a button the HLS raises the front axle (HLS 2) or both axles (HLS 4), depending on version, by up to 45 mm, helping the car clear speed humps, steep driveways and car park ramps without damage to splitters, underbody panels or the sump. Hydraulic lines and pump are matched to the vehicle. This kit is developed for the Ferrari 360 Modena / 360 Spider (F131) / 360 Challenge.
Key Features
- Hydraulic lift at the push of a button

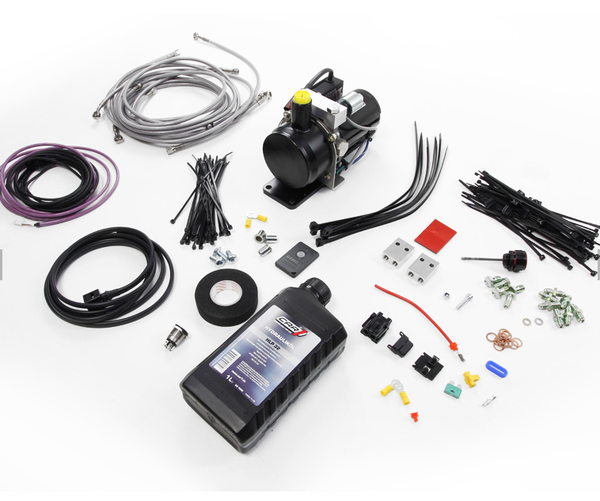

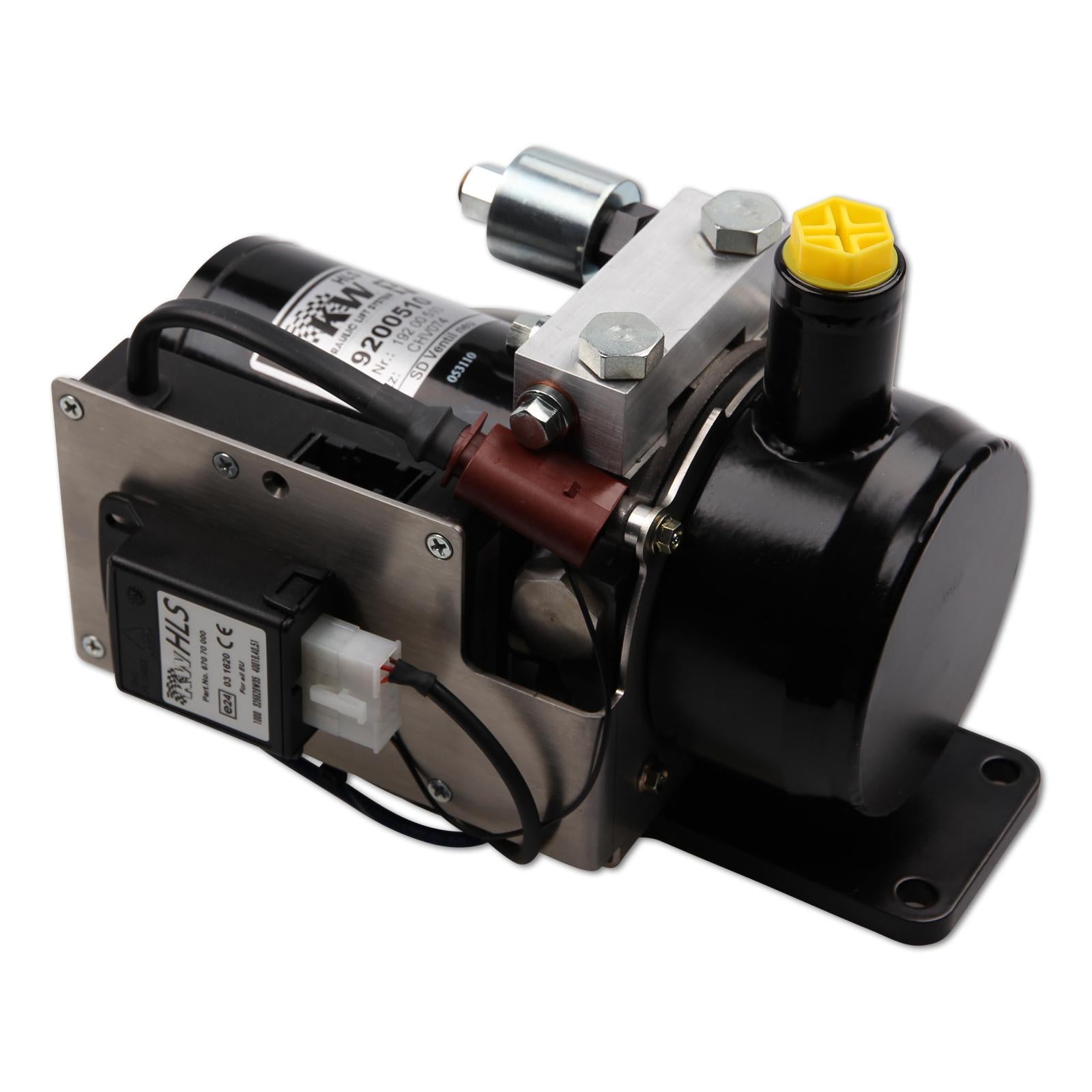

- Vehicle-specific hydraulic lines and pump
Specifications
- Version: HLS 2
- Lift axle(s): Front axle
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 10–35 mm
- Rear lowering: 10–35 mm
- Front axle load: up to 780 kg
- Rear axle load: up to 950 kg
Front axle load up to 780 kg; Rear axle load up to 950 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 1999–2005 | Ferrari | 360 (F131) | 3.6 Modena | Petrol · 294 kW · 3.6L · 8-cyl | Rear-Wheel Drive | 88 |
| 2000–2005 | Ferrari | 360 Spider (F131) | 3.6 | Petrol · 294 kW · 3.6L · 8-cyl | Rear-Wheel Drive | 88 |
| 1999–2005 | Ferrari | 360 (F131) | 3.6 Challenge | Petrol · 305 kW · 3.6L · 8-cyl | Rear-Wheel Drive | 88 |
| 1999–2005 | Ferrari | 360 (F131) | 3.6 Modena | Petrol · 316 kW · 3.6L · 8-cyl | Rear-Wheel Drive | 88 |
- Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
