• Height adjustable on the front and rear axles (threaded strut housings)
• If the Porsche Motorsport rear axle top mount # 99633301190 is installed, the KW top mount adapter set # 68510036, has to be used
• Dampers are adjusted by easily operating adjustment wheels, Rebound is only adjustable if the top of the piston rod is accessible, This will depend on the vehicle construction
• The battery has to be modified for vehicles with factory battery longer than 278 mm, We recommend Varta Silver Dynamic 77Ah or Bosch S5 77Ah (not included in the kit)

HLS 2

Hydraulic Lift System

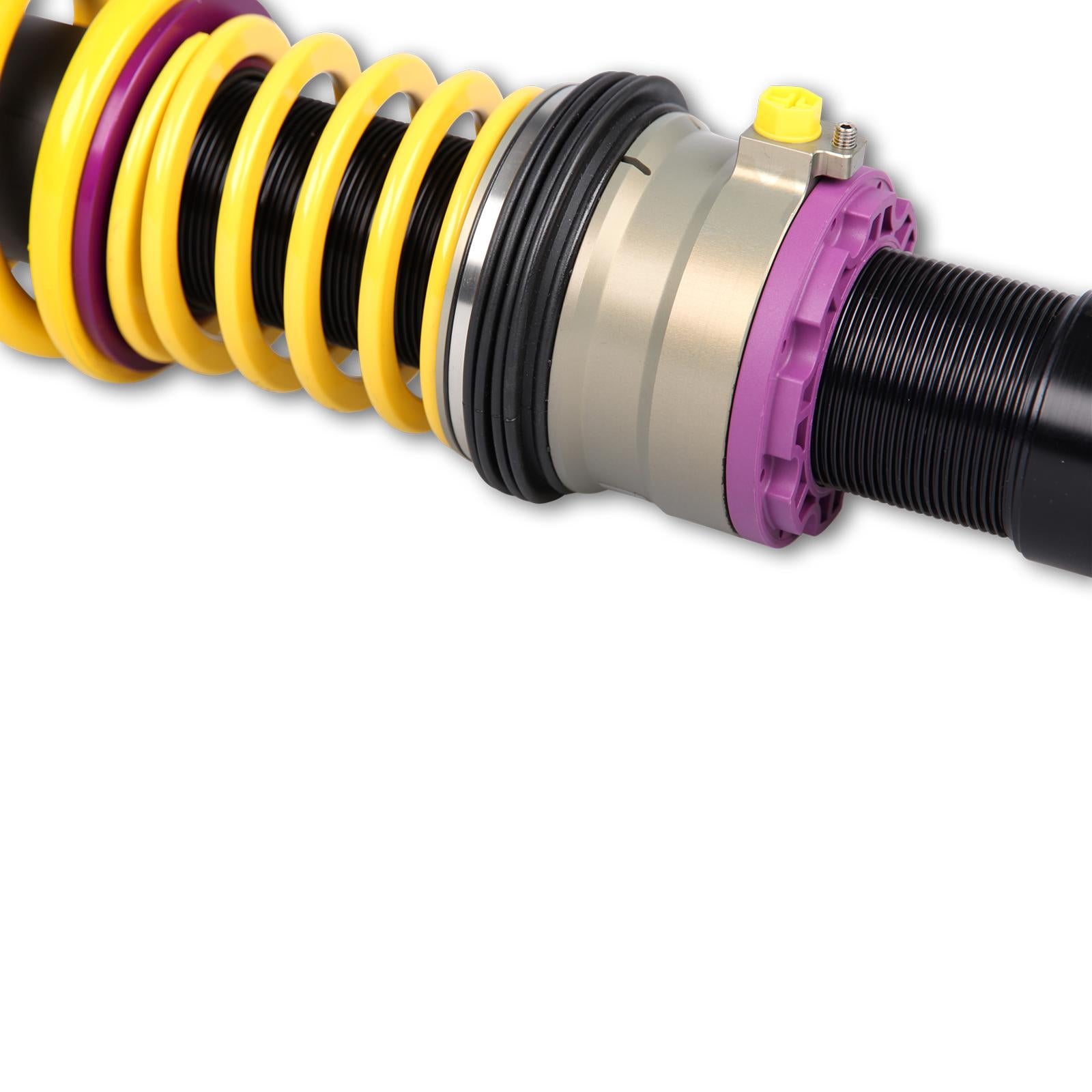

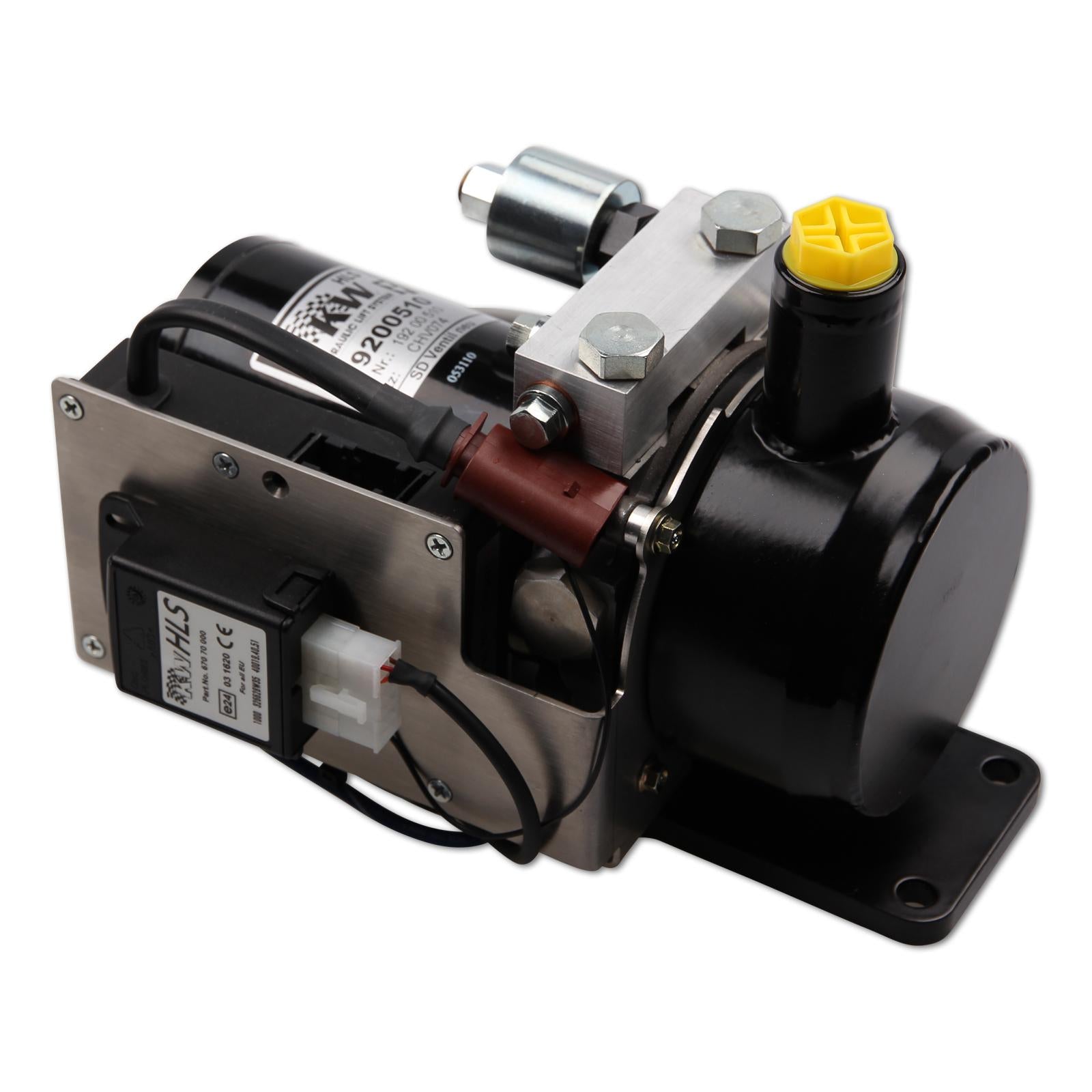

HLS is available in two configurations, HLS 2 which is fitted on the front axles only or HLS 4 which can be attached to the front and rear axles and allows lifting of the entire vehicle. The hydraulic cylinder unit is located on the coilover body between the spring perch and spring. This allows for a mechanical advantage as there is no compression of the extended cylinder unit resulting in no unwanted additional suspension movement while driving.

Allows cars with low ground clearance to clear obstacles more easily.

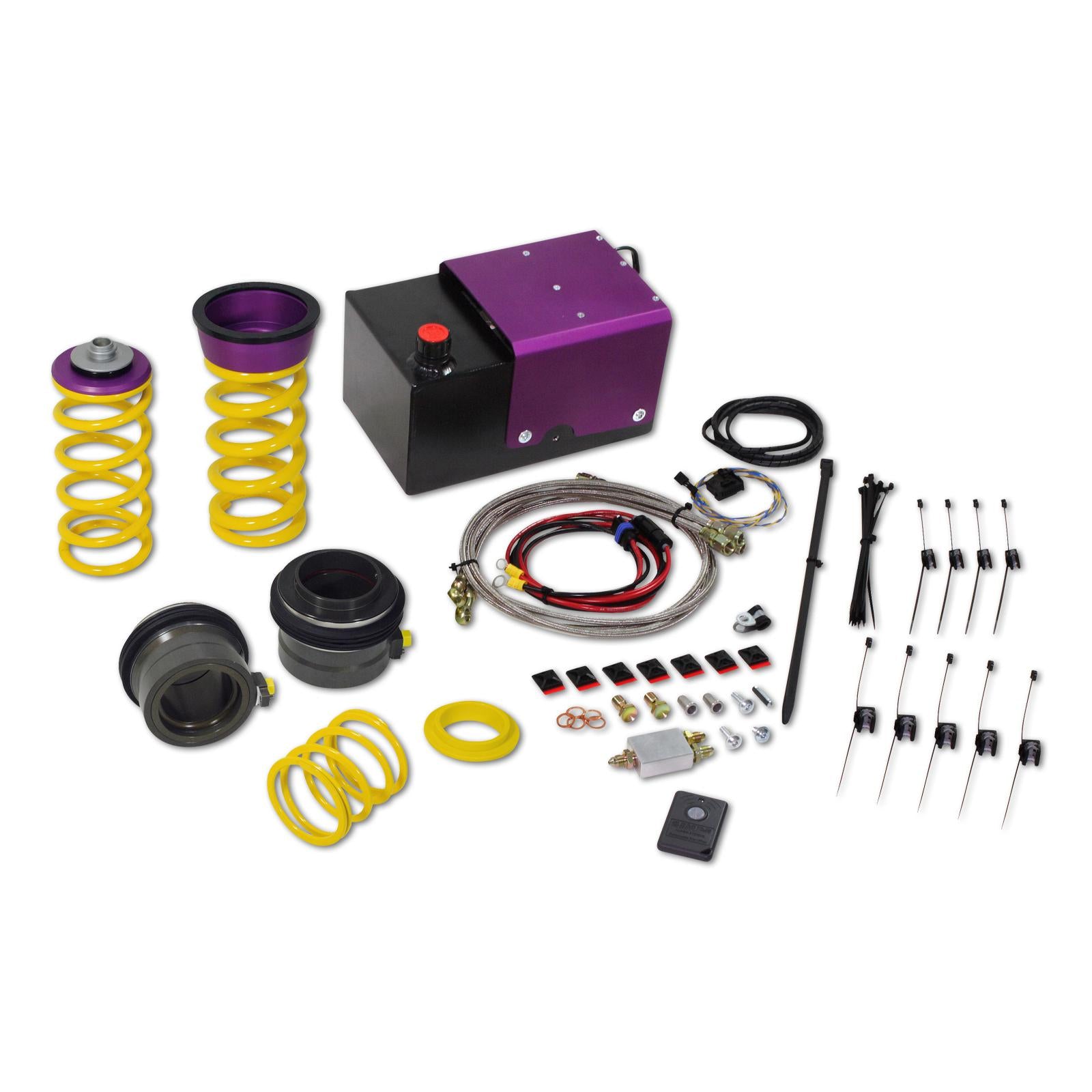

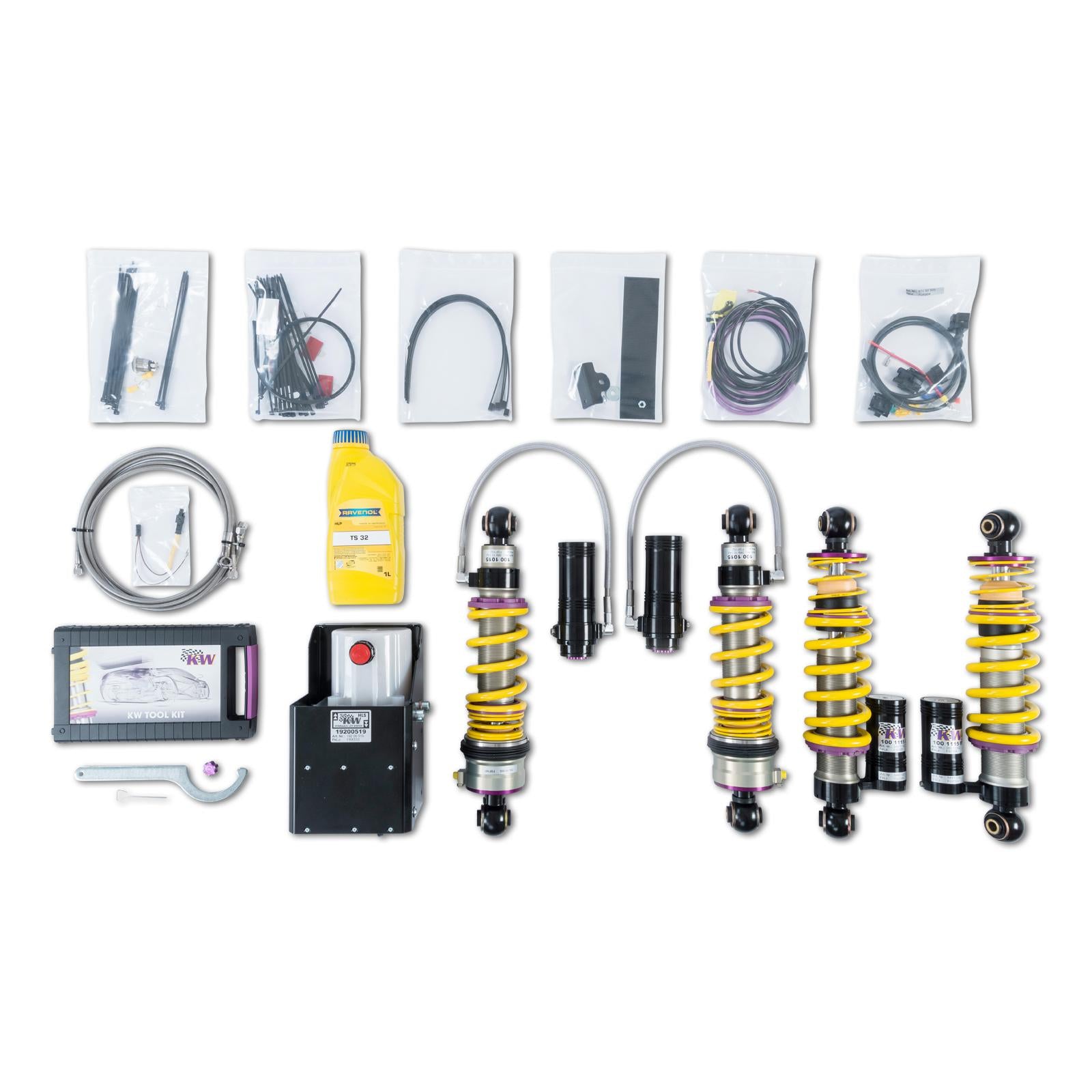

Available as a complete kit including coilovers or as a conversion for existing coilover kit owners.

Can be activated from inside the vehicle via a LED position control switch or by optional remote, eliminating any need to interior wiring.

Can be activated while driving (up to 50mph)

Fast lifting - Maximum lift in 5 seconds with HLS 2
