KW Coilover Kit V3 for VW (MK4) Golf GTI / Seat (1M) Leon Cupra R w/ HLS 4 Hydraulic Lift System
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for VW (MK4) Golf GTI / Seat (1M) Leon Cupra R w/ HLS 4 Hydraulic Lift System
Sale price$10,724.55
Regular price$11,289.00 (/)

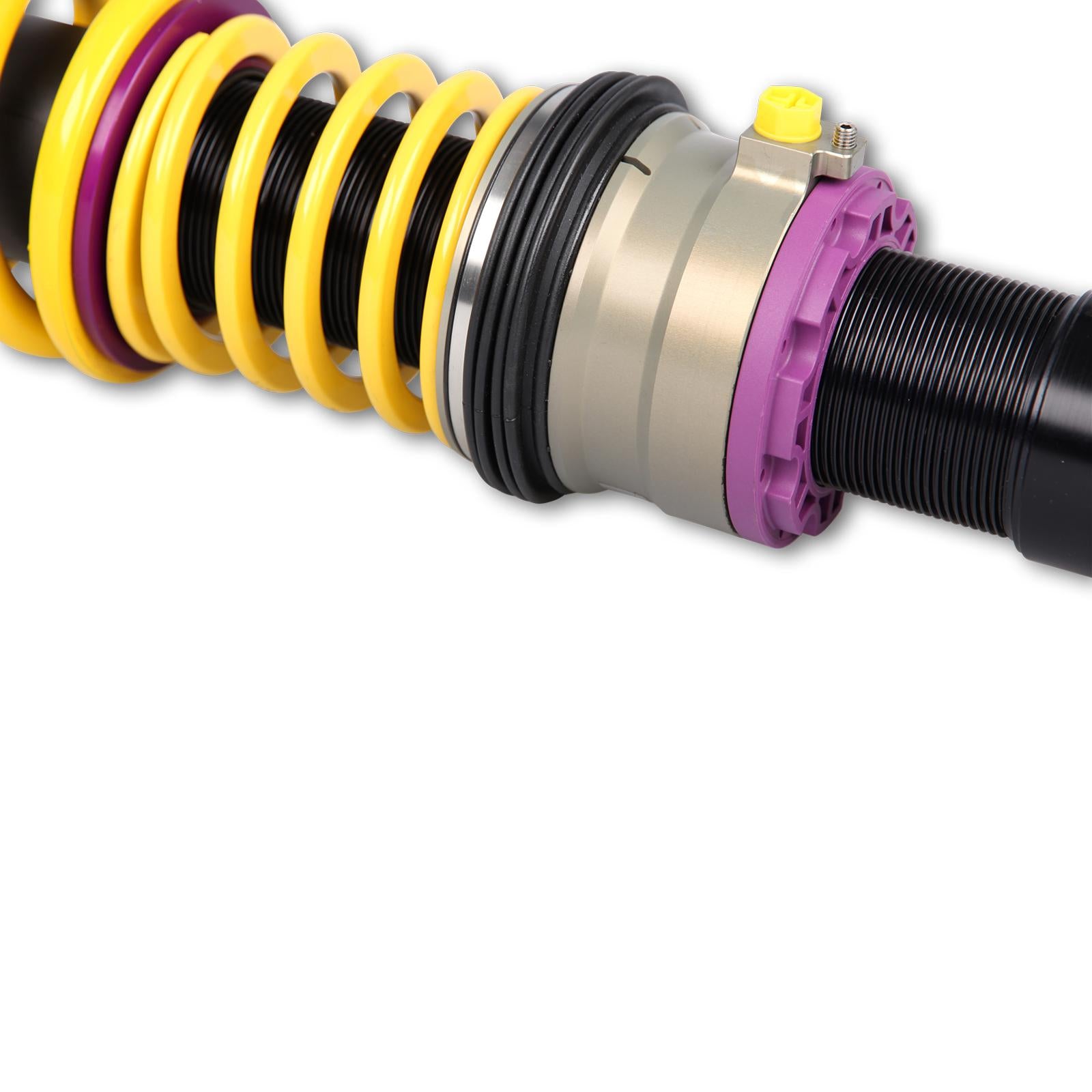

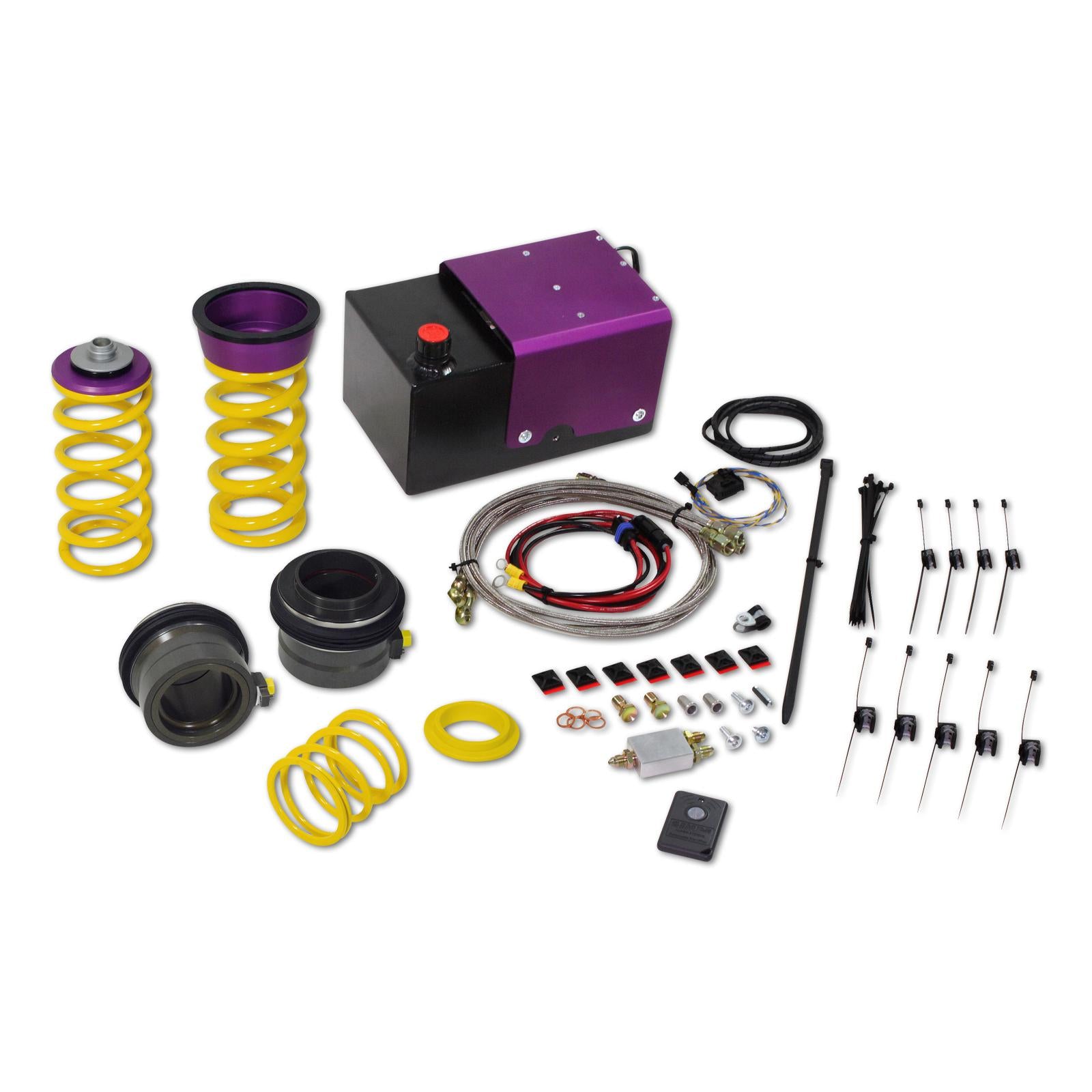

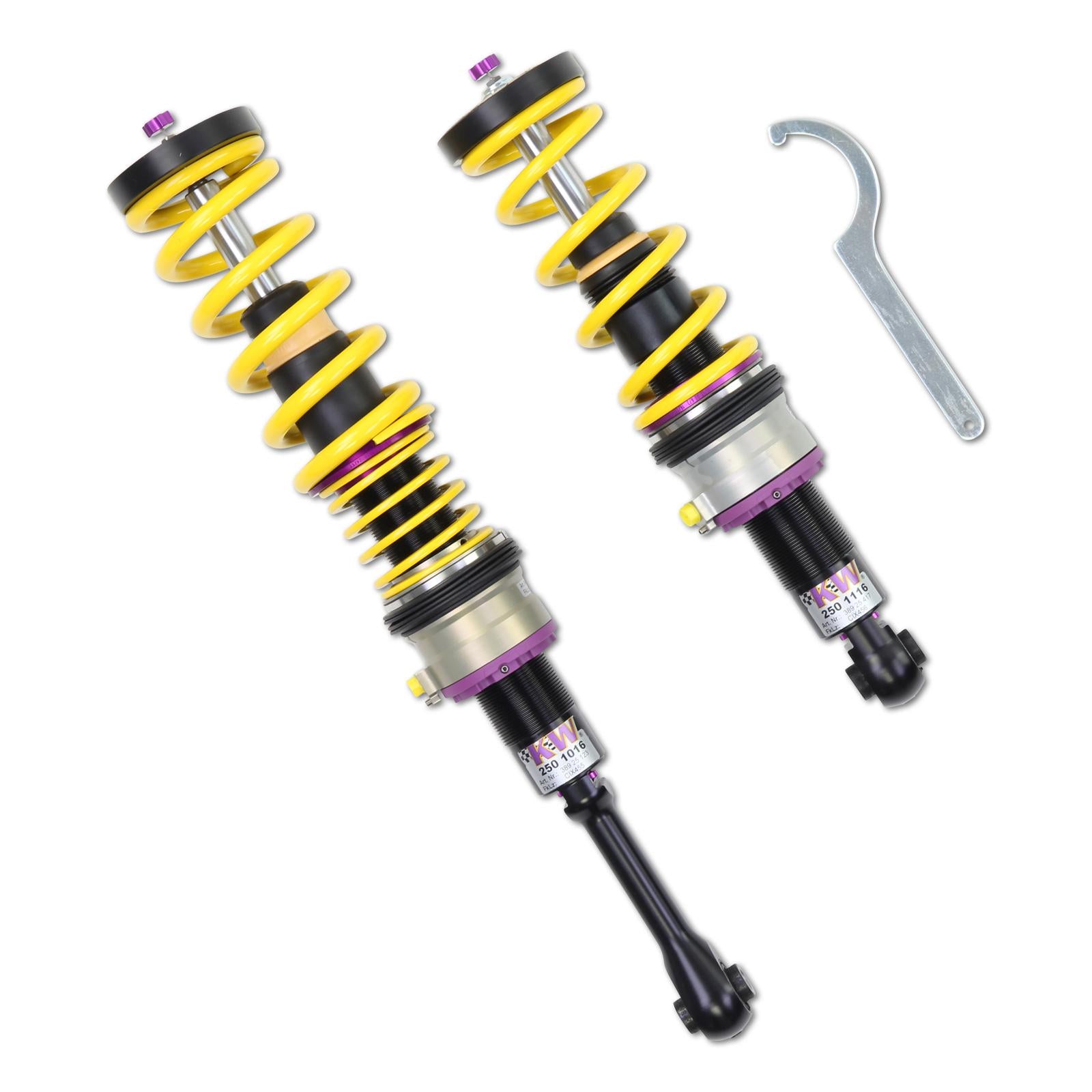

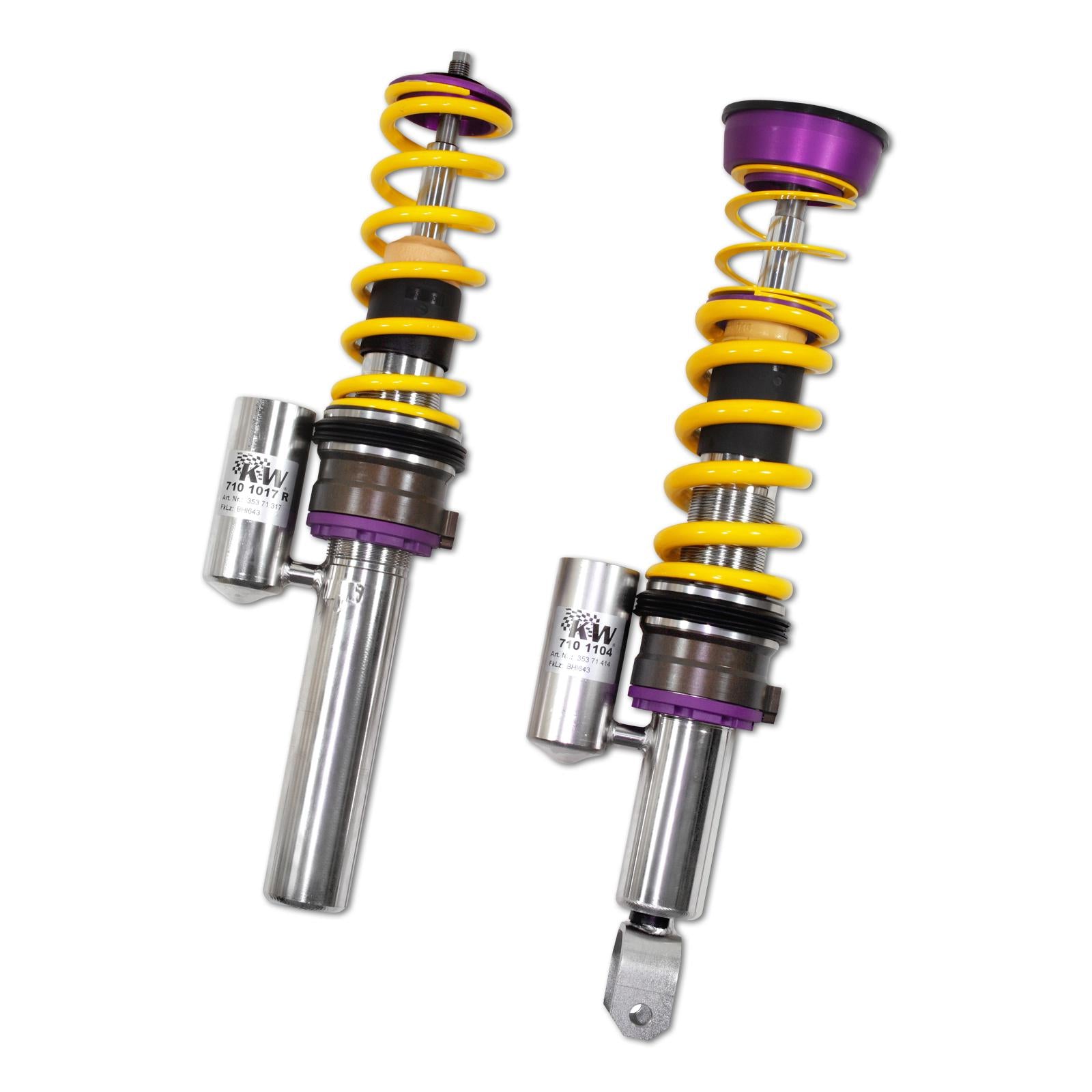

This kit combines a KW coilover suspension with KW's Hydraulic Lift System (HLS). At the push of a button the HLS raises the front axle (HLS 2) or both axles (HLS 4), depending on version, by up to 45 mm, helping the car clear speed humps, steep driveways and car park ramps without damage to splitters, underbody panels or the sump. Hydraulic lines and pump are matched to the vehicle. This kit is developed for the VW Golf GTI (MK4) / Seat Leon Cupra R (1M).
Key Features
- Hydraulic lift at the push of a button

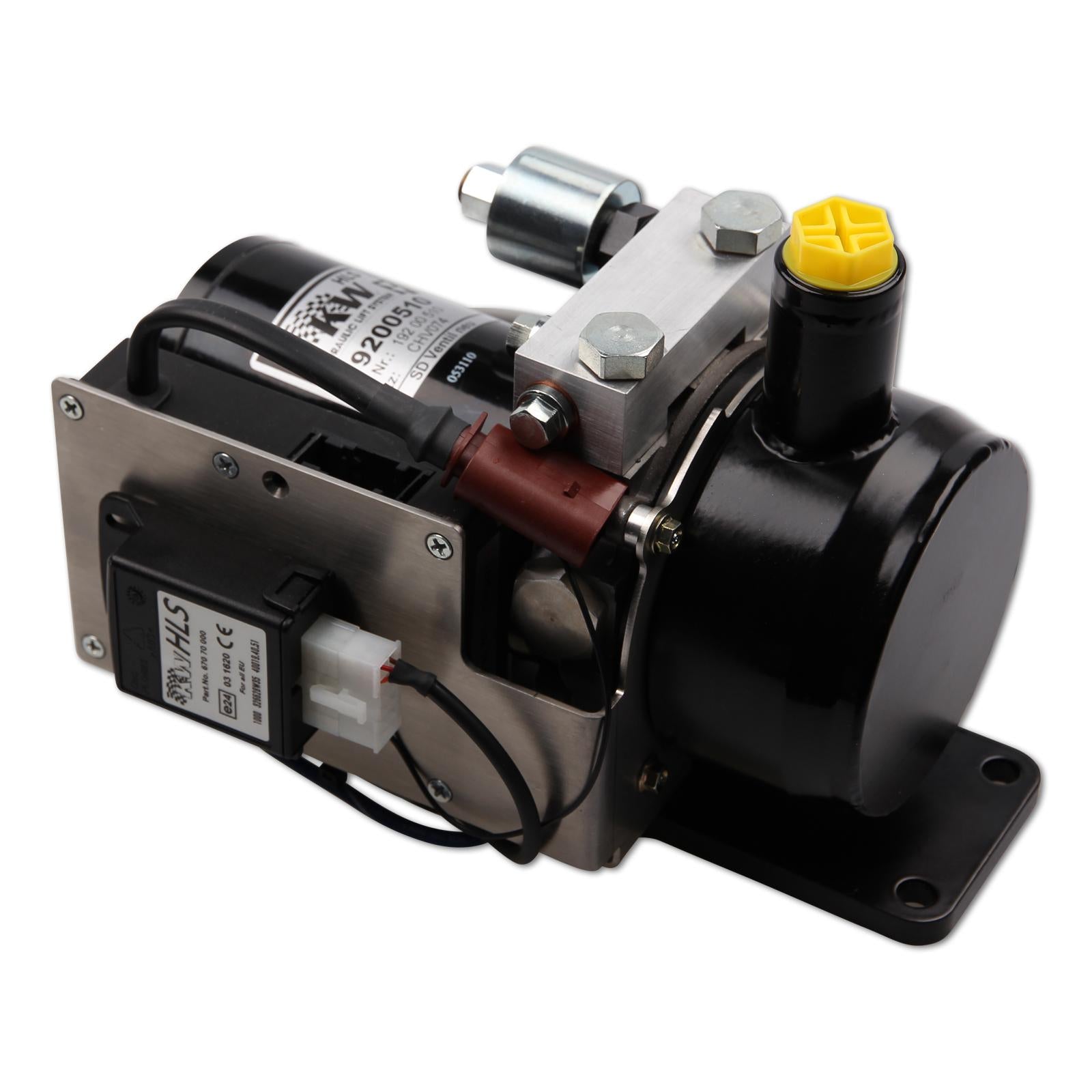

- Vehicle-specific hydraulic lines and pump
Specifications
- Version: HLS 4
- Lift axle(s): Front and rear axles
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 45–65 mm
- Rear lowering: 35–65 mm
- Front axle load: up to 1,020 kg
- Rear axle load: up to 1,020 kg

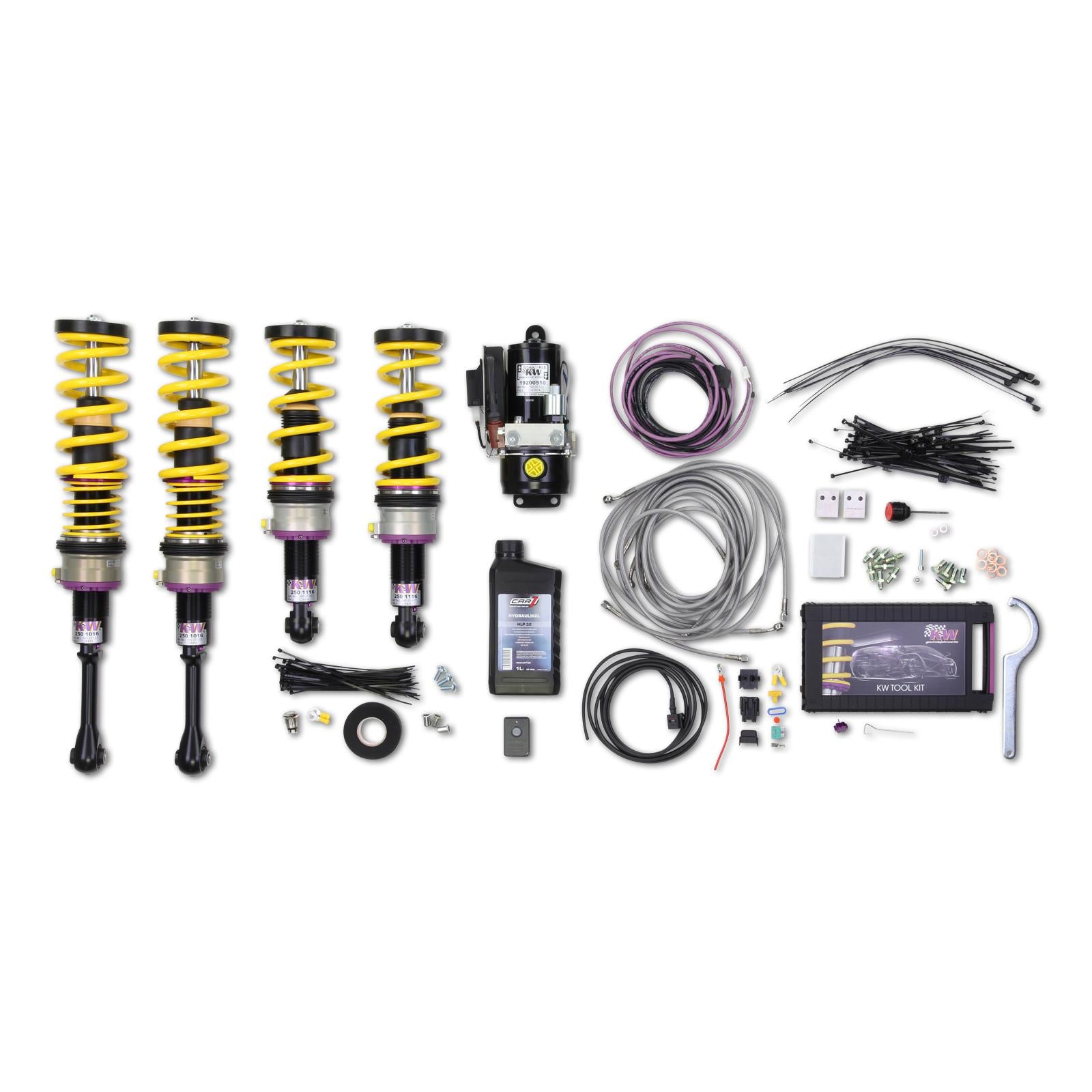

- Supplied as: Set (front + rear axle) with HLS 4
Front axle load up to 1,020 kg; Rear axle load up to 1,020 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 1997–2008 | VW | Golf IV (1J_) | 2.0 | Petrol · 85 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 85 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.6 | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.8 20V | Petrol · 92 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 81 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.8 20V T | Petrol · 132 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 SDI | Diesel · 50 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.6 16V | Petrol · 77 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 74 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 110 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.6 | Petrol · 75 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 2.3 V5 | Petrol · 125 kW · 2.3L · 5-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.6 16 V | Petrol · 77 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 110 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 96 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.8 T GTI | Petrol · 132 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.6 FSI | Petrol · 81 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.8 T Cupra R | Petrol · 154 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.8 T Cupra R | Petrol · 165 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 96 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.9 TDI | Diesel · 74 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.6 | Petrol · 74 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 2.8 | Petrol · 150 kW · 2.8L · 6-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1999–2006 | Seat | Leon (1M1) | 1.6 | Petrol · 75 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.8 | Petrol · 127 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 66 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 TDI | Diesel · 81 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.9 SDI | Diesel · 50 kW · 1.9L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.4 16V | Petrol · 55 kW · 1.4L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.8 | Petrol · 92 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 1.8 T | Petrol · 110 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
| 1997–2008 | VW | Golf IV (1J_) | 2.3 V5 | Petrol · 110 kW · 2.3L · 5-cyl | Front-Wheel Drive | 2, 6, 13, 39 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 6: When using original tyres, wheel offset spacers may be required.
- Note 13: The original anti-sway has to be rebuilt. KW Part No. Anti-sway bar see references 7.
- Note 39: For vehicles with a right drive shaft diameter of more than 42 mm, the maximum lowering tested (German technical inspection association) is reduced by 15 mm.
