ST Wheel Spacer System A2 30mm per Axle 5x114.3/60.1 for Toyota (GXPA16) GR Yaris

SKU: 56010436
Sale price$407.55 Regular price$429.00
Save $21.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

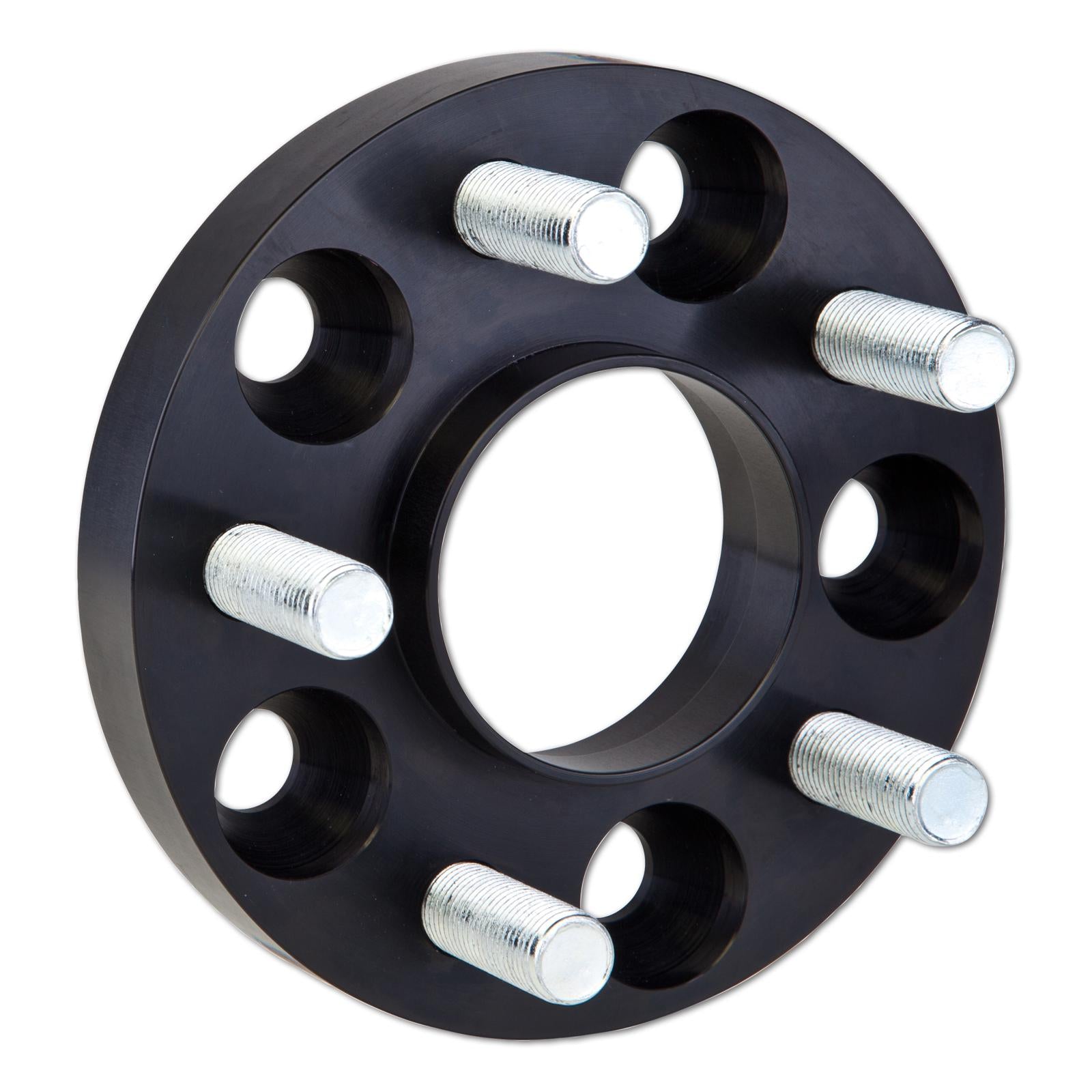

ST's A2 is a bolt-on wheel spacer system for vehicles with wheel studs. Pressed-in threaded studs are used; the spacer attaches to the hub with the supplied nuts, and the wheel is then fitted with the original wheel nuts. This part is listed for the Toyota GR Yaris (GXPA16).

Key Features

  • Pressed-in threaded studs
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 30 mm per axle (15 mm per wheel)
  • Bolt pattern (PCD): 5x114.3
  • Centre bore: 60.1 mm
  • Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel nuts, M12x1.5
  • Position: Front or rear axle
  • Material: Aluminium

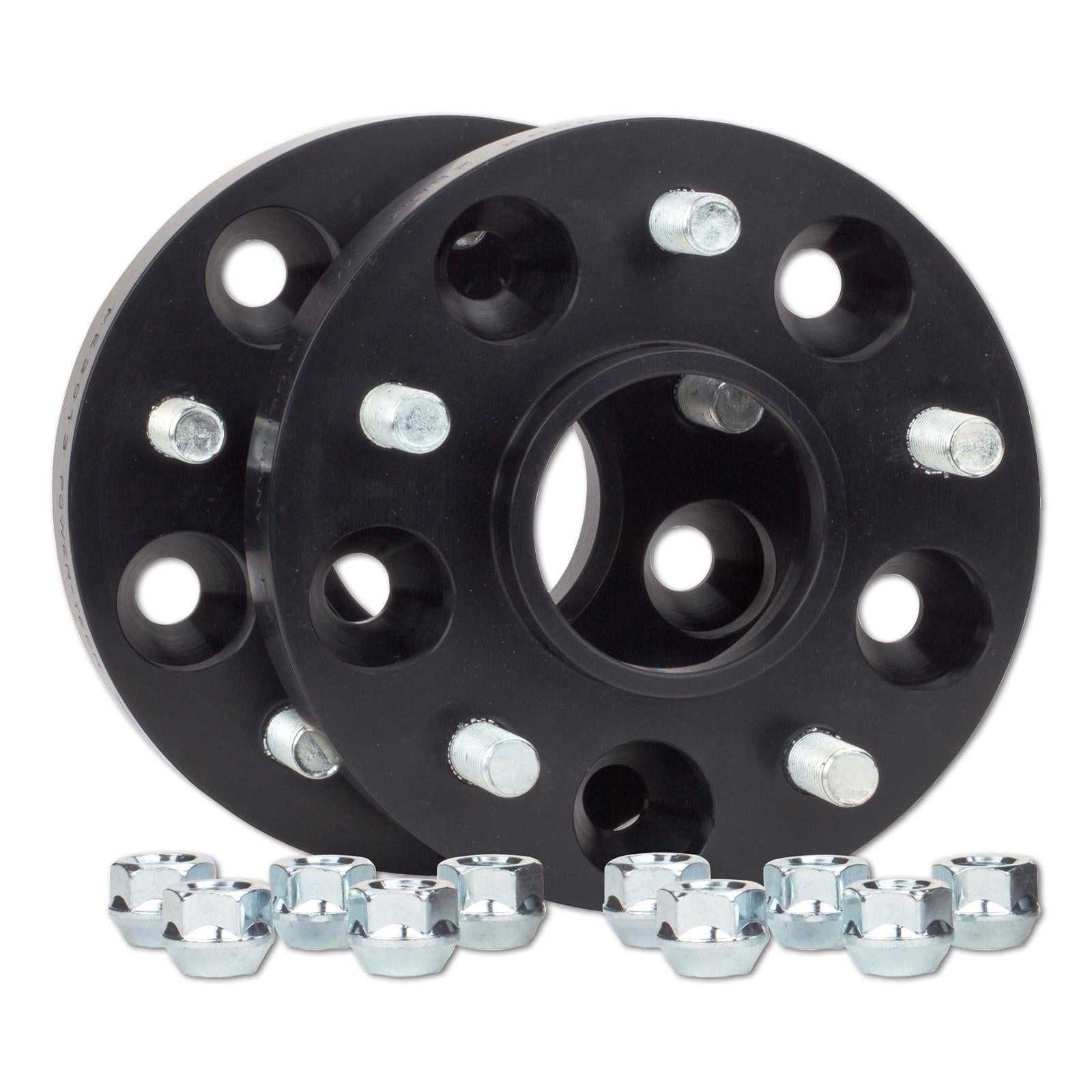

  • Supplied as: Set (2 pcs including wheel nuts)

References 317, 338. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x114.3
Hub bore60.1mm
Width per axle30mm
SystemA2
ThreadNut: M12x1.5 Flat seat, 21mm wrench size
Wheel offset limitFront 15 / Rear 10
MaterialAluminium
Supplied asSet (2 pcs. incl. wheel nuts)
  • Note 317: Attention: Installation only possible at rims with corresponding holes on the back. The depth of the pockets must be larger than the remaining length of the studs, which protrude from the wheel spacers after assembly.
