ST Wheel Spacer System A2 30mm per Axle 5x114.3/64.1 for Tesla Model 3/Y Performance
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System A2 30mm per Axle 5x114.3/64.1 for Tesla Model 3/Y Performance
Sale price$436.05
Regular price$459.00 (/)

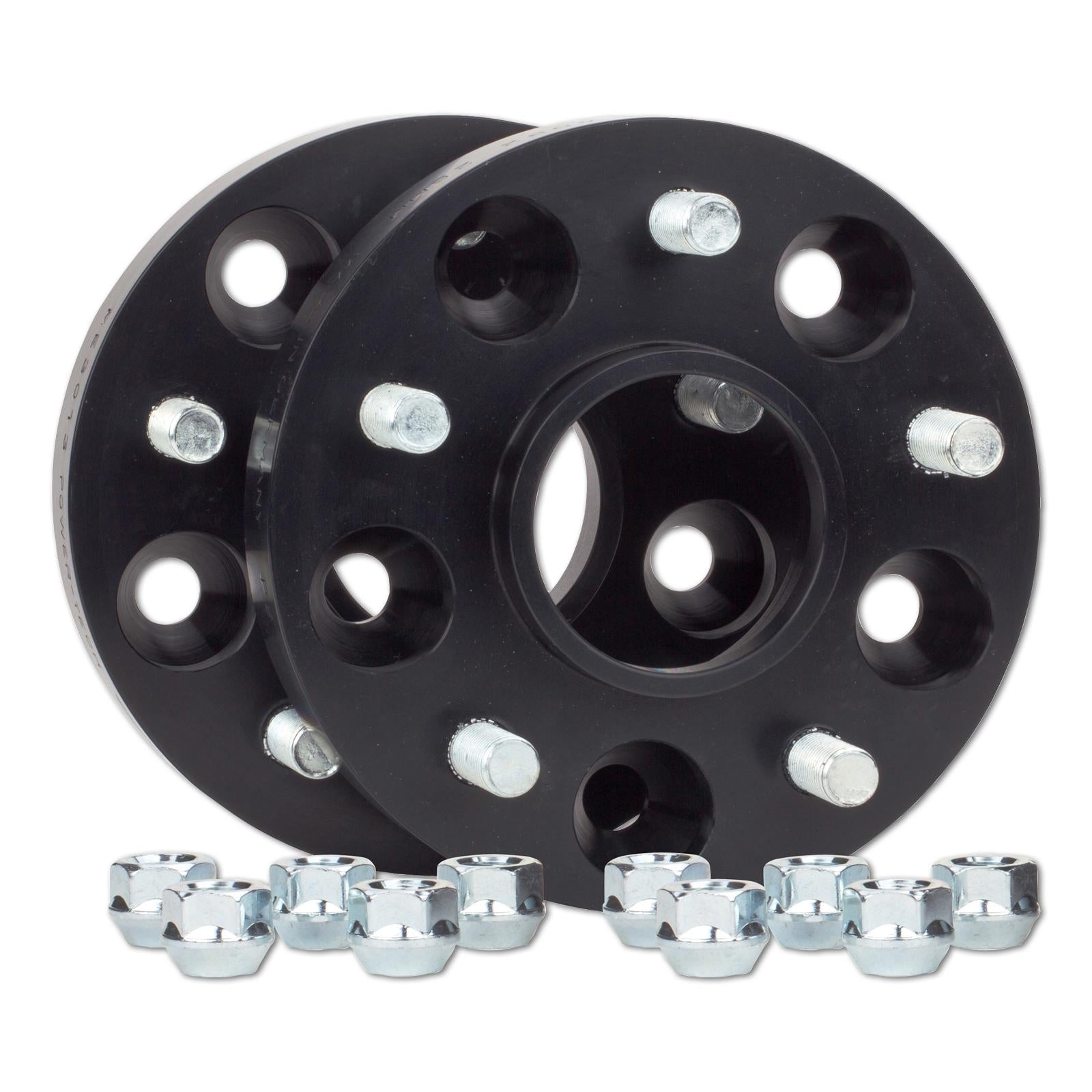

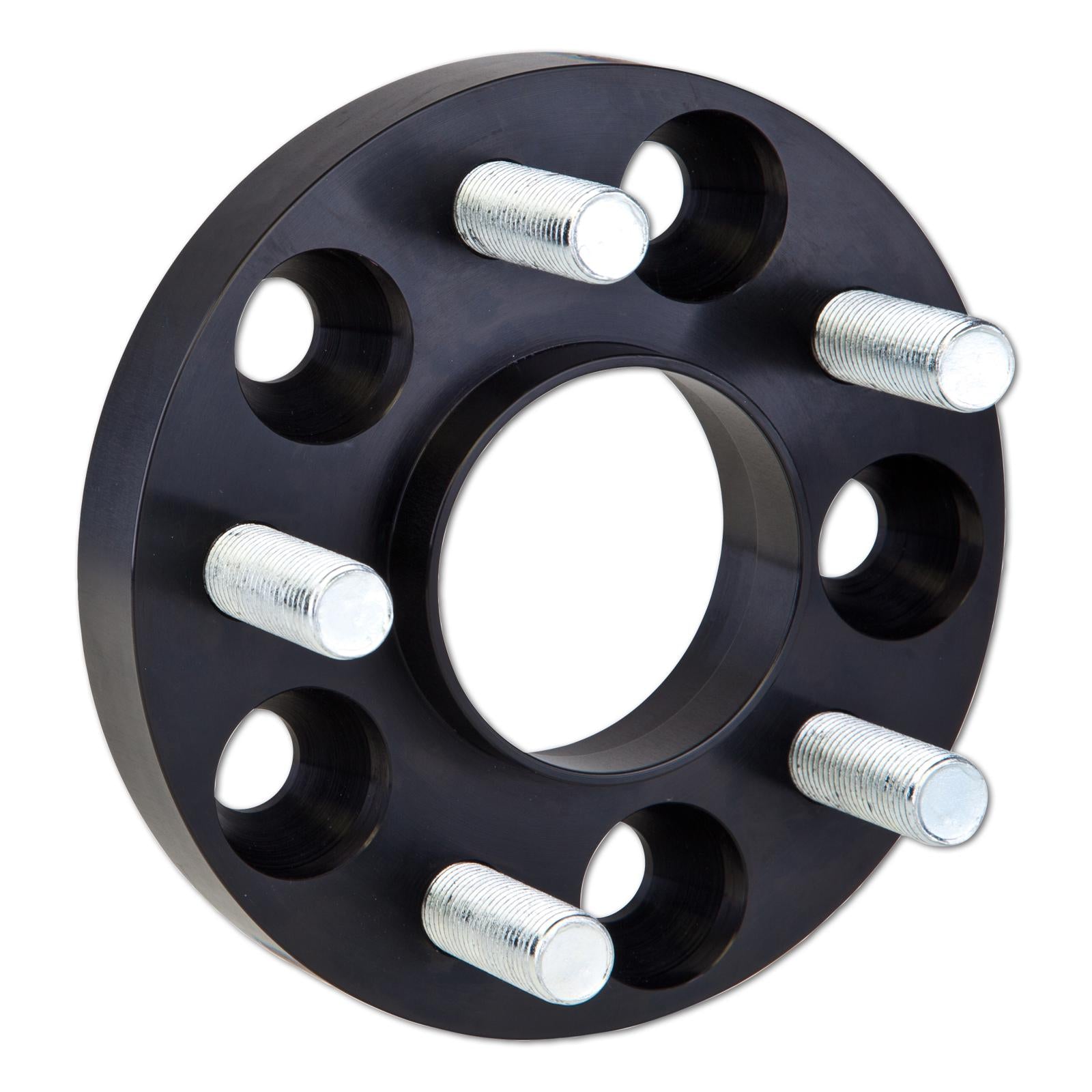

ST's A2 is a bolt-on wheel spacer system for vehicles with wheel studs. Pressed-in threaded studs are used; the spacer attaches to the hub with the supplied nuts, and the wheel is then fitted with the original wheel nuts. This part is listed for the Tesla Model 3/Y Performance.
Key Features
- Pressed-in threaded studs
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 30 mm per axle (15 mm per wheel)
- Bolt pattern (PCD): 5x114.3
- Centre bore: 64.1 mm
- Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel nuts, M14x1.5
- Position: Front or rear axle
- Material: Aluminium
- Supplied as: Set (2 pcs including wheel nuts and knurled bolts)
Standard-Plus|Long Range.
References 317, 336. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x114.3 |
|---|---|
| Hub bore | 64.1mm |
| Width per axle | 30mm |
| System | A2 |
| Thread | Nut: M14x1.5 Taper 60°, 21mm wrench size |
| Wheel offset limit | 12.5 (-20) |
| Material | Aluminium |
| Supplied as | Set (2 pcs. incl. wheel nuts and knurled bolts) |
- Note 317: Attention: Installation only possible at rims with corresponding holes on the back. The depth of the pockets must be larger than the remaining length of the studs, which protrude from the wheel spacers after assembly.
- Note 336: DANGER! If necessary, any protruding fastening screws, bolts or similar parts over the wheel contact surface must be removed and possibly replaced by other measures if these should prevent the contact surface for the spacer, but there are also no technical concerns.
