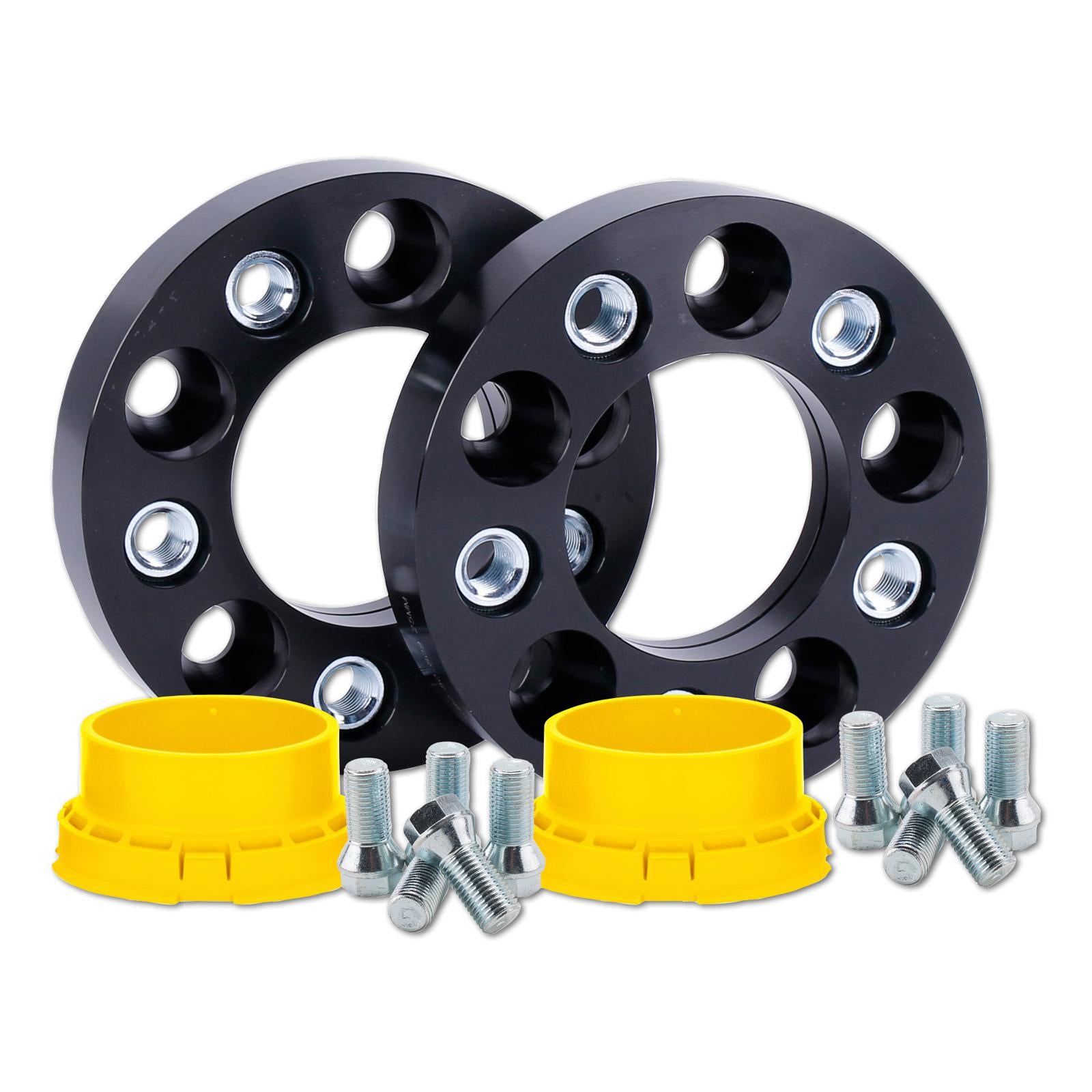

ST Wheel Spacer System AZX 40mm per Axle 5x108/63.4 - M14x1.5 Bolts
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST's AZX is a bolt-on wheel spacer system with plastic adapter rings for double centring, suiting vehicles with either wheel bolts or wheel studs. The spacer bolts to the hub with the supplied hardware, and the wheel then mounts to the spacer. Interchangeable adapter rings cover different hub centre bores.
Key Features
- Double centring via interchangeable adapter rings
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 40 mm per axle (20 mm per wheel)
- Bolt pattern (PCD): 5x108
- Centre bore: 63.4 mm
- Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel bolts, M14x1.5
- Position: Front or rear axle
- Material: Aluminium with composite adapters
- Supplied as: 2 spacer discs, 2 adapters
ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.| Only permitted with an axle load of up to max. 1470kg.
NOT in combination with steel wheels.
References 311, 329. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x108 |
|---|---|
| Hub bore | 63.4mm |
| Width per axle | 40mm |
| System | AZX |
| Thread | Bolt: M14x1.5x33 Taper 60° loose, 17mm wrench size |
| Wheel offset limit | 34 |
| Material | Aluminium, composite material |
| Supplied as | 2 spacer discs, 2 adapters |
- Note 311: NOT in combination with steel wheels.
- Note 329: Please consider the maximum total offset and all mentioned notes and restrictions in the certificate. The total offset is the result of the difference of the offset at the used wheel and the thickness of the wheel spacers (for example rim offset+35mm & wheel spacers 15mm = total offset +20mm).
