ST Wheel Spacer System AZX 40mm Axle 5x114.3
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.
ST Wheel Spacer System AZX 40mm Axle 5x114.3
Sale price$419.00
Regular price (/)
Description
- ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.
Wheel Spacer System AZX 40mm Axle 5x114,3
System - AZX
25, 30 or 35 mm per wheel
Screw on system with plastic adapter rings for a double centering for vehicles with wheel bolts AND wheel studs. By the double centering, the system guarantees an optimal run. With replaceable plastic adapter rings, different hub centerings can be covered. The wheel spacer has to be attached to the wheel hub by the included mounting material. For vehicles with studs, the ST double threaded studs are used to mount the rim with the original nuts on the wheel spacers. For vehicles with wheel bolts, M14x1,5 screws are used to mount the rim on the wheel spacer. By using ST double threaded studs, also a refitting from wheel bolts to studs is possible.

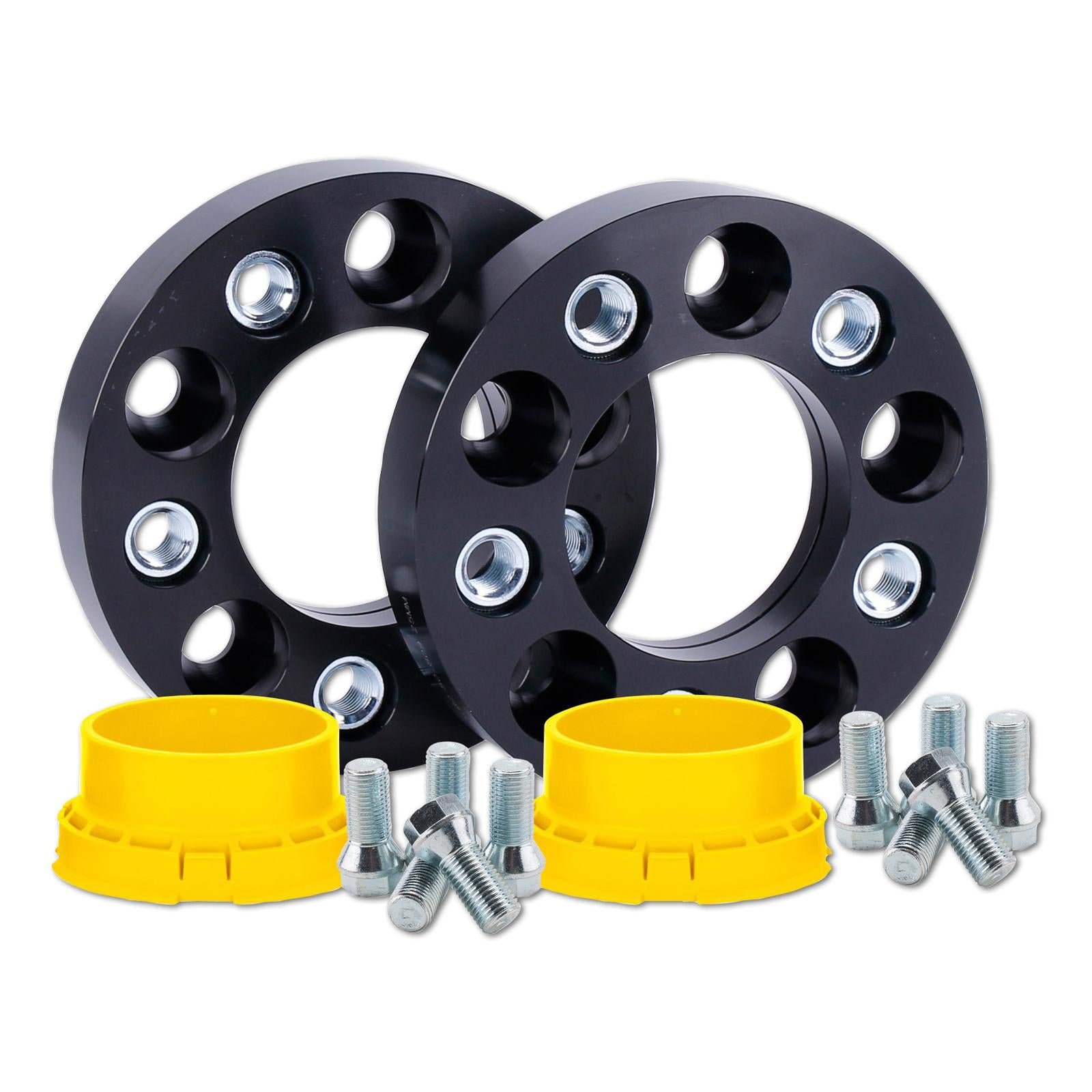

- Delivery content: 2 wheel spacers System AZX, 2 adapter rings System AZX, including mounting material
- Made of high quality aluminum
- Black anodized for perfect corrosion protection
- Dynamical performance of the vehicle / perfect appearance
- Improved driving dynamics by larger track width
- Retrofitting from wheel bolts to wheel studs possible by the double threaded studs
Product Disclaimers:
- Note 321: For system AZX ST threaded bolts have to be ordered separately. The thread of the ST threaded bolts has to be similar to the one of the original knurled studs
- Note 317: Attention: Installation only possible at rims with corresponding holes on the back. The depth of the pockets must be larger than the remaining length of the studs, which protrude from the wheel spacers after assembly
Fitments
| Make | Model | Type | Body Type | Aspiration | KW | CCM | Cyl | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| CHRYSLER | 300 M (LR) 07/1998-09/2004 | 2.7 V6 24V | Saloon | Petrol | 149 | 2736 | 6 | Front Wheel Drive |
| CHRYSLER | 300 M (LR) 07/1998-09/2004 | 2.7 V6 24V | Saloon | Petrol | 150 | 2736 | 6 | Front Wheel Drive |
| CHRYSLER | 300 M (LR) 07/1998-09/2004 | 3.5 V6 24V | Saloon | Petrol | 185 | 3518 | 6 | Front Wheel Drive |
| CHRYSLER | 300 M (LR) 07/1998-09/2004 | 3.5 V6 24V | Saloon | Petrol | 187 | 3518 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 2.8 CRD | MPV | Diesel | 120 | 2768 | 4 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 2.8 CRD | MPV | Diesel | 120 | 2777 | 4 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 2.8 CRD | MPV | Diesel | 133 | 2777 | 4 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 3.3 | MPV | Petrol | 125 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 3.3 | MPV | Petrol | 130 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 3.3 Flexfuel | MPV | Petrol/Ethanol | 130 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 3.6 | MPV | Petrol | 208 | 3604 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 3.6 | MPV | Petrol | 211 | 3604 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 3.6 Flexfuel | MPV | Petrol/Ethanol | 211 | 3604 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 3.8 | MPV | Petrol | 142 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 3.8 | MPV | Petrol | 147 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 3.8 | MPV | Petrol | 148 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 4.0 | MPV | Petrol | 179 | 3952 | 6 | Front Wheel Drive |
| CHRYSLER | GRAND VOYAGER V (RT) 10/2007- | 4.0 | MPV | Petrol | 187 | 3952 | 6 | Front Wheel Drive |
| CHRYSLER | NEW YORKER (LH) 01/1992-09/1998 | 3.5 | Saloon | Petrol | 160 | 3518 | 6 | Front Wheel Drive |
| CHRYSLER | NEW YORKER (LH) 01/1992-09/1998 | 3.5 i 24V | Saloon | Petrol | 155 | 3518 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 2.0 i | MPV | Petrol | 98 | 1995 | 4 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 2.4 AWD | MPV | Petrol | 111 | 2429 | 4 | All-wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 2.4 i | MPV | Petrol | 111 | 2429 | 4 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 2.5 TD | MPV | Diesel | 85 | 2499 | 4 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 2.5 TDiC AWD | MPV | Diesel | 85 | 2499 | 4 | All-wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.0 | MPV | Petrol | 112 | 2972 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.3 | MPV | Petrol | 118 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.3 AWD | MPV | Petrol | 118 | 3301 | 6 | All-wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.3 Flexfuel | MPV | Petrol/Ethanol | 118 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.3 Flexfuel | MPV | Petrol | 134 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.3 Flexfuel AWD | MPV | Petrol/Ethanol | 118 | 3301 | 6 | All-wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.3 i | MPV | Petrol | 116 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.3 i | MPV | Petrol | 134 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.8 | MPV | Petrol | 121 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.8 | MPV | Petrol | 122 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.8 | MPV | Petrol | 124 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.8 | MPV | Petrol | 131 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.8 | MPV | Petrol | 134 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.8 AWD | MPV | Petrol | 124 | 3778 | 6 | All-wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.8 AWD | MPV | Petrol | 134 | 3778 | 6 | All-wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.8 i AWD | MPV | Petrol | 122 | 3778 | 6 | All-wheel Drive |
| CHRYSLER | TACUMA Mk II (GS) 01/1995-03/2001 | 3.8 i AWD | MPV | Petrol | 131 | 3778 | 6 | All-wheel Drive |
| CHRYSLER | VISION (LH) 09/1993-12/1997 | 3.5 TSi | Saloon | Petrol | 155 | 3518 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Ã (AS) 08/1984-09/1990 | 2.5 | MPV | Petrol | 72 | 2501 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER Ã (AS) 08/1984-09/1990 | 3.0 | MPV | Petrol | 100 | 2972 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Ã (AS) 08/1984-09/1990 | 3.0 | MPV | Petrol | 101 | 2972 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Ã (AS) 08/1984-09/1990 | 3.3 | MPV | Petrol | 112 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 2.5 i | MPV | Petrol | 72 | 2501 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 2.5 i | MPV | Petrol | 74 | 2501 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 2.5 TD | MPV | Diesel | 85 | 2499 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 2.5 TD | MPV | Diesel | 87 | 2500 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.0 | MPV | Petrol | 104 | 2972 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.0 i | MPV | Petrol | 108 | 2972 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.3 | MPV | Petrol | 112 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.3 AWD | MPV | Petrol | 112 | 3301 | 6 | All-wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.3 i | MPV | Petrol | 110 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.3 i | MPV | Petrol | 120 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.3 i AWD | MPV | Petrol | 110 | 3301 | 6 | All-wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.3 i AWD | MPV | Petrol | 120 | 3301 | 6 | All-wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.8 | MPV | Petrol | 121 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER II (ES) 08/1990-09/1995 | 3.8 AWD | MPV | Petrol | 121 | 3778 | 6 | All-wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 2.4 | MPV | Petrol | 108 | 2429 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 2.4 | MPV | Petrol | 111 | 2429 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 2.5 CRD | MPV | Diesel | 88 | 2499 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 2.5 CRD | MPV | Diesel | 105 | 2499 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 2.8 CRD | MPV | Diesel | 110 | 2776 | 4 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.0 | MPV | Petrol | 112 | 2972 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 | MPV | Petrol | 127 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 | MPV | Petrol | 128 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 | MPV | Petrol | 131 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 | MPV | Petrol | 134 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 AWD | MPV | Petrol | 128 | 3301 | 6 | All-wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 AWD | MPV | Petrol | 134 | 3301 | 6 | All-wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 Flexfuel | MPV | Petrol/Ethanol | 127 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 Flexfuel | MPV | Petrol/Ethanol | 132 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 Flexfuel | MPV | Petrol/Ethanol | 134 | 3301 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.3 Flexfuel AWD | MPV | Petrol/Ethanol | 134 | 3301 | 6 | All-wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.8 | MPV | Petrol | 149 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.8 | MPV | Petrol | 154 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.8 | MPV | Petrol | 160 | 3778 | 6 | Front Wheel Drive |
| CHRYSLER | VOYAGER Mk III (RG, RS) 09/1999-12/2008 | 3.8 AWD | MPV | Petrol | 160 | 3778 | 6 | All-wheel Drive |
