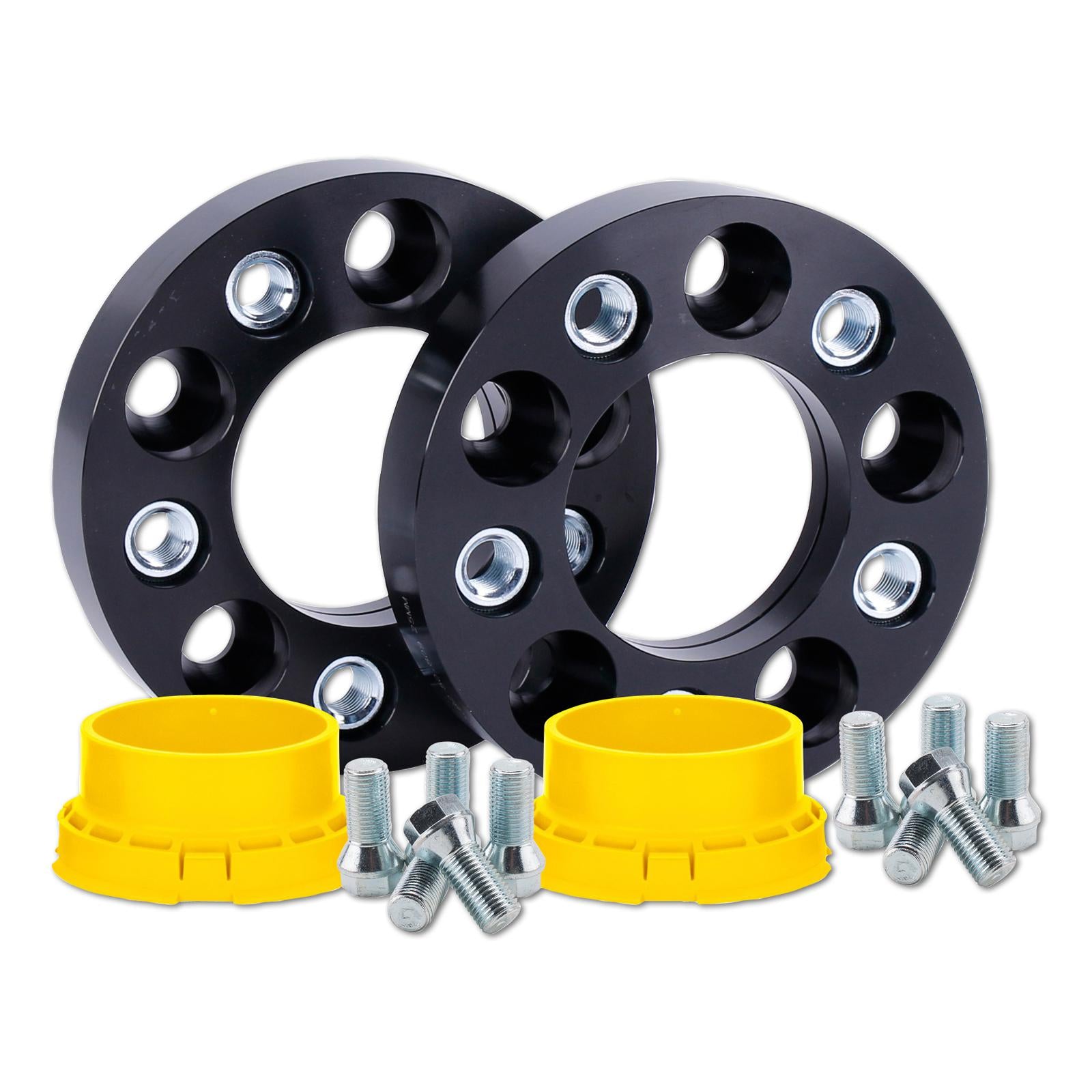

ST Wheel Spacer System AZX 40mm per Axle 5x120/72.6 - M12x1.5

SKU: 56060920
Sale price$398.05 Regular price$419.00
Save $20.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's AZX is a bolt-on wheel spacer system with plastic adapter rings for double centring, suiting vehicles with either wheel bolts or wheel studs. The spacer bolts to the hub with the supplied hardware, and the wheel then mounts to the spacer. Interchangeable adapter rings cover different hub centre bores.

Key Features

  • Double centring via interchangeable adapter rings
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 40 mm per axle (20 mm per wheel)
  • Bolt pattern (PCD): 5x120
  • Centre bore: 72.6 mm
  • Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel bolts, M12x1.5
  • Position: Front or rear axle
  • Material: Aluminium with composite adapters
  • Supplied as: 2 spacer discs, 2 adapters
Note For vehicles with a wheel thread other than M14x1.5, double-threaded studs or wheel bolts are ordered separately.

ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.

NOT in combination with steel wheels.

References 311, 319. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x120
Hub bore72.6mm
Width per axle40mm
SystemAZX
ThreadBolt: M12x1.5x25 Taper 60°, 17mm wrench size
Wheel offset limit5
MaterialAluminium, composite material
Supplied as2 spacer discs, 2 adapters
  • Note 311: NOT in combination with steel wheels.
  • Note 319: M14x1.5 bolts must be used to mount the wheel on the AZX-wheel spacer. Seat and shaft length of the bolts must match the actual used wheel bolts. Applies only to system AZX.
