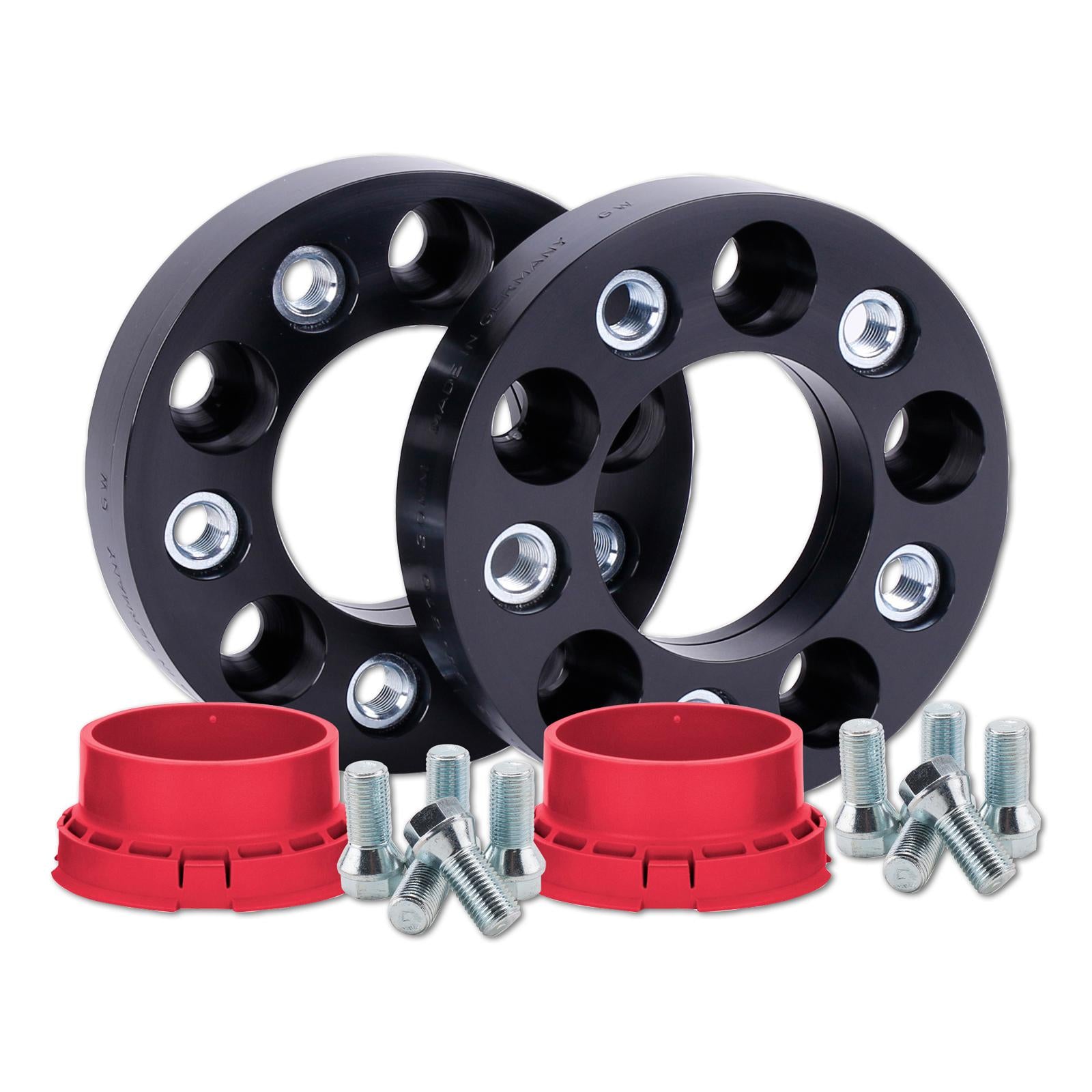

ST Wheel Spacer System AZX 50mm per Axle 5x114.3 for Ford (U2) Explorer

SKU: 56060487
Sale price$407.55 Regular price$429.00
Save $21.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's AZX is a bolt-on wheel spacer system with plastic adapter rings for double centring, suiting vehicles with either wheel bolts or wheel studs. The spacer bolts to the hub with the supplied hardware, and the wheel then mounts to the spacer. Interchangeable adapter rings cover different hub centre bores. This part is listed for the Ford Explorer (U2).

Key Features

  • Double centring via interchangeable adapter rings
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 50 mm per axle (25 mm per wheel)
  • Bolt pattern (PCD): 5x114.3
  • Centre bore: 70.6 mm
  • Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel nuts, 1/2" UNF
  • Position: Rear axle
  • Material: Aluminium with composite adapters
  • Supplied as: 2 spacer discs, 2 adapters
Note For vehicles with a wheel thread other than M14x1.5, double-threaded studs or wheel bolts are ordered separately.

ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.

NOT in combination with steel wheels.

References 311, 321. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x114.3
Hub bore70.6mm
Width per axle50mm
SystemAZX
Thread1/2" UNF
MaterialAluminium, composite material
Supplied as2 spacer discs, 2 adapters
  • Note 311: NOT in combination with steel wheels.
  • Note 321: For system AZX ST threaded bolts have to be ordered separately. The thread of the ST threaded bolts has to be similar to the one of the original knurled studs.
