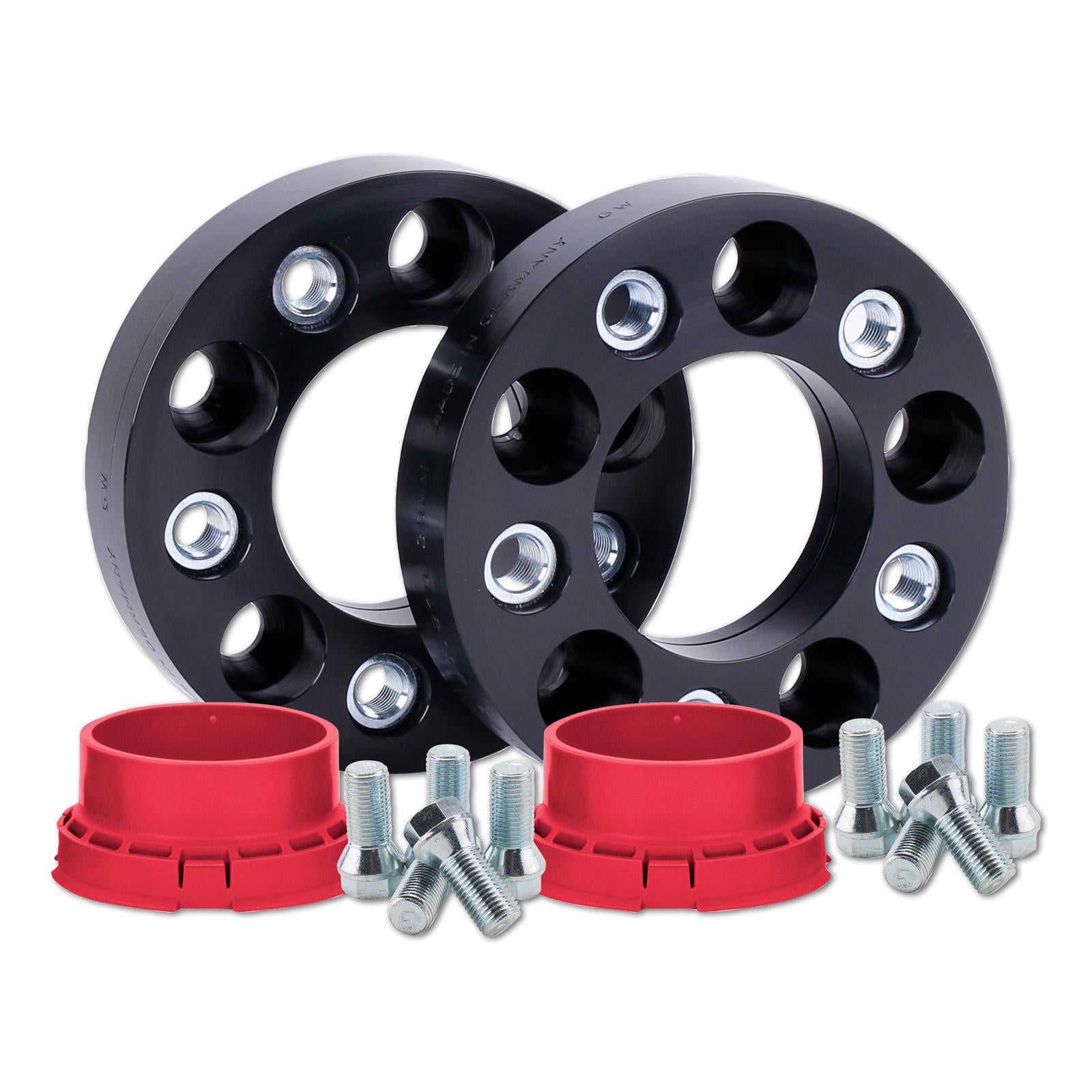

ST Wheel Spacer System AZX 50mm per Axle 5x120/67.1 - M14x1.5
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System AZX 50mm per Axle 5x120/67.1 - M14x1.5
Sale price$407.55
Regular price$429.00 (/)
ST's AZX is a bolt-on wheel spacer system with plastic adapter rings for double centring, suiting vehicles with either wheel bolts or wheel studs. The spacer bolts to the hub with the supplied hardware, and the wheel then mounts to the spacer. Interchangeable adapter rings cover different hub centre bores.
Key Features
- Double centring via interchangeable adapter rings
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 50 mm per axle (25 mm per wheel)
- Bolt pattern (PCD): 5x120
- Centre bore: 67.1 mm
- Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel nuts, M14x1.5
- Position: Front or rear axle
- Material: Aluminium with composite adapters
- Supplied as: 2 spacer discs, 2 adapters
Note For vehicles with a wheel thread other than M14x1.5, double-threaded studs or wheel bolts are ordered separately.
ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.
NOT in combination with steel wheels.
References 311, 316, 317, 321. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x120 |
|---|---|
| Hub bore | 67.1mm |
| Width per axle | 50mm |
| System | AZX |
| Thread | Nut: M14x1.5 Taper 60°, 22mm wrench size |
| Wheel offset limit | Front 11 / Rear -4 |
| Material | Aluminium, composite material |
| Supplied as | 2 spacer discs, 2 adapters |
- Note 311: NOT in combination with steel wheels.
- Note 316: Original threaded wheel studs must be shortened by approxemately 12mm. This is the same like the area without thread. Minimum thread engagement is 7.5 turns.
- Note 317: Attention: Installation only possible at rims with corresponding holes on the back. The depth of the pockets must be larger than the remaining length of the studs, which protrude from the wheel spacers after assembly.
- Note 321: For system AZX ST threaded bolts have to be ordered separately. The thread of the ST threaded bolts has to be similar to the one of the original knurled studs.
