ST Wheel Spacer System AZX 60mm Axle 5x114.3
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.
Description
- ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.
Wheel Spacer System AZX 60mm Axle 5x114,3
System - AZX
25, 30 or 35 mm per wheel
Screw on system with plastic adapter rings for a double centering for vehicles with wheel bolts AND wheel studs. By the double centering, the system guarantees an optimal run. With replaceable plastic adapter rings, different hub centerings can be covered. The wheel spacer has to be attached to the wheel hub by the included mounting material. For vehicles with studs, the ST double threaded studs are used to mount the rim with the original nuts on the wheel spacers. For vehicles with wheel bolts, M14x1,5 screws are used to mount the rim on the wheel spacer. By using ST double threaded studs, also a refitting from wheel bolts to studs is possible.

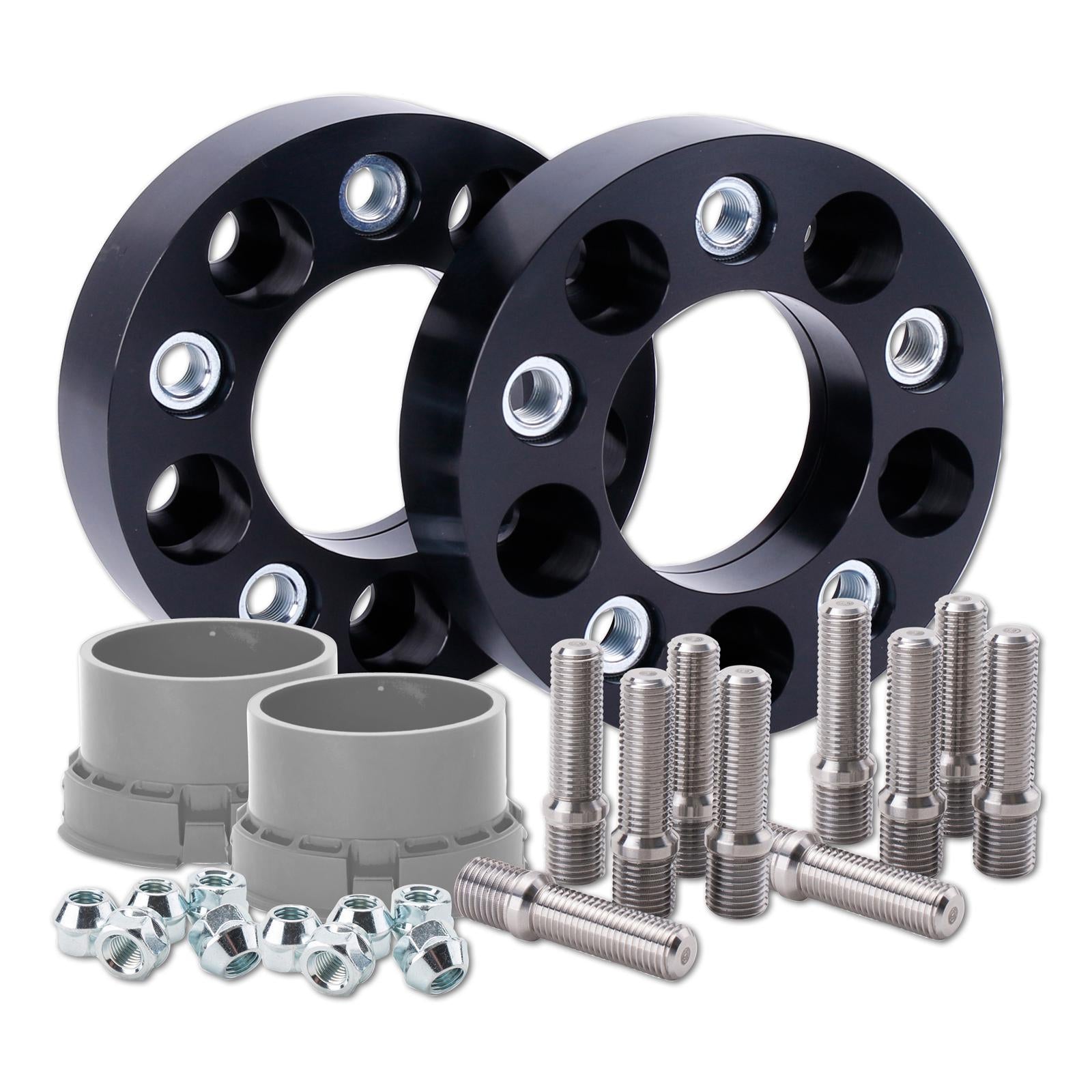

- Delivery content: 2 wheel spacers System AZX, 2 adapter rings System AZX, including mounting material
- Made of high quality aluminum
- Black anodized for perfect corrosion protection
- Dynamical performance of the vehicle / perfect appearance
- Improved driving dynamics by larger track width
- Retrofitting from wheel bolts to wheel studs possible by the double threaded studs
Product Disclaimers:
- Note 329: Please consider the maximum total offset and all mentioned notes and restrictions in the certificate. The total offset is the result of the difference of the offset at the used wheel and the thickness of the wheel spacers (for example rim offset+35mm & wheel spacers 15mm = total offset +20mm)
- Note 319: M14x1.5 bolts must be used to mount the wheel on the AZX-wheel spacer. Seat and shaft length of the bolts must match the actual used wheel bolts. Applies only to system AZX
Fitments
| Make | Model | Type | Body Type | Aspiration | KW | CCM | Cyl | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| FIAT | SEDICI (FY_) 06/2006-10/2014 | 1.6 16V | SUV | Petrol | 79 | 1586 | 4 | Front Wheel Drive |
| FIAT | SEDICI (FY_) 06/2006-10/2014 | 1.6 16V | SUV | Petrol | 88 | 1586 | 4 | Front Wheel Drive |
| FIAT | SEDICI (FY_) 06/2006-10/2014 | 1.6 16V 4x4 | SUV | Petrol | 79 | 1586 | 4 | All-wheel Drive |
| FIAT | SEDICI (FY_) 06/2006-10/2014 | 1.6 16V 4x4 | SUV | Petrol | 88 | 1586 | 4 | All-wheel Drive |
| FIAT | SEDICI (FY_) 06/2006-10/2014 | 1.9 D Multijet | SUV | Diesel | 88 | 1910 | 4 | Front Wheel Drive |
| FIAT | SEDICI (FY_) 06/2006-10/2014 | 1.9 D Multijet 4x4 | SUV | Diesel | 88 | 1910 | 4 | All-wheel Drive |
| FIAT | SEDICI (FY_) 06/2006-10/2014 | 2.0 D Multijet | SUV | Diesel | 99 | 1956 | 4 | Front Wheel Drive |
| FIAT | SEDICI (FY_) 06/2006-10/2014 | 2.0 D Multijet 4x4 | SUV | Diesel | 99 | 1956 | 4 | All-wheel Drive |
| SUZUKI | SWIFT III (FZ, NZ) 10/2010- | 1.6 (AZG 416, AZH 416, RS416) | Hatchback | Petrol | 100 | 1586 | 4 | Front Wheel Drive |
| SUZUKI | SWIFT III (MZ, EZ) 02/2005- | 1.6 (RS 416) | Hatchback | Petrol | 92 | 1586 | 4 | Front Wheel Drive |
| SUZUKI | SX4 (EY, GY) 06/2006-12/2015 | 1.5 (RW 415) | Hatchback | Petrol | 73 | 1490 | 4 | Front Wheel Drive |
| SUZUKI | SX4 (EY, GY) 06/2006-12/2015 | 1.6 DDIS (RW 416D) | Hatchback | Diesel | 66 | 1560 | 4 | Front Wheel Drive |
| SUZUKI | SX4 (EY, GY) 06/2006-12/2015 | 1.6 VVT | Hatchback | Petrol | 81 | 1586 | 4 | Front-Wheel Drive |
| SUZUKI | SX4 (EY, GY) 06/2006-12/2015 | 1.6 VVT (RW 416) | Hatchback | Petrol | 88 | 1586 | 4 | Front Wheel Drive |
| SUZUKI | SX4 (EY, GY) 06/2006-12/2015 | 1.6 VVT 4x4 | Hatchback | Petrol | 81 | 1586 | 4 | All-wheel Drive |
| SUZUKI | SX4 (EY, GY) 06/2006-12/2015 | 1.6 VVT 4x4 (RW 416) | Hatchback | Petrol | 79 | 1586 | 4 | All-wheel Drive |
| SUZUKI | SX4 (EY, GY) 06/2006-12/2015 | 1.6 VVT 4x4 (RW 416) | Hatchback | Petrol | 88 | 1586 | 4 | All-wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.0 (AKK 310) | Hatchback | Petrol | 82 | 998 | 3 | Front Wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.0 AllGrip (AKK 310) | Hatchback | Petrol | 82 | 998 | 3 | All-wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.4 Hybrid (Mild Hybrid) (AKK 414) | Hatchback | Petrol/Electric | 95 | 1373 | 4 | Front Wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.4 Hybrid (Mild Hybrid) AllGrip (AKK 414) | Hatchback | Petrol/Electric | 95 | 1373 | 4 | All-wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.4 T (AKK 414) | Hatchback | Petrol | 103 | 1373 | 4 | Front Wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.4 T AllGrip (AKK 414) | Hatchback | Petrol | 103 | 1373 | 4 | All-wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.4 Turbo 4Style | Hatchback | Petrol | 107 | 1373 | 4 | Front Wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.6 (AKK 416) | Hatchback | Petrol | 86 | 1586 | 4 | Front Wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.6 (AKK 416) | Hatchback | Petrol | 88 | 1586 | 4 | Front Wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.6 (AKK416) | Hatchback | Petrol | 85 | 1586 | 4 | Front Wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.6 AllGrip (AKK 416) | Hatchback | Petrol | 86 | 1586 | 4 | All-wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.6 AllGrip (AKK 416) | Hatchback | Petrol | 88 | 1586 | 4 | All-wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.6 AllGrip (AKK416) | Hatchback | Petrol | 85 | 1586 | 4 | All-wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.6 DDiS (AKK 416D) | Hatchback | Diesel | 88 | 1598 | 4 | Front Wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.6 DDiS AllGrip (AKK 416D) | Hatchback | Diesel | 88 | 1598 | 4 | All-wheel Drive |
| SUZUKI | SX4 S-Cross (JY) 08/2013- | 1.6 VVT | Hatchback | Petrol | 93 | 1586 | 4 | Front Wheel Drive |
| SUZUKI | SX4 Saloon (GY, RW) 10/2007-12/2014 | 1.6 (RW 416) | Saloon | Petrol | 79 | 1586 | 4 | Front Wheel Drive |
| SUZUKI | SX4 Saloon (GY, RW) 10/2007-12/2014 | 1.6 (RW 416) | Saloon | Petrol | 88 | 1586 | 4 | Front Wheel Drive |
