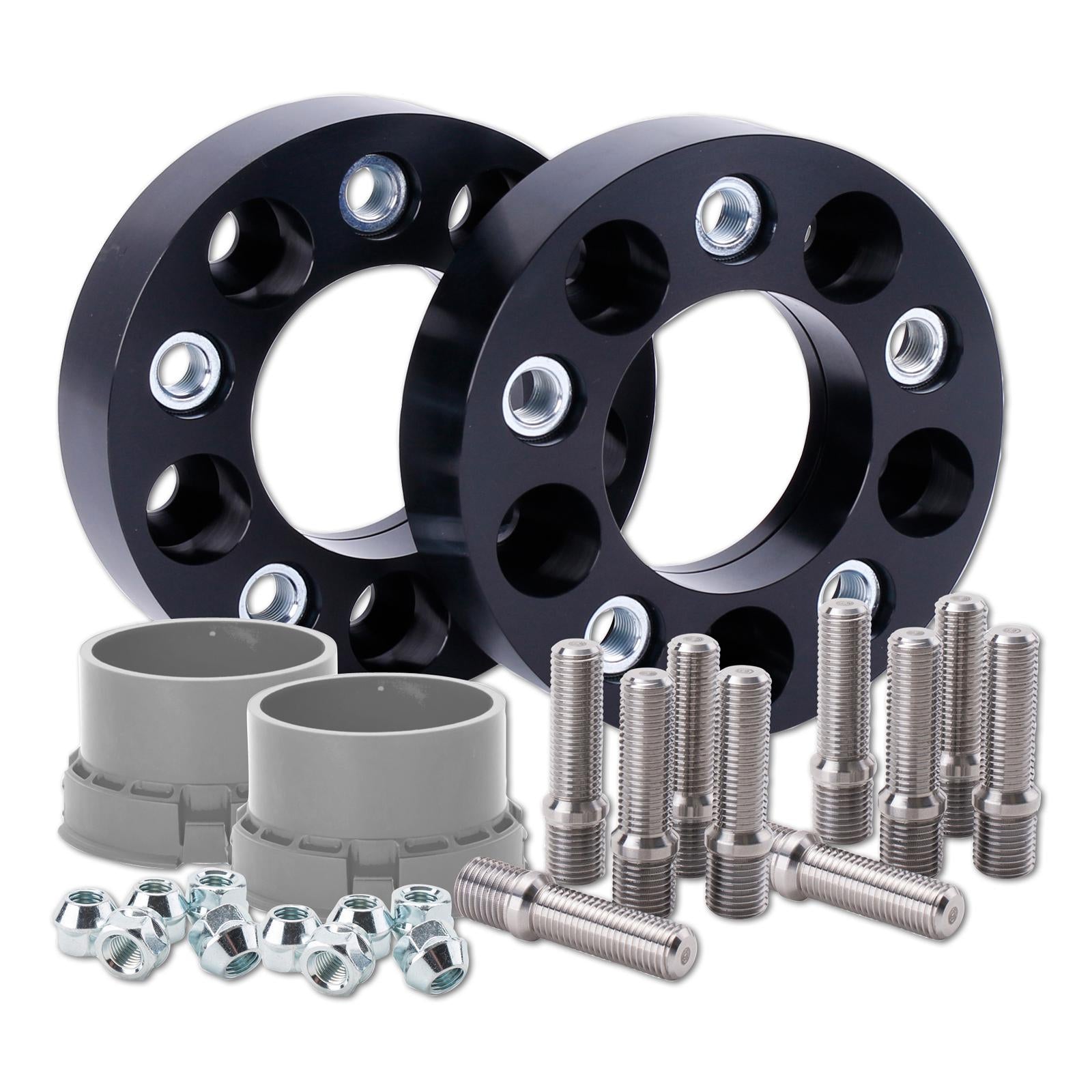

ST Wheel Spacer System AZX 60mm per Axle 5x114.3 for Honda (AP1/AP2) S2000
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST's AZX is a bolt-on wheel spacer system with plastic adapter rings for double centring, suiting vehicles with either wheel bolts or wheel studs. The spacer bolts to the hub with the supplied hardware, and the wheel then mounts to the spacer. Interchangeable adapter rings cover different hub centre bores. This part is listed for the Honda S2000 (AP1) / S2000 (AP2).
Key Features
- Double centring via interchangeable adapter rings
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 60 mm per axle (30 mm per wheel)
- Bolt pattern (PCD): 5x114.3
- Centre bore: 70.2 mm
- Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel nuts, M12x1.5
- Position: Front axle
- Material: Aluminium with composite adapters
- Supplied as: 2 spacer discs, 2 adapters
ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.
NOT in combination with steel wheels.
References 311, 321. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x114.3 |
|---|---|
| Hub bore | 70.2mm |
| Width per axle | 60mm |
| System | AZX |
| Thread | Nut: M12x1.5 |
| Material | Aluminium, composite material |
| Supplied as | 2 spacer discs, 2 adapters |
- Note 311: NOT in combination with steel wheels.
- Note 321: For system AZX ST threaded bolts have to be ordered separately. The thread of the ST threaded bolts has to be similar to the one of the original knurled studs.
