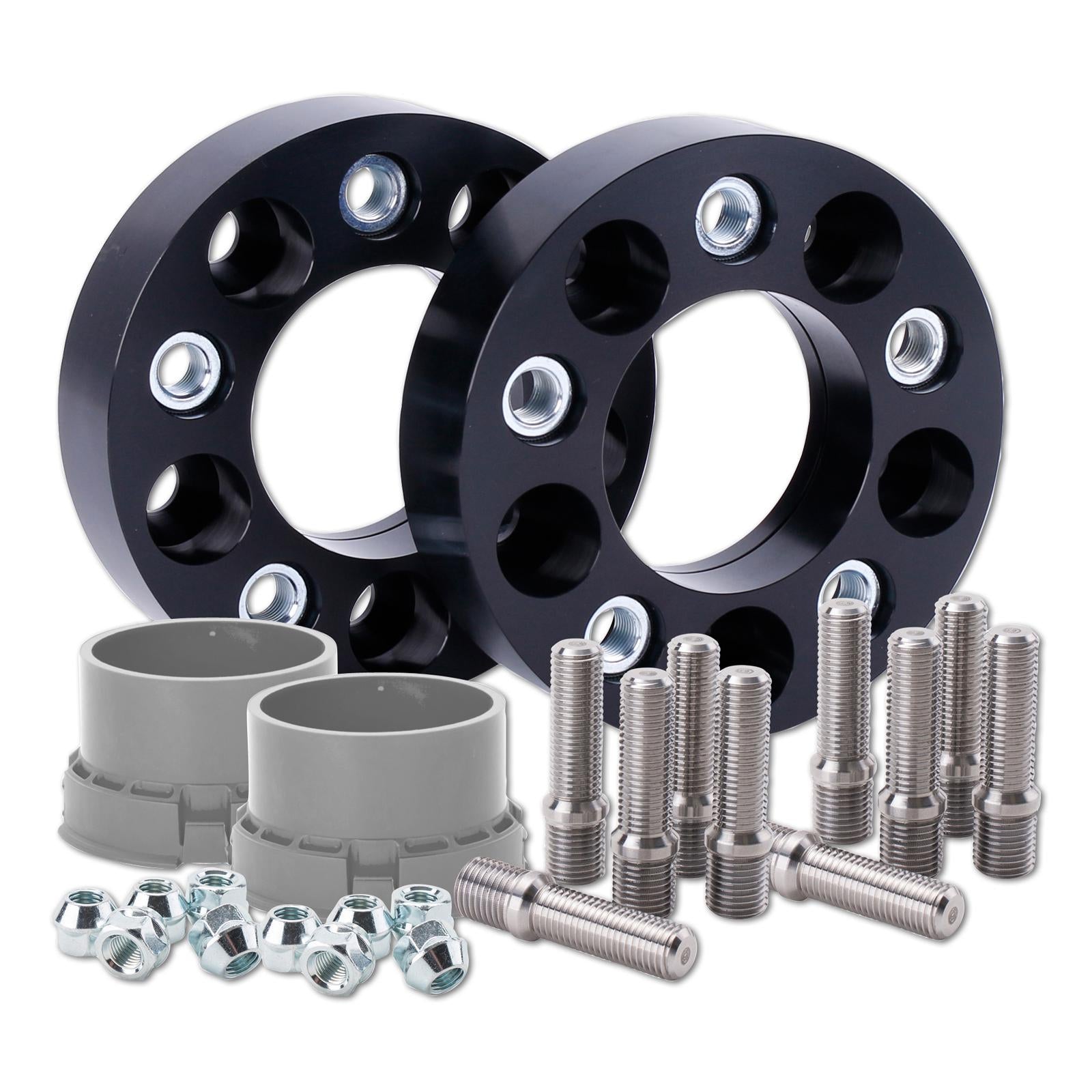

ST Wheel Spacer System AZX 70mm per Axle 5x108 for Volvo (295) XC70 Cross Country
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST's AZX is a bolt-on wheel spacer system with plastic adapter rings for double centring, suiting vehicles with either wheel bolts or wheel studs. The spacer bolts to the hub with the supplied hardware, and the wheel then mounts to the spacer. Interchangeable adapter rings cover different hub centre bores. This part is listed for the Volvo XC70 Cross Country (295).
Key Features
- Double centring via interchangeable adapter rings
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 70 mm per axle (35 mm per wheel)
- Bolt pattern (PCD): 5x108
- Centre bore: 65.1 mm
- Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel bolts, M14x1.5
- Position: Front or rear axle
- Material: Aluminium with composite adapters
- Supplied as: 2 spacer discs, 2 adapters
ATTENTION! For cars with thread size different to M14x1,5, please order double-threaded bolt or wheel bolts separately.
NOT in combination with steel wheels.
References 311. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x108 |
|---|---|
| Hub bore | 65.1mm |
| Width per axle | 70mm |
| System | AZX |
| Thread | Bolt: M14x1.5x28 Taper 60°, 17mm wrench size |
| Material | Aluminium, composite material |
| Supplied as | 2 spacer discs, 2 adapters |
- Note 311: NOT in combination with steel wheels.
