ST Wheel Spacer System D2 16mm per Axle 4x108/63.4 for Ford (JHH) Fiesta Mk VII
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System D2 16mm per Axle 4x108/63.4 for Ford (JHH) Fiesta Mk VII
Sale price$350.55
Regular price$369.00 (/)

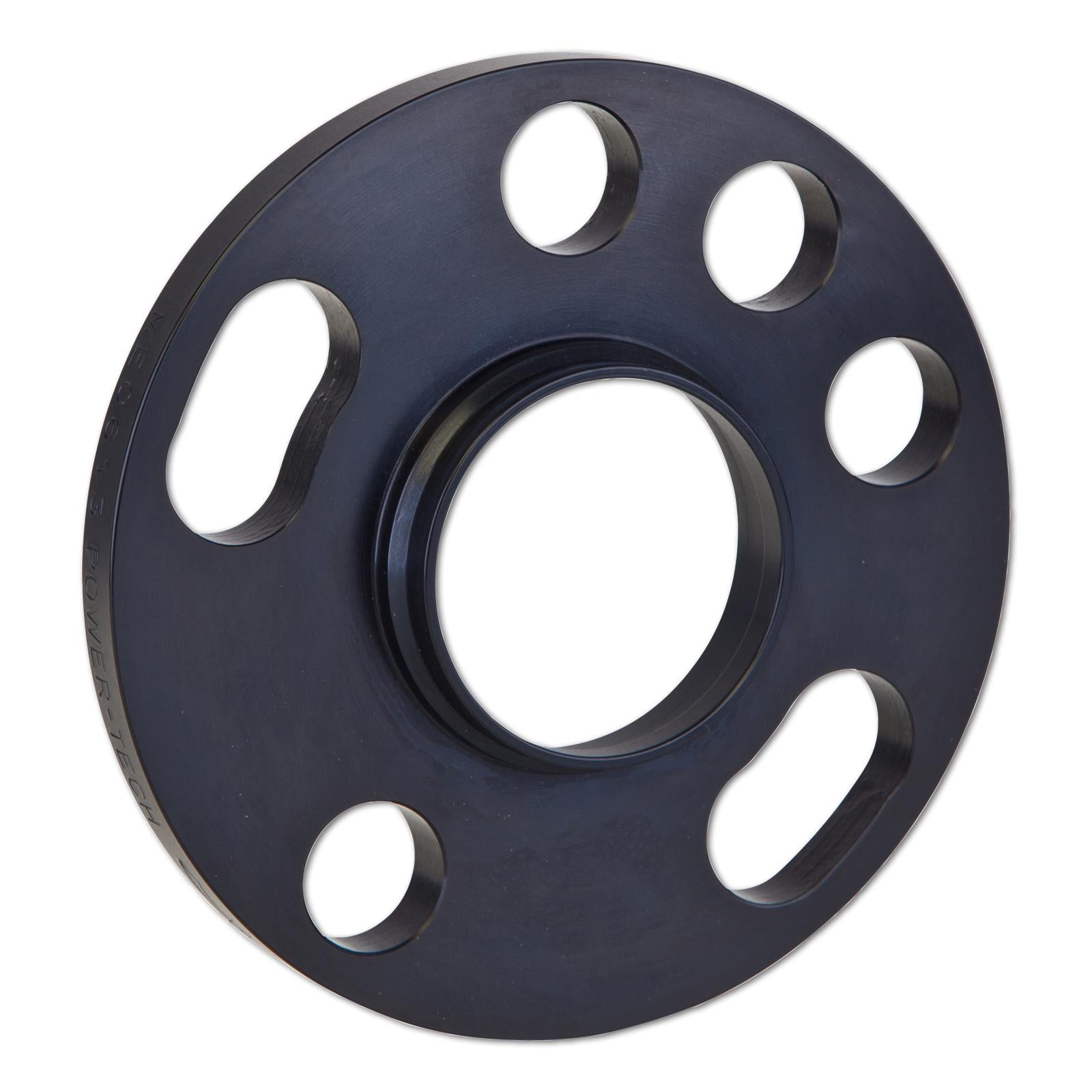

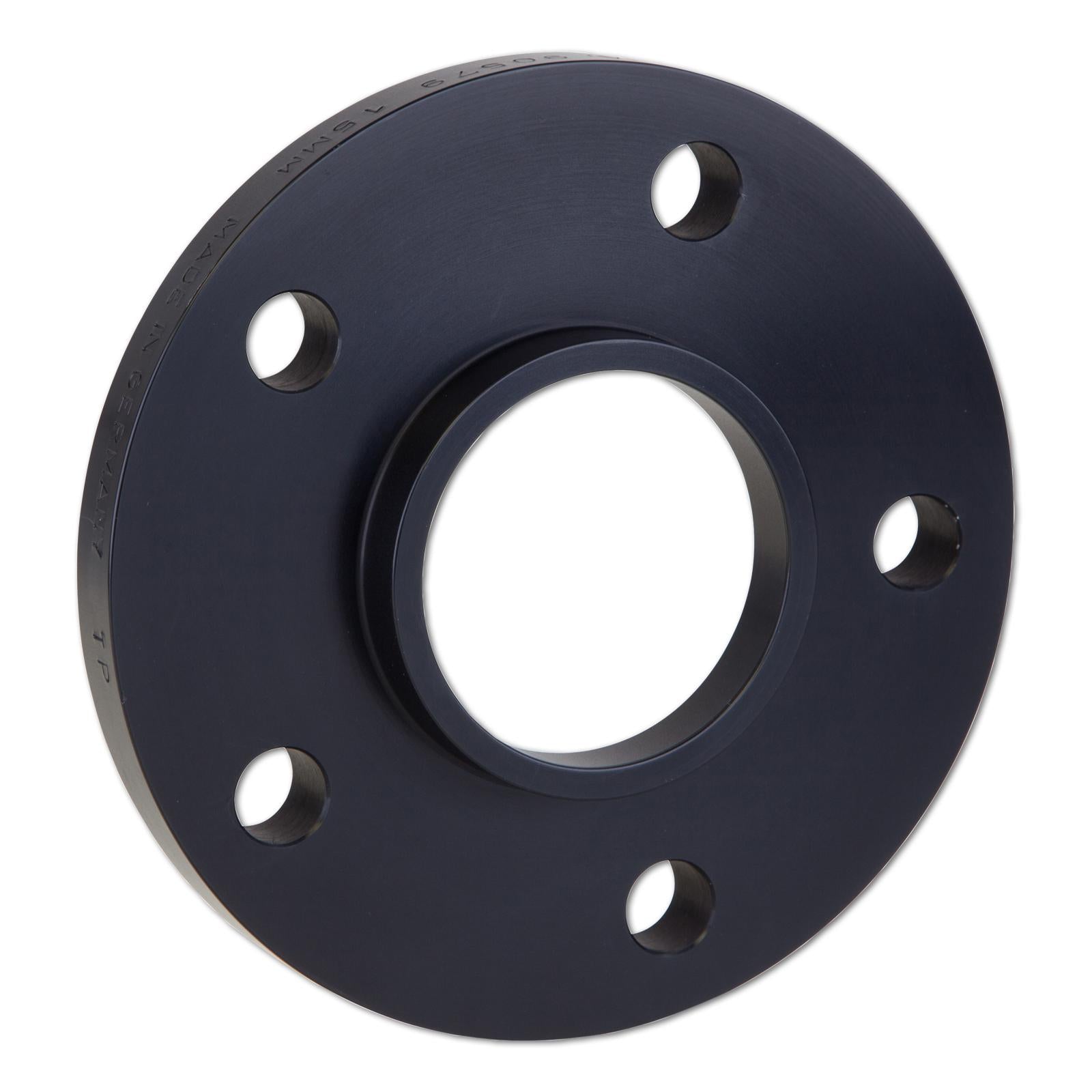

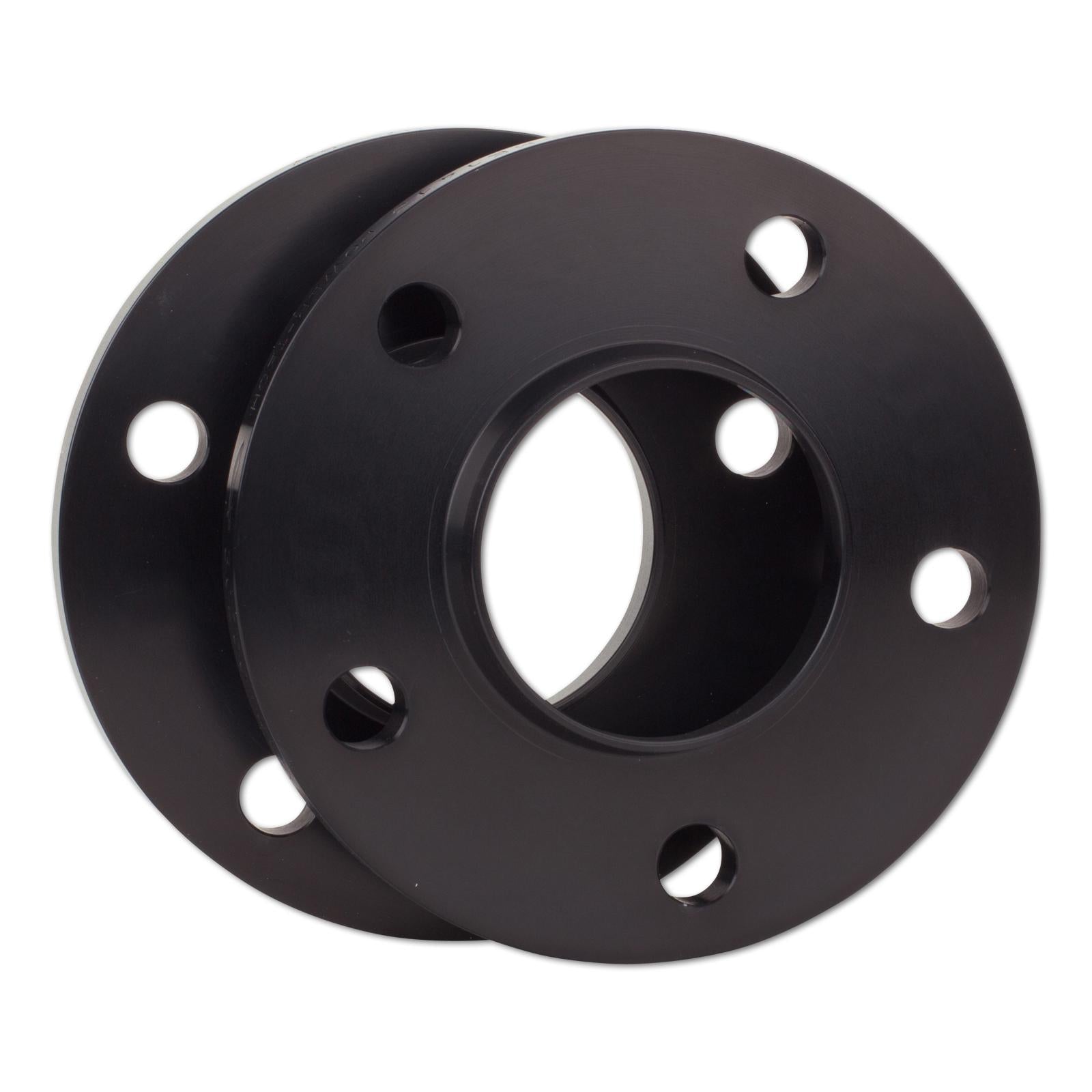

ST's D2 is a bolt-through wheel spacer with double centring: the spacer centres on the hub, and an additional centring collar on the spacer locates the wheel. Longer wheel bolts are required. This part is listed for the Ford Fiesta Mk VII (JHH).
Key Features
- Double centring
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 16 mm per axle (8 mm per wheel)
- Bolt pattern (PCD): 4x108
- Centre bore: 63.4 mm
- Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel nuts, M12x1.5
- Position: Front or rear axle
- Material: Aluminium
- Supplied as: Set (2 pcs)
References 331. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 4x108 |
|---|---|
| Hub bore | 63.4mm |
| Width per axle | 16mm |
| System | D2 |
| Thread | Nut: M12x1.5 Taper 60°, 19mm wrench size |
| Wheel offset limit | 29 |
| Material | Aluminium |
| Supplied as | set (2 pcs) |
- Note 331: For mounting the rim, ST shaft nuts with taper seat 60° are required. The rim holes also have to be in taper seat 60°. Before mounting the rims it also has to be checked if the shaft nuts fit through the rim holes. ST shaft nuts have to be ordered separately.
