ST Wheel Spacer System D2 20mm per Axle 5x120/65.1

SKU: 56020124
Sale price$322.05 Regular price$339.00
Save $16.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

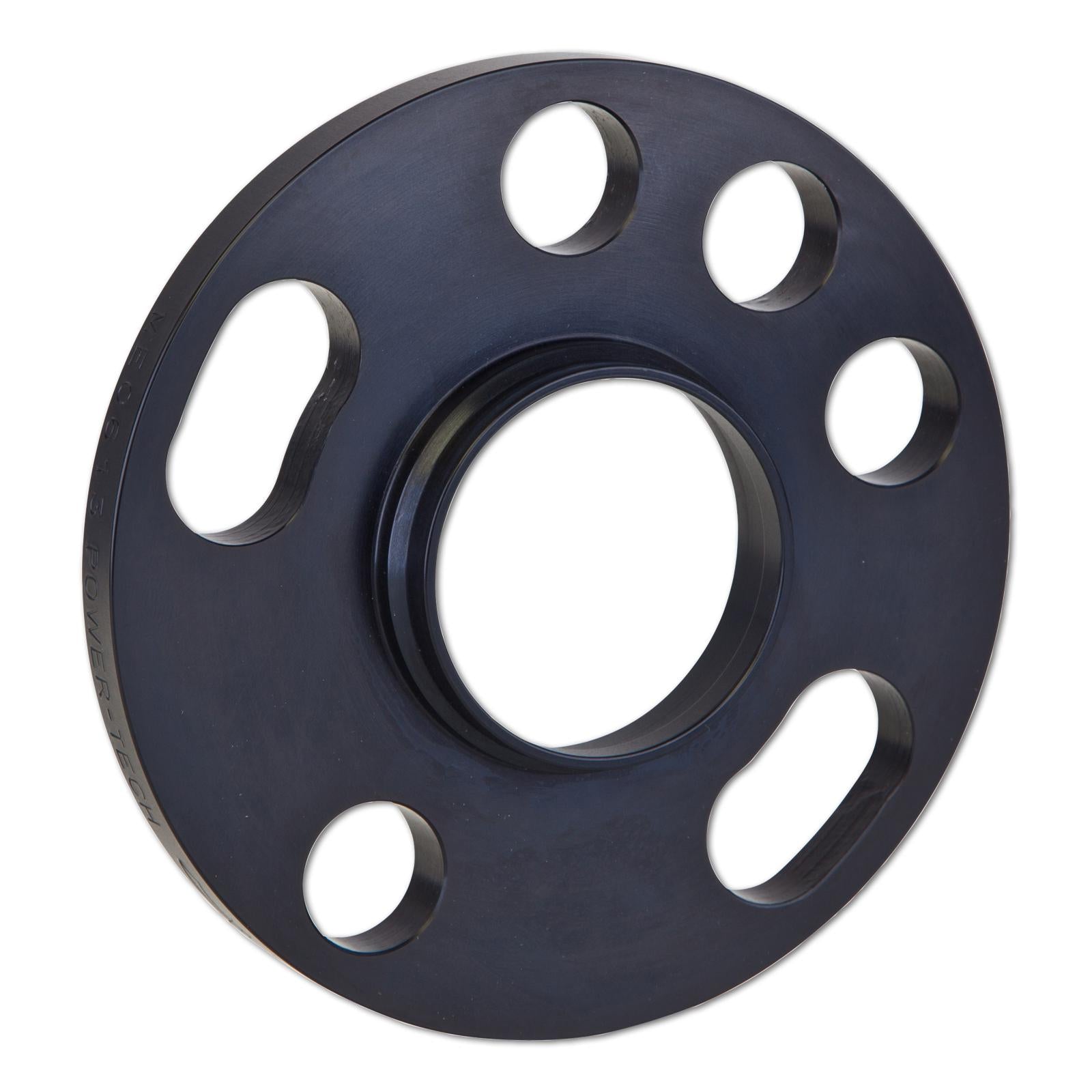

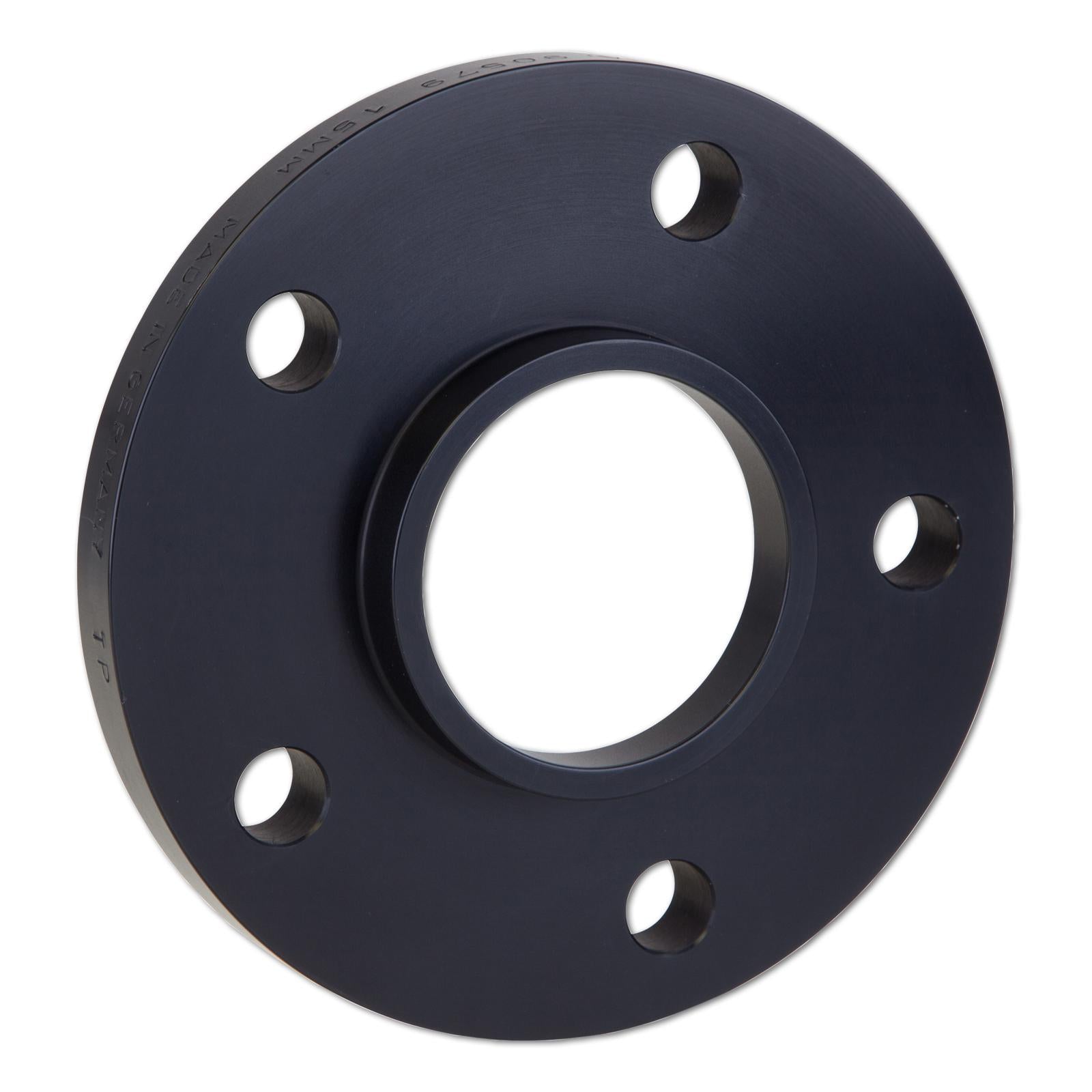

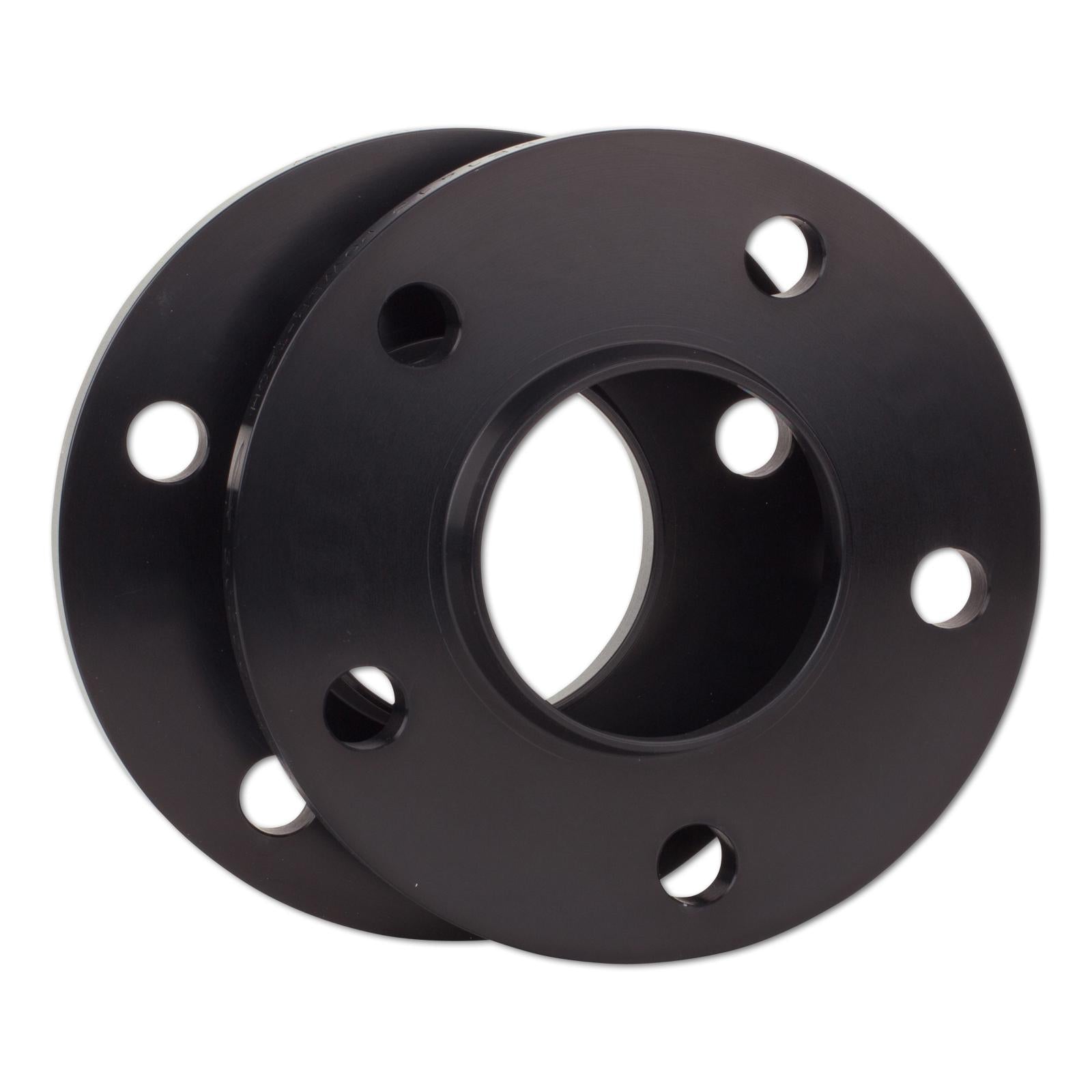

ST's D2 is a bolt-through wheel spacer with double centring: the spacer centres on the hub, and an additional centring collar on the spacer locates the wheel. Longer wheel bolts are required.

Key Features

  • Double centring
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 20 mm per axle (10 mm per wheel)
  • Bolt pattern (PCD): 5x120
  • Centre bore: 65.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel bolts, M14x1.5
  • Position: Front or rear axle
  • Material: Aluminium
  • Supplied as: Set (2 pcs)

References 311, 313. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x120
Hub bore65.1mm
Width per axle20mm
SystemD2
ThreadBolt: M14x1.5x37 Ball R14 loose, 19mm wrench size
Wheel offset limit34|33
MaterialAluminium
Supplied asset (2 pcs)
  • Note 311: NOT in combination with steel wheels.
  • Note 313: Chamfer of the rim at least 5x45°, length of wheel hub max. 13,0mm.
