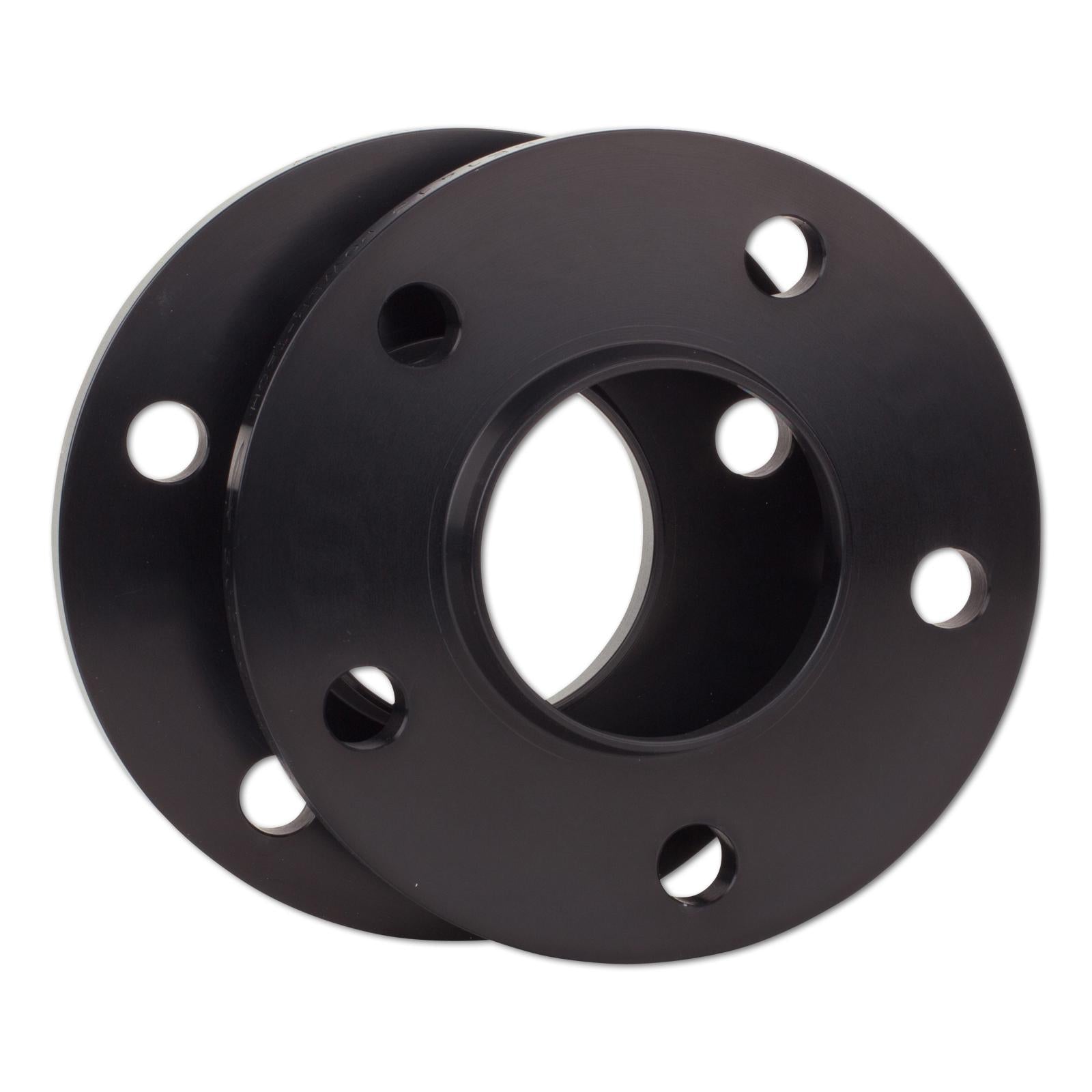

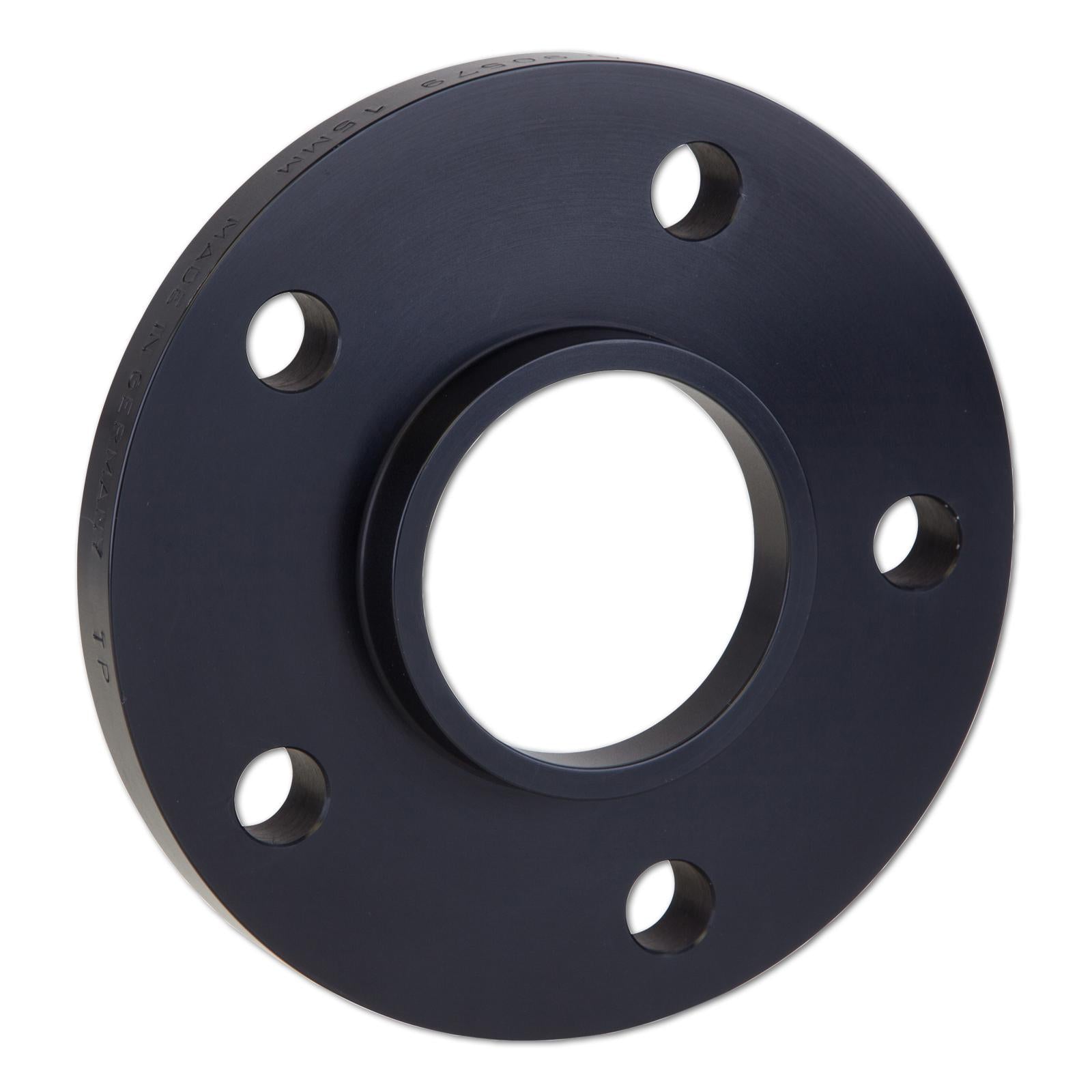

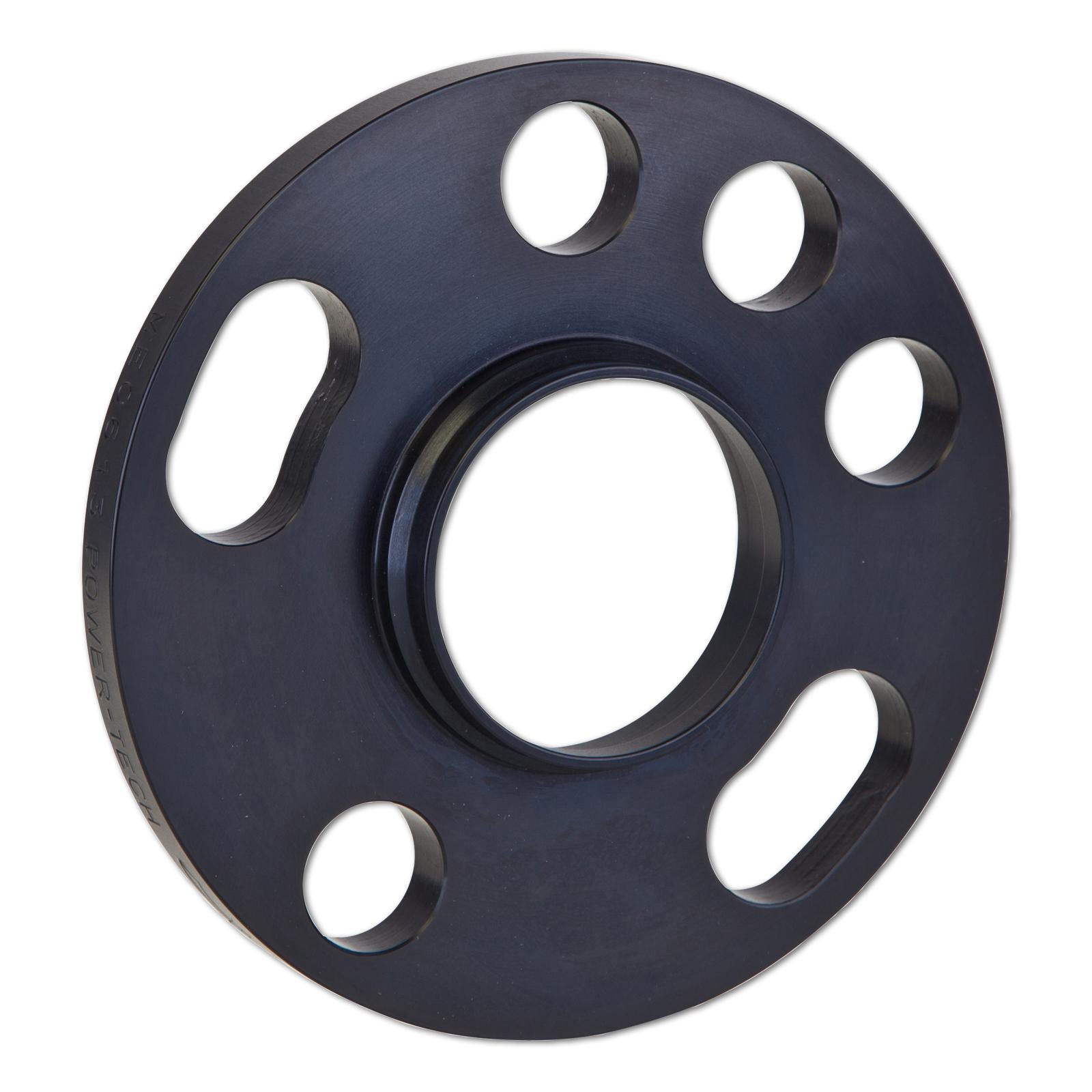

ST Wheel Spacer System D2 40mm per Axle 5x114.3/60.1 for Suzuki (FZ/MZ) Swift Sport / (EY/GY) SX4 / Fiat (189) Sedici
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System D2 40mm per Axle 5x114.3/60.1 for Suzuki (FZ/MZ) Swift Sport / (EY/GY) SX4 / Fiat (189) Sedici
Sale price$360.05
Regular price$379.00 (/)
ST's D2 is a bolt-through wheel spacer with double centring: the spacer centres on the hub, and an additional centring collar on the spacer locates the wheel. Longer wheel bolts are required. This part is listed for the Suzuki Swift Sport (FZ/MZ) / SX4 / Fiat Sedici.
Key Features
- Double centring
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 40 mm per axle (20 mm per wheel)
- Bolt pattern (PCD): 5x114.3
- Centre bore: 60.1 mm
- Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel bolts, M12x1.5
- Position: Front or rear axle
- Material: Aluminium
- Supplied as: Set (2 pcs)
Wheel mounting
| Bolt pattern | 5x114.3 |
|---|---|
| Hub bore | 60.1mm |
| Width per axle | 40mm |
| System | D2 |
| Thread | Bolt: M12x1.5x22 Taper 60°, 17mm wrench size |
| Wheel offset limit | 34 |
| Material | Aluminium |
| Supplied as | set (2 pcs) |
- Note 329: Please consider the maximum total offset and all mentioned notes and restrictions in the certificate. The total offset is the result of the difference of the offset at the used wheel and the thickness of the wheel spacers (for example rim offset+35mm & wheel spacers 15mm = total offset +20mm).
