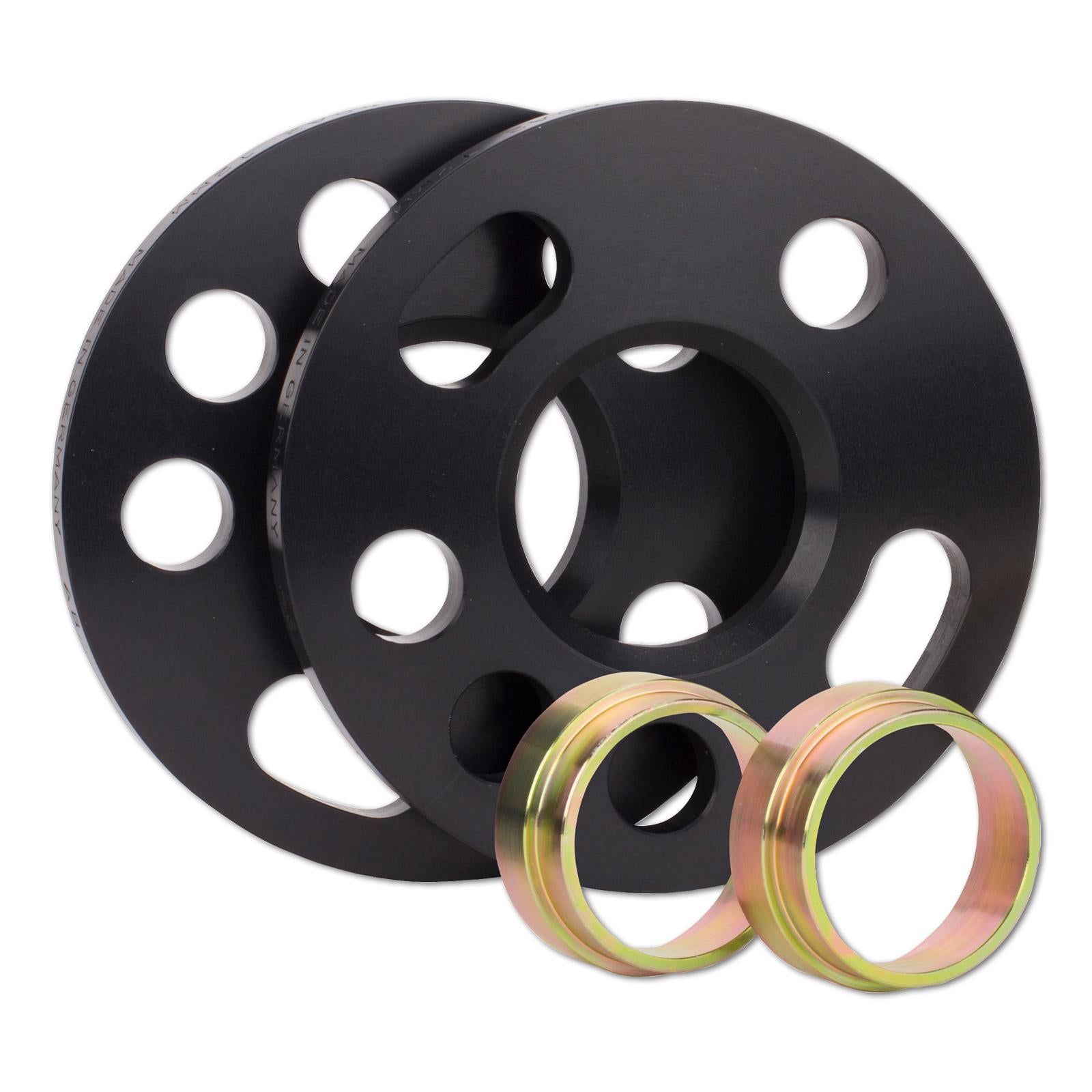

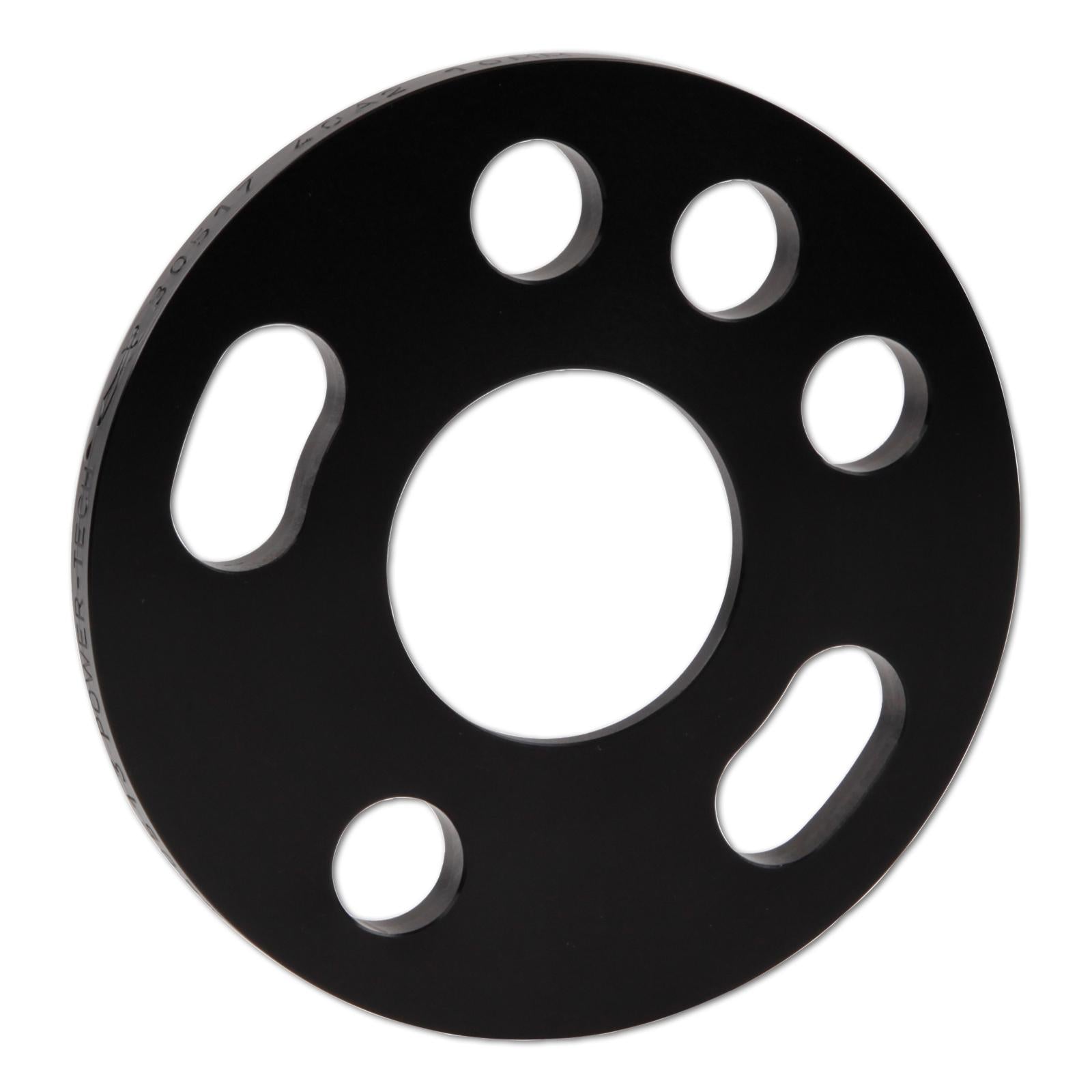

ST Wheel Spacer System DZ 24mm per Axle 4x100/56.6

SKU: 56017024
Sale price$360.05 Regular price$379.00
Save $18.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's DZ is a bolt-through wheel spacer system with a centring collar, for vehicles where wheel centring is a challenge. The collar extends the hub spigot so wider spacers can be fitted while the wheel stays hub-centred. Longer wheel bolts are required.

Key Features

  • Extended hub centring collar
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 24 mm per axle (12 mm per wheel)
  • Bolt pattern (PCD): 4x100
  • Centre bore: 56.6 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)

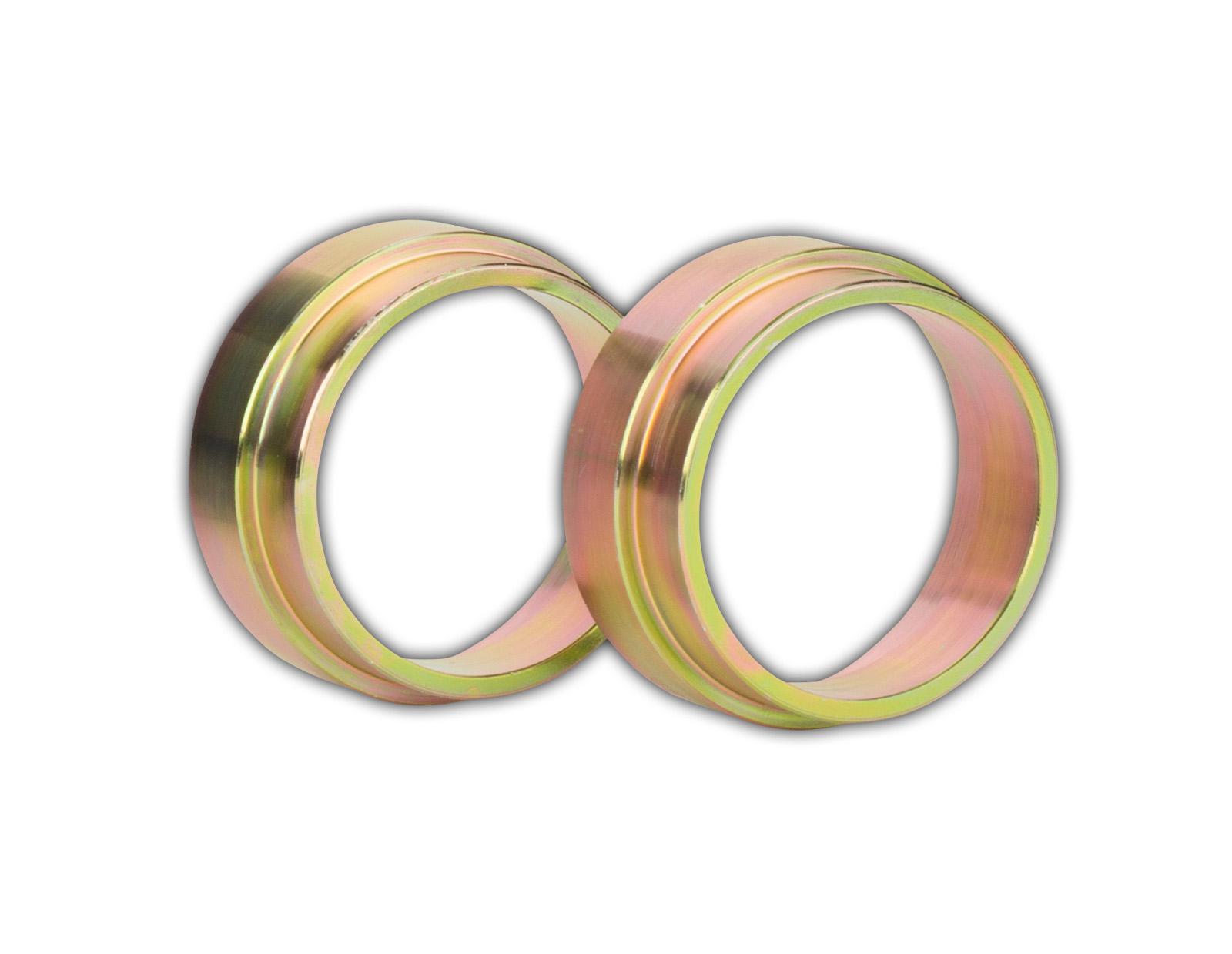

  • Centring collar: Yes
  • Wheel bolts required: M12x1.5 x 24 mm, 60° taper seat, 17 mm wrench
  • Position: Front or rear axle
  • Material: Aluminium
  • Supplied as: Set (2 pcs) including 2 centring collars
Note Longer wheel bolts are required and are ordered separately.

4-hole.

References 308. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern4x100
Hub bore56.6mm
Width per axle24mm
SystemDZ
ThreadBolt: M12x1.5x24 Taper 60°, 17mm wrench size
Wheel offset limit24
MaterialAluminium
Supplied asSet (2 pcs.) incl. 2 centering sleeve
  • Note 308: Only for rear axle.
