ST Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 66.1 with 13mm wheel hub ext
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.
ST Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 66.1 with 13mm wheel hub ext
Sale price$349.00
Regular price (/)
Description

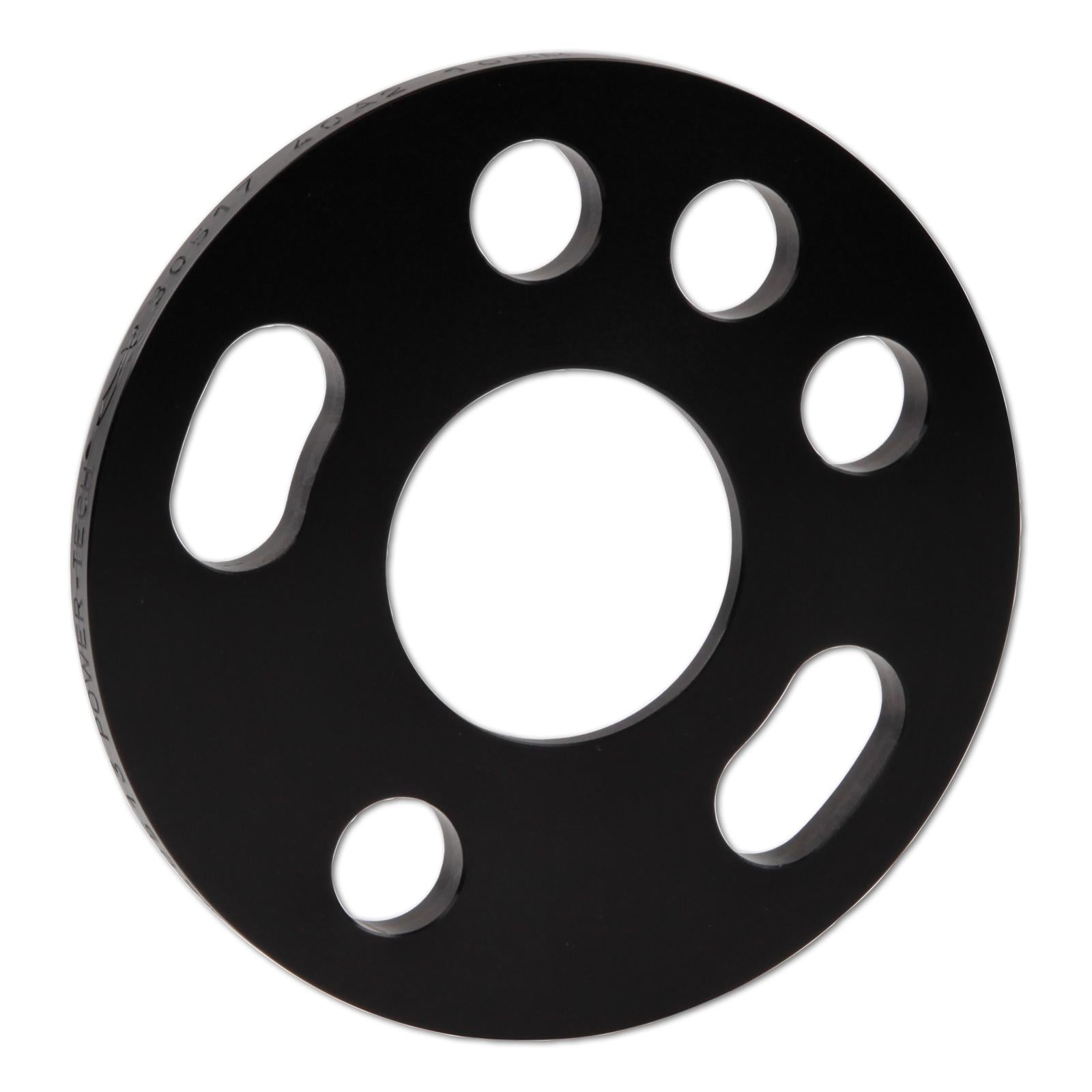

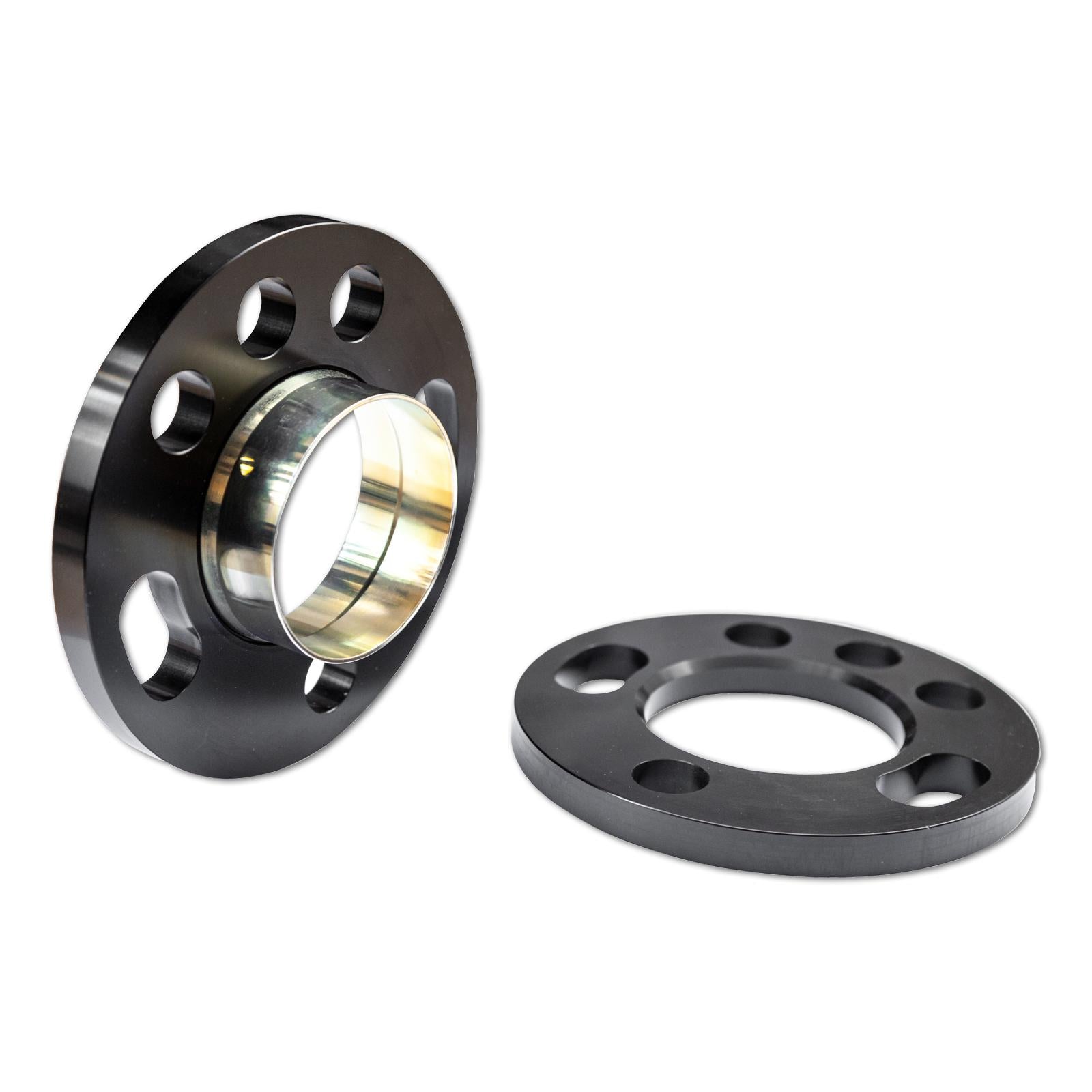

Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 66,1 with 13mm wheel hub extension
System DZX+ 5, 7.5 and 10mm per wheel

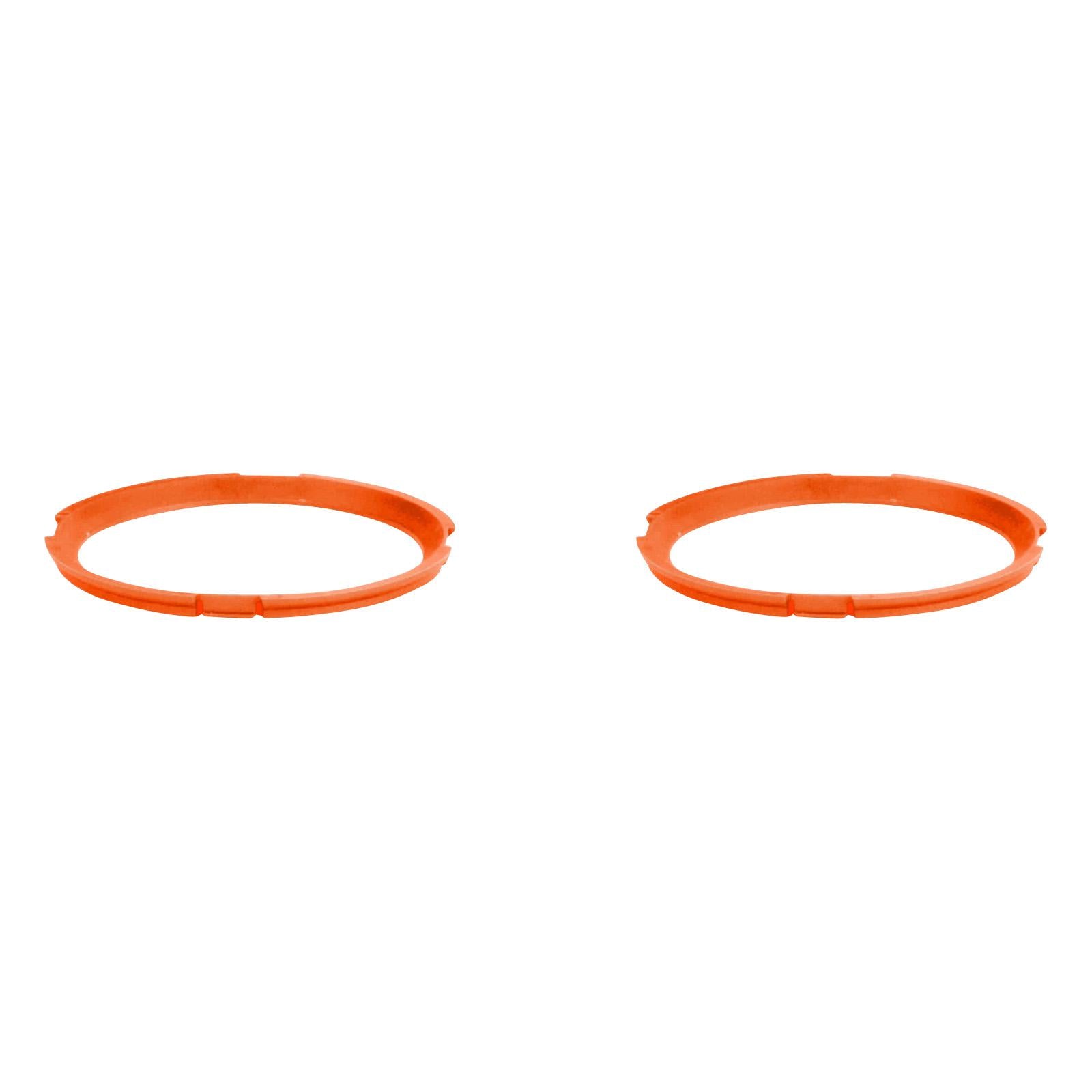

DZX bolt-thorugh system with polyamide adapter ring and additional centering sleeve for wheel hub extension. This spacer system is used for cars with construction related issues of the wheel centering. With the DZX + system, the wheel is no longer centered on the wheel spacer, as the wheel hub centering of the axle is extended and so wider spacer widths can be used. Longer wheel bolts have to be ordered separately.

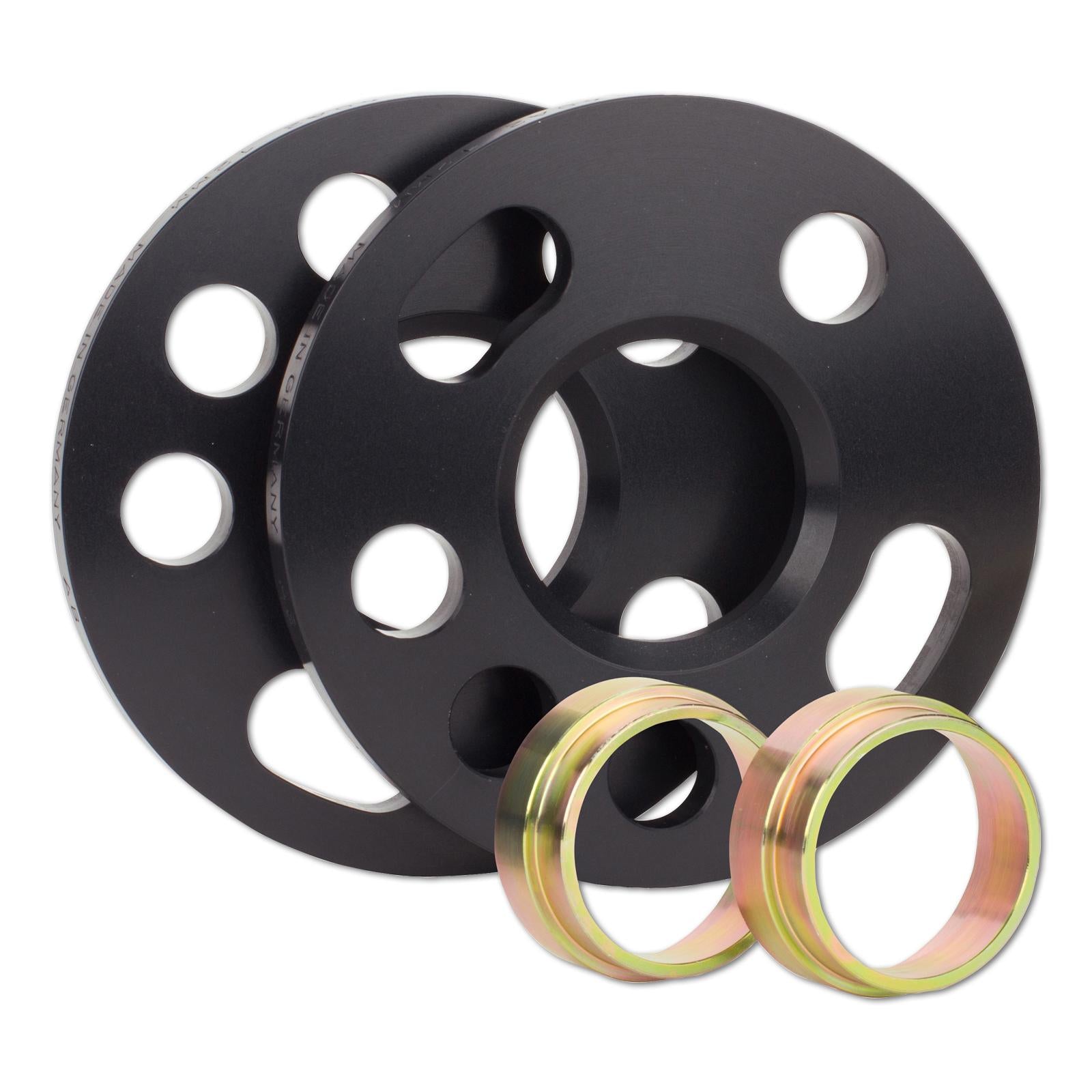

- Scope of delivery: 2 spacer discs system DZX, 2 DZX adapter rings narrow, 2 centering sleeves
- Made of high quality aluminium
- Black anodized for maximum corrosion protection
- Dynamic car appearance
- Improved driving dynamics thanks to wider track width
- Matching wheel bolts available in black and silver
Product Disclaimers:
- Note 308: Only for rear axle
Fitments
| Make | Model | Type | Body Type | Aspiration | KW | CCM | Cyl | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| DACIA | DUSTER Box 04/2011-01/2018 | 1.2 TCe 125 4x4 | Box | Petrol | 92 | 1197 | 4 | All-wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.5 dCi | Box | Diesel | 66 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.5 dCi | Box | Diesel | 80 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.5 dCi 4x4 | Box | Diesel | 66 | 1461 | 4 | All-wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.5 dCi 4x4 | Box | Diesel | 80 | 1461 | 4 | All-wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.6 16V | Box | Petrol | 77 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.6 16V 4x4 | Box | Petrol | 77 | 1598 | 4 | All-wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.6 16V Hi-Flex | Box | Petrol/Ethanol | 77 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.6 SCe 115 | Box | Petrol | 84 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.6 SCe 115 4x4 | Box | Petrol | 84 | 1598 | 4 | All-wheel Drive |
| DACIA | DUSTER Box 04/2011-01/2018 | 1.6 SCe 115 LPG | SUV Van | Petrol/Liquified Petroleum Gas (LPG) | 84 | 1598 | 4 | Front-Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.2 TCe 125 | SUV | Petrol | 92 | 1197 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.2 TCe 125 4x4 | SUV | Petrol | 92 | 1197 | 4 | All-wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.5 dCi | SUV | Diesel | 63 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.5 dCi | SUV | Diesel | 66 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.5 dCi | SUV | Diesel | 79 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.5 dCi | SUV | Diesel | 80 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.5 dCi | SUV | Diesel | 81 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.5 dCi 4x4 | SUV | Diesel | 66 | 1461 | 4 | All-wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.5 dCi 4x4 | SUV | Diesel | 80 | 1461 | 4 | All-wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.5 dCi 4x4 | SUV | Diesel | 81 | 1461 | 4 | All-wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.6 16V | SUV | Petrol | 77 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.6 16V 4x4 | SUV | Petrol | 77 | 1598 | 4 | All-wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.6 16V Hi-Flex | SUV | Petrol/Ethanol | 77 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.6 16V LPG | SUV | Petrol/Liquified Petroleum Gas (LPG) | 77 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.6 SCe 115 | SUV | Petrol | 84 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.6 SCe 115 4x4 | SUV | Petrol | 84 | 1598 | 4 | All-wheel Drive |
| DACIA | DUSTER I (SD, SR) 04/2010-01/2018 | 1.6 SCe 115 LPG | SUV | Petrol/Ethanol | 84 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.0 LPG | SUV | Petrol/Liquified Petroleum Gas (LPG) | 74 | 999 | 3 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.0 TCe 100 (HMMT) | SUV | Petrol | 74 | 999 | 3 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.0 TCe 90 | SUV | Petrol | 67 | 999 | 3 | Front-Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.0 TCe LPG | SUV | Petrol/Liquified Petroleum Gas (LPG) | 67 | 999 | 3 | Front-Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.2 TCe 125 (HMMA) | SUV | Petrol | 92 | 1197 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.2 TCe 125 4x4 (HMMA) | SUV | Petrol | 92 | 1197 | 4 | All-wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.3 TCe 130 (HMMF) | SUV | Petrol | 96 | 1332 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.3 TCe 130 4x4 (HMMF) | SUV | Petrol | 96 | 1332 | 4 | All-wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.3 TCe 150 (HMM3) | SUV | Petrol | 110 | 1332 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.3 TCe 150 4x4 (HMM3) | SUV | Petrol | 110 | 1332 | 4 | All-wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.5 dCi 110 (HMAB) | SUV | Diesel | 80 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.5 dCi 110 4x4 (HMAB) | SUV | Diesel | 80 | 1461 | 4 | All-wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.5 dCi 115 (HMAD) | SUV | Diesel | 85 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.5 dCi 115 4x4 | SUV | Diesel | 84 | 1461 | 4 | All-wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.5 dCi 115 4x4 (HMAD) | SUV | Diesel | 85 | 1461 | 4 | All-wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.5 dCi 90 (HMAA) | SUV | Diesel | 66 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.5 dCi 95 (HMAF) | SUV | Diesel | 70 | 1461 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.6 SCe 115 (HMM1) | SUV | Petrol | 84 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.6 SCe 115 4x4 (HMM1) | SUV | Petrol | 84 | 1598 | 4 | All-wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 1.6 SCe 115 LPG (HMM1) | SUV | Petrol/Liquified Petroleum Gas (LPG) | 80 | 1598 | 4 | Front Wheel Drive |
| DACIA | DUSTER II (SD, SR) 10/2017- | 2.0 16V 4x4 | SUV | Petrol | 101 | 1998 | 4 | All-wheel Drive |
| RENAULT | ESPACE V (JR_, RFC) 02/2015- | 1.6 dCi 130 | MPV | Diesel | 96 | 1598 | 4 | Front Wheel Drive |
| RENAULT | ESPACE V (JR_, RFC) 02/2015- | 1.6 dCi 160 | MPV | Diesel | 118 | 1598 | 4 | Front Wheel Drive |
| RENAULT | ESPACE V (JR_, RFC) 02/2015- | 1.6 TCe 200 | MPV | Petrol | 147 | 1618 | 4 | Front Wheel Drive |
| RENAULT | ESPACE V (JR_, RFC) 02/2015- | 1.8 TCe 225 | MPV | Petrol | 165 | 1798 | 4 | Front Wheel Drive |
| RENAULT | ESPACE V (JR_, RFC) 02/2015- | 2.0 Blue dCi 160 (JRAM) | MPV | Diesel | 118 | 1997 | 4 | Front Wheel Drive |
| RENAULT | ESPACE V (JR_, RFC) 02/2015- | 2.0 Blue dCi 190 | MPV | Diesel | 139 | 1997 | 4 | Front-Wheel Drive |
| RENAULT | ESPACE V (JR_, RFC) 02/2015- | 2.0 Blue dCi 200 (JRAL) | MPV | Diesel | 147 | 1997 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.2 TCe | MPV | Petrol | 85 | 1197 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.2 TCe | MPV | Petrol | 96 | 1197 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.2 TCe (JZ16) | MPV | Petrol | 97 | 1197 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.4 16V (JZ0F) | MPV | Petrol | 96 | 1397 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.5 dCi | MPV | Diesel | 63 | 1461 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.5 dCi | MPV | Diesel | 70 | 1461 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.5 dCi | MPV | Diesel | 78 | 1461 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.5 dCi | MPV | Diesel | 81 | 1461 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.6 16V (JZ0U) | MPV | Petrol | 81 | 1598 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.6 16V Bifuel | MPV | Petrol/Liquified Petroleum Gas (LPG) | 79 | 1598 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.6 16V Bifuel | MPV | Petrol/Liquified Petroleum Gas (LPG) | 81 | 1598 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.6 dCi (JZ00, JZ12) | MPV | Diesel | 96 | 1598 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.6 E85 | MPV | Petrol/Ethanol | 81 | 1598 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 1.9 dCi | MPV | Diesel | 96 | 1870 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 2.0 16V (JZ0G) | MPV | Petrol | 103 | 1997 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 2.0 dCi (JZ0L) | MPV | Diesel | 118 | 1995 | 4 | Front Wheel Drive |
| RENAULT | GRAND SCÆNIC III (JZ0/1_) 02/2009-12/2016 | 2.0 dCi (JZ0Y) | MPV | Diesel | 110 | 1995 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 1.5 dCi | Coupe | Diesel | 81 | 1461 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 2.0 16V Turbo | Coupe | Petrol | 125 | 1998 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 2.0 dCi (DT01, DT08, DT09, DT0K, DT12, DT1C, DT1D, DT1M,... | Coupe | Diesel | 110 | 1995 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 2.0 dCi (DT0M, DT0N, DT0S, DT19, DT1F) | Coupe | Diesel | 127 | 1995 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 2.0 dCi GT (DT11, DT1E, DT1N) | Coupe | Diesel | 131 | 1995 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 2.0 GT | Coupe | Petrol | 150 | 1998 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 3.0 dCi | Coupe | Diesel | 177 | 2998 | 6 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 3.0 dCi (DT03) | Coupe | Diesel | 173 | 2998 | 6 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 3.5 V6 (DT0P, DT0C) | Coupe | Petrol | 177 | 3498 | 6 | Front Wheel Drive |
| RENAULT | LAGUNA Coupe (T, DT0/1) 09/2008-12/2015 | 3.5 V6 (DT0P) | Coupe | Petrol | 175 | 3498 | 6 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 1.5 dCi (BT00, BT0A, BT0T, BT1J) | Hatchback | Diesel | 81 | 1461 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 1.6 16V (BT04, BT0D, BT0U) | Hatchback | Petrol | 81 | 1598 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 2.0 16V (BT05, BT0F, BT0W) | Hatchback | Petrol | 103 | 1998 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 2.0 16V Hi-Flex (BT1H) | Hatchback | Petrol/Ethanol | 103 | 1997 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 2.0 16V Turbo | Hatchback | Petrol | 125 | 1998 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 2.0 dCi (BT01, BT08, BT09, BT0E, BT0K, BT12, BT1C, BT1D,... | Hatchback | Diesel | 110 | 1995 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 2.0 dCi (BT07, BT0J, BT14, BT1A, BT1S) | Hatchback | Diesel | 96 | 1995 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 2.0 dCi (BT0M, BT0N, BT0S, BT19, BT1F) | Hatchback | Diesel | 127 | 1995 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 2.0 dCi GT (BT11, BT1E, BT1N) | Hatchback | Diesel | 131 | 1995 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 2.0 GT | Hatchback | Petrol | 150 | 1998 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 3.0 dCi (BT03, BT13) | Hatchback | Diesel | 173 | 2998 | 6 | Front Wheel Drive |
| RENAULT | LAGUNA III (T, BT0/1) 10/2007-12/2015 | 3.5 V6 (BT0C, BT0P) | Hatchback | Petrol | 175 | 3498 | 6 | Front Wheel Drive |
| RENAULT | LAGUNA III Grandtour (T, KT0/1) 10/2007-12/2015 | 1.5 dCi (KT0A) | Estate | Diesel | 81 | 1461 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III Grandtour (T, KT0/1) 10/2007-12/2015 | 1.6 16V (KT0D) | Estate | Petrol | 81 | 1598 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III Grandtour (T, KT0/1) 10/2007-12/2015 | 2.0 16V (KT0F, KT0W) | Estate | Petrol | 103 | 1998 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III Grandtour (T, KT0/1) 10/2007-12/2015 | 2.0 16V Hi-Flex (KT1H) | Estate | Petrol/Ethanol | 103 | 1997 | 4 | Front Wheel Drive |
| RENAULT | LAGUNA III Grandtour (T, KT0/1) 10/2007-12/2015 | 2.0 16V Turbo | Estate | Petrol | 125 | 1998 | 4 | Front Wheel Drive |
Strength Proof:
