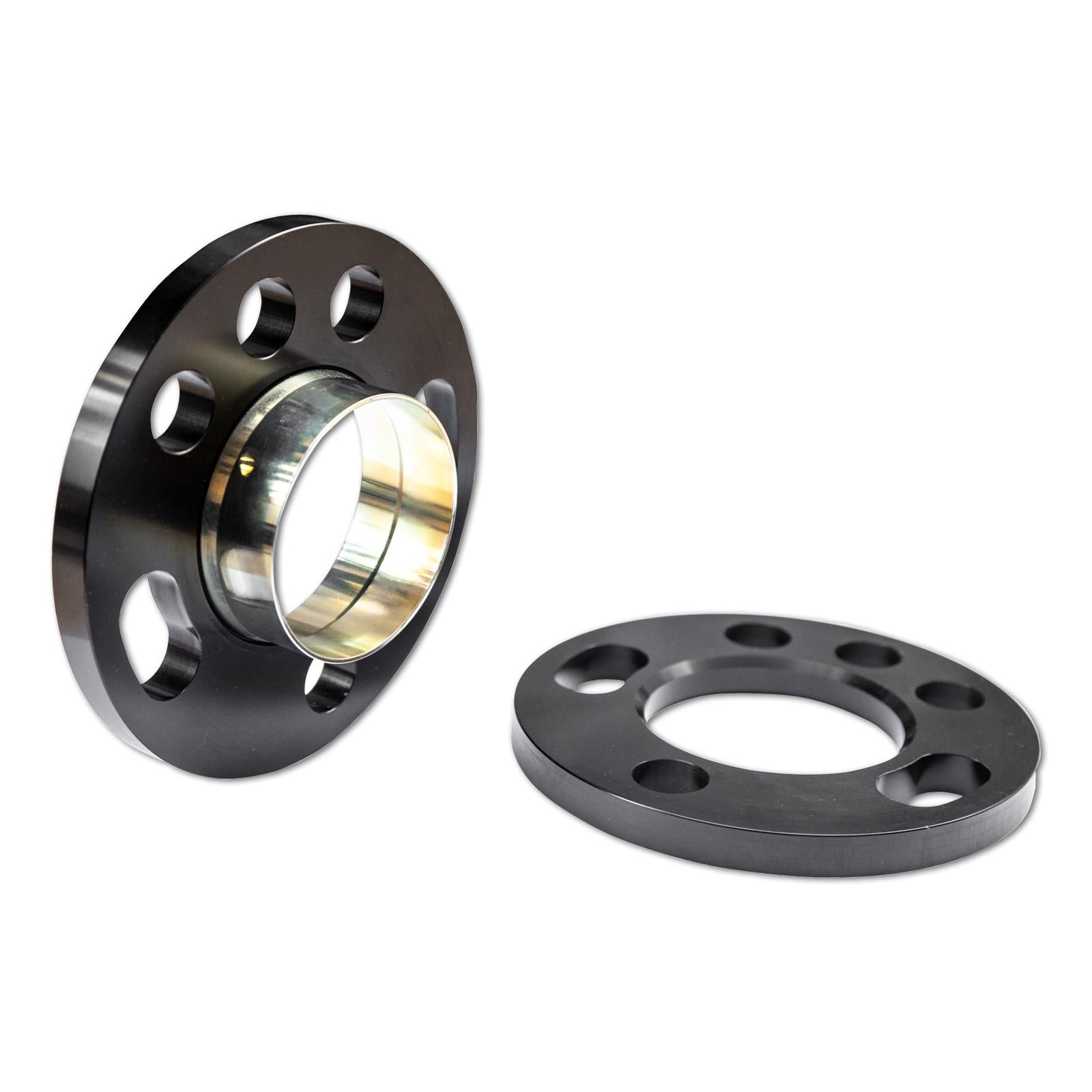

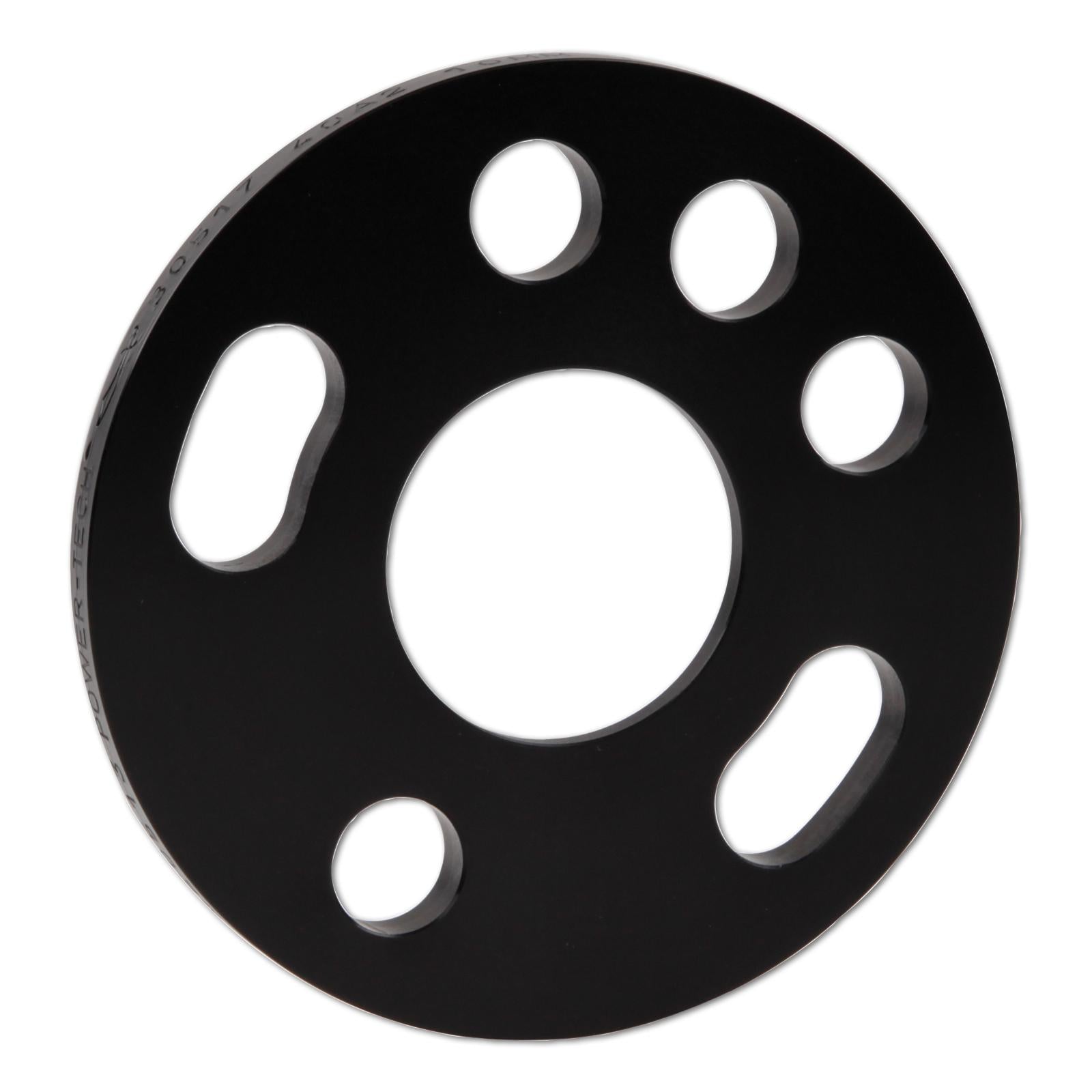

ST Wheel Spacer System DZX+ 10mm Axle 5x112 / 57.1 with 13mm wheel hub extension
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.
ST Wheel Spacer System DZX+ 10mm Axle 5x112 / 57.1 with 13mm wheel hub extension
Sale price$369.00
Regular price (/)
Description
Wheel Spacer System DZX+ 10mm Axle 5x112 / 57,1 with 13mm wheel hub extension
System DZX+ 5, 7.5 and 10mm per wheel
DZX bolt-thorugh system with polyamide adapter ring and additional centering sleeve for wheel hub extension. This spacer system is used for cars with construction related issues of the wheel centering. With the DZX + system, the wheel is no longer centered on the wheel spacer, as the wheel hub centering of the axle is extended and so wider spacer widths can be used. Longer wheel bolts have to be ordered separately.
- Scope of delivery: 2 spacer discs system DZX, 2 DZX adapter rings narrow, 2 centering sleeves
- Made of high quality aluminium
- Black anodized for maximum corrosion protection
- Dynamic car appearance
- Improved driving dynamics thanks to wider track width
- Matching wheel bolts available in black and silver
Product Disclaimers:
- Note 312: Only for front axle
- Note 313: Chamfer of the rim at least 5x45¡, length of wheel hub max. 13,0mm
- Note 325: Steel cores have to be mounted for extending the centering. If the car is serially equipped with grease caps, they have to be removed before mounting the steel core and fixed to the cores afterwards. The steel cores are included in the scope of delivery
- Note 308: Only for rear axle
Fitments
| Make | Model | Type | Body Type | Aspiration | KW | CCM | Cyl | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| AUDI | Q2 (GA) GAB 06/2016- | 1.0 TFSI | SUV | Petrol | 85 | 999 | 3 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 1.4 TFSI | SUV | Petrol | 110 | 1395 | 4 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 1.6 TDI | SUV | Diesel | 85 | 1598 | 4 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 2.0 TDI | Closed Off-Road Vehicle | Diesel | 105 | 1968 | 4 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 2.0 TDI | SUV | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 2.0 TDI quattro | SUV | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 2.0 TDI quattro | SUV | Diesel | 140 | 1968 | 4 | All-wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 2.0 TFSI quattro | SUV | Petrol | 140 | 1984 | 4 | All-wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 30 TDI | SUV | Diesel | 85 | 1598 | 4 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 30 TDI | SUV | Diesel | 85 | 1968 | 4 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 30 TFSI | SUV | Petrol | 81 | 999 | 3 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 30 TFSI | SUV | Petrol | 85 | 999 | 3 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 35 TDI | SUV | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 35 TDI quattro | SUV | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 35 TFSI | SUV | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | 40 TFSI quattro | SUV | Petrol | 140 | 1984 | 4 | All-wheel Drive |
| AUDI | Q2 (GA) GAB 06/2016- | SQ2 TFSI quattro | SUV | Petrol | 221 | 1984 | 4 | All-wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 1.0 TSI | Saloon | Petrol | 81 | 999 | 3 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 1.0 TSI e-TEC | Hatchback | Petrol/Electric | 81 | 999 | 3 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 1.4 TSI iV | Hatchback | Petrol/Electric | 150 | 1395 | 4 | Front-Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 1.4 TSI IV RS | Hatchback | Petrol | 110 | 1395 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 1.4 TSI IV RS | Hatchback | Petrol/Electric | 180 | 1395 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 1.5 TSI | Saloon | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 1.5 TSI G-TEC | Hatchback | Petrol/Compressed Natural Gas (CNG) | 96 | 1495 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 2.0 TDI | Saloon | Diesel | 85 | 1968 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 2.0 TDI | Saloon | Diesel | 105 | 1968 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 2.0 TDI | Saloon | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 2.0 TDI | Hatchback | Diesel | 147 | 1968 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 2.0 TDI 4x4 | Hatchback | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 2.0 TDI 4x4 | Hatchback | Diesel | 147 | 1968 | 4 | All-wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 2.0 TFSI | Saloon | Petrol | 140 | 1984 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 2.0 TSI 4x4 | Hatchback | Petrol | 140 | 1984 | 4 | All-wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | 2.0 TSI RS | Hatchback | Petrol | 180 | 1984 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV (NX3) 01/2020- | TSI e-TEC | Hatchback | Petrol/Electric | 110 | 1498 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 1.0 TSI | Estate | Petrol | 81 | 999 | 3 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 1.0 TSI e-TEC | Estate | Petrol/Electric | 81 | 999 | 3 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 1.4 TSI | Estate | Petrol | 110 | 1395 | 4 | Front-Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 1.4 TSI Hybrid | Estate | Petrol/Electric | 110 | 1395 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 1.4 TSI iV | Estate | Petrol/Electric | 150 | 1395 | 4 | Front-Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 1.4 TSI IV RS | Estate | Petrol/Electric | 110 | 1395 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 1.4 TSI IV RS | Estate | Petrol/Electric | 180 | 1395 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 1.5 TSI | Estate | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 1.5 TSI G-TEC | Estate | Petrol/Compressed Natural Gas (CNG) | 96 | 1498 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 2.0 TDI | Estate | Diesel | 85 | 1968 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 2.0 TDI | Estate | Diesel | 105 | 1968 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 2.0 TDI | Estate | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 2.0 TDI | Estate | Diesel | 147 | 1968 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 2.0 TDI 4x4 | Estate | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 2.0 TDI 4x4 | Estate | Diesel | 147 | 1968 | 4 | All-wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 2.0 TFSI 4x4 | Estate | Petrol | 140 | 1984 | 4 | All-wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | 2.0 TSI RS | Estate | Petrol | 180 | 1984 | 4 | Front Wheel Drive |
| SKODA | OCTAVIA IV Combi (NX5) 11/2019- | TSI e-TEC | Estate | Petrol/Electric | 110 | 1498 | 4 | Front Wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 1.0 TSI | SUV | Petrol | 81 | 999 | 3 | Front Wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 1.0 TSI | SUV | Petrol | 85 | 999 | 3 | Front Wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 1.4 TSI | SUV | Petrol | 110 | 1395 | 4 | Front Wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 1.5 TSI | SUV | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 1.5 TSI 4motion | SUV | Petrol | 110 | 1495 | 4 | All-wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 1.6 TDI | SUV | Diesel | 85 | 1598 | 4 | Front Wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 2.0 TDI | SUV | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 2.0 TDI 4motion | SUV | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 2.0 TDI 4motion | SUV | Diesel | 140 | 1968 | 4 | All-wheel Drive |
| VW | T-ROC (A1, A11) 07/2017- | 2.0 TSI 4motion | SUV | Petrol | 140 | 1984 | 4 | All-wheel Drive |
| VW | T-ROC Convertible (AC7) 12/2019- | 1.0 TSI | Convertible | Petrol | 81 | 999 | 3 | Front Wheel Drive |
| VW | T-ROC Convertible (AC7) 12/2019- | 1.0 TSI | Convertible | Petrol | 85 | 999 | 3 | Front Wheel Drive |
| VW | T-ROC Convertible (AC7) 12/2019- | 1.5 TSI | Convertible | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 1.4 eHybrid | SUV | Petrol/Electric | 110 | 1395 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 1.4 TSI | SUV | Petrol | 92 | 1395 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 1.4 TSI | SUV | Petrol | 110 | 1395 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 1.4 TSI 4motion | SUV | Petrol | 110 | 1395 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 1.5 TSI | SUV | Petrol | 96 | 1495 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 1.5 TSI | SUV | Petrol | 96 | 1498 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 1.5 TSI | SUV | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 1.6 TDI | SUV | Diesel | 85 | 1598 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI | SUV | Diesel | 81 | 1968 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI | SUV | Diesel | 85 | 1968 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI | SUV | Diesel | 90 | 1968 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI | SUV | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI 4motion | Closed Off-Road Vehicle | Diesel | 105 | 1968 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI 4motion | SUV | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI 4motion | SUV | Diesel | 130 | 1968 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI 4motion | SUV | Diesel | 140 | 1968 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI 4motion | SUV | Diesel | 147 | 1968 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TDI 4motion | SUV | Diesel | 176 | 1968 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TSI 4motion | SUV | Petrol | 132 | 1984 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TSI 4motion | SUV | Petrol | 140 | 1984 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TSI 4motion | SUV | Petrol | 162 | 1984 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TSI 4motion | SUV | Petrol | 169 | 1984 | 4 | All-wheel Drive |
| VW | TIGUAN II (AD1, 5N) 01/2016- | 2.0 TSI 4motion | SUV | Petrol | 180 | 1984 | 4 | All-wheel Drive |
Strength Proof:
