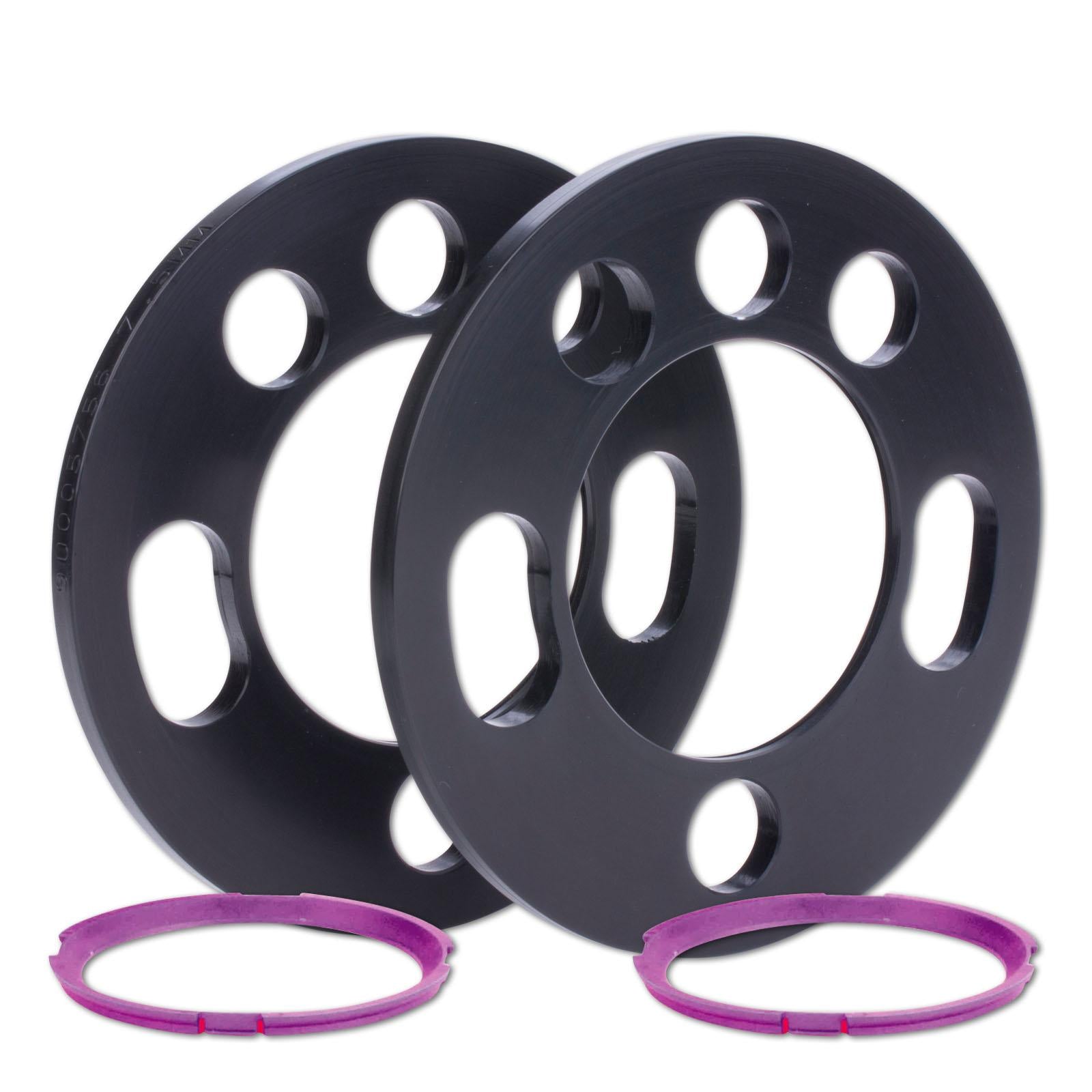

ST Wheel Spacer System DZX 15mm per Axle 4/5-Stud - 5x112/5x100 57.1mm Bore

SKU: 56050376
Sale price$312.55 Regular price$329.00
Save $16.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's DZX is a bolt-through wheel spacer system with multi-PCD bolt holes and interchangeable fibre-reinforced composite adapter rings that centre the spacer on the hub. The modular design suits both 4- and 5-stud hubs and a wide range of centre bores. Longer wheel bolts are required.

Key Features

  • Interchangeable composite centring adapters
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 15 mm per axle (7.5 mm per wheel)
  • Bolt pattern (PCD): 5x112, 5x100
  • Centre bore: 57.1 mm
  • Mounting: Bolt-through (longer wheel fasteners pass through the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel bolts, M14x1.5
  • Position: Front axle
  • Material: Aluminium with composite adapters
  • Supplied as: 2 spacer discs, 2 adapters
Note Longer wheel bolts or shaft nuts are required and are ordered separately.

Attention! Additionally please order longer wheel bolts or shaft nuts!

References 312, 332. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x112, 5x100
Hub bore57.1mm
Width per axle15mm
SystemDZX
ThreadBolt: M14x1.5x27 Ball R13, 17mm wrench size
Wheel offset limit34
MaterialAluminium, composite material
Supplied as2 spacer discs, 2 adapters
  • Note 312: Only for front axle.
  • Note 332: Installation only with rims with a phase of minimum 7mm at the centering collar. Before the installation please check if the wheel spacer fits flat on the wheel hub as well as contact surface of the rim.
