ST Wheel Spacer System DZX+ 15mm Axle 4- and 5-hole / 57.1 with 13mm wheel hub ext
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.
ST Wheel Spacer System DZX+ 15mm Axle 4- and 5-hole / 57.1 with 13mm wheel hub ext
Sale price$379.00
Regular price (/)
Description
Wheel Spacer System DZX+ 15mm Axle 4- and 5-hole / 57,1 with 13mm wheel hub extension
System DZX+ 5, 7.5 and 10mm per wheel

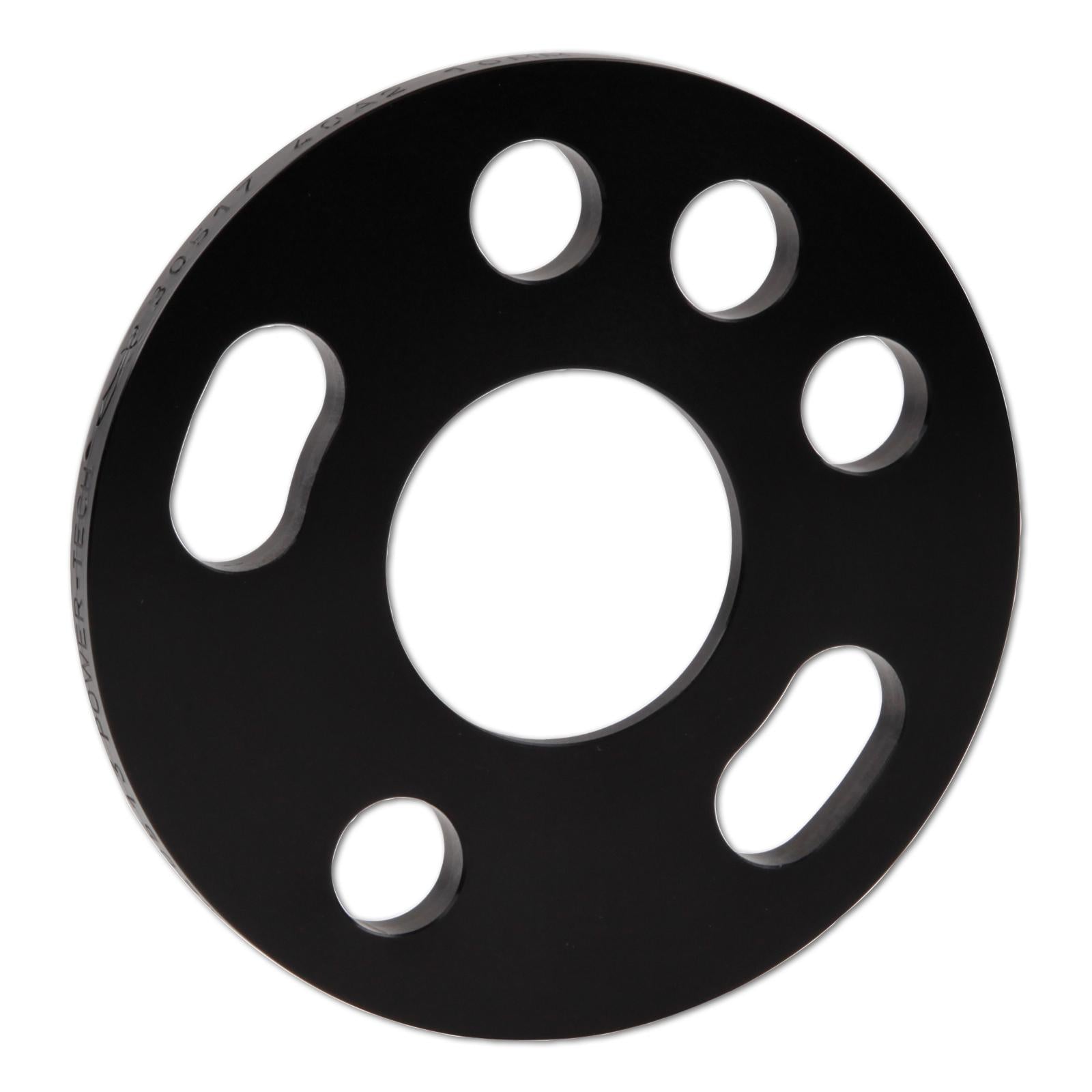

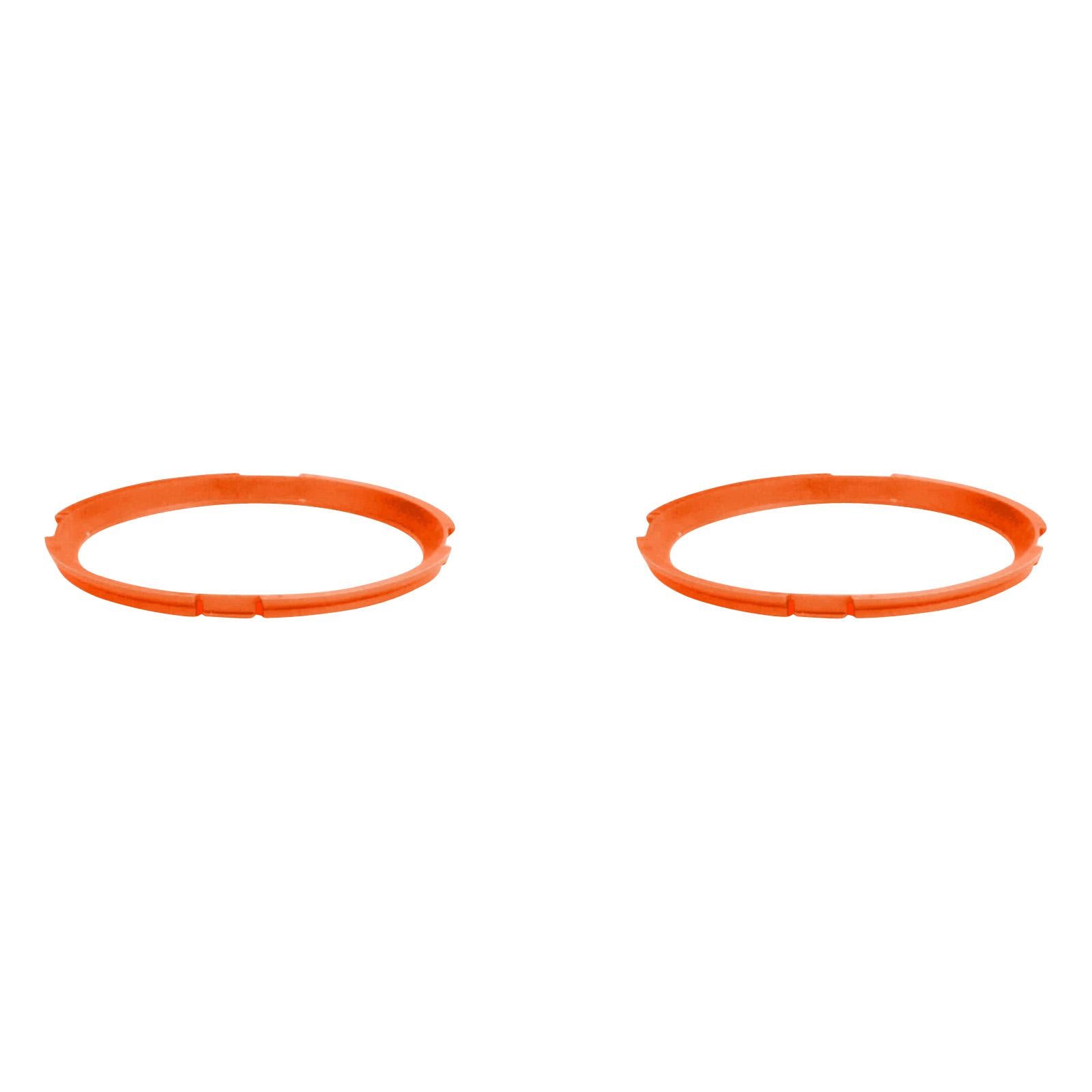

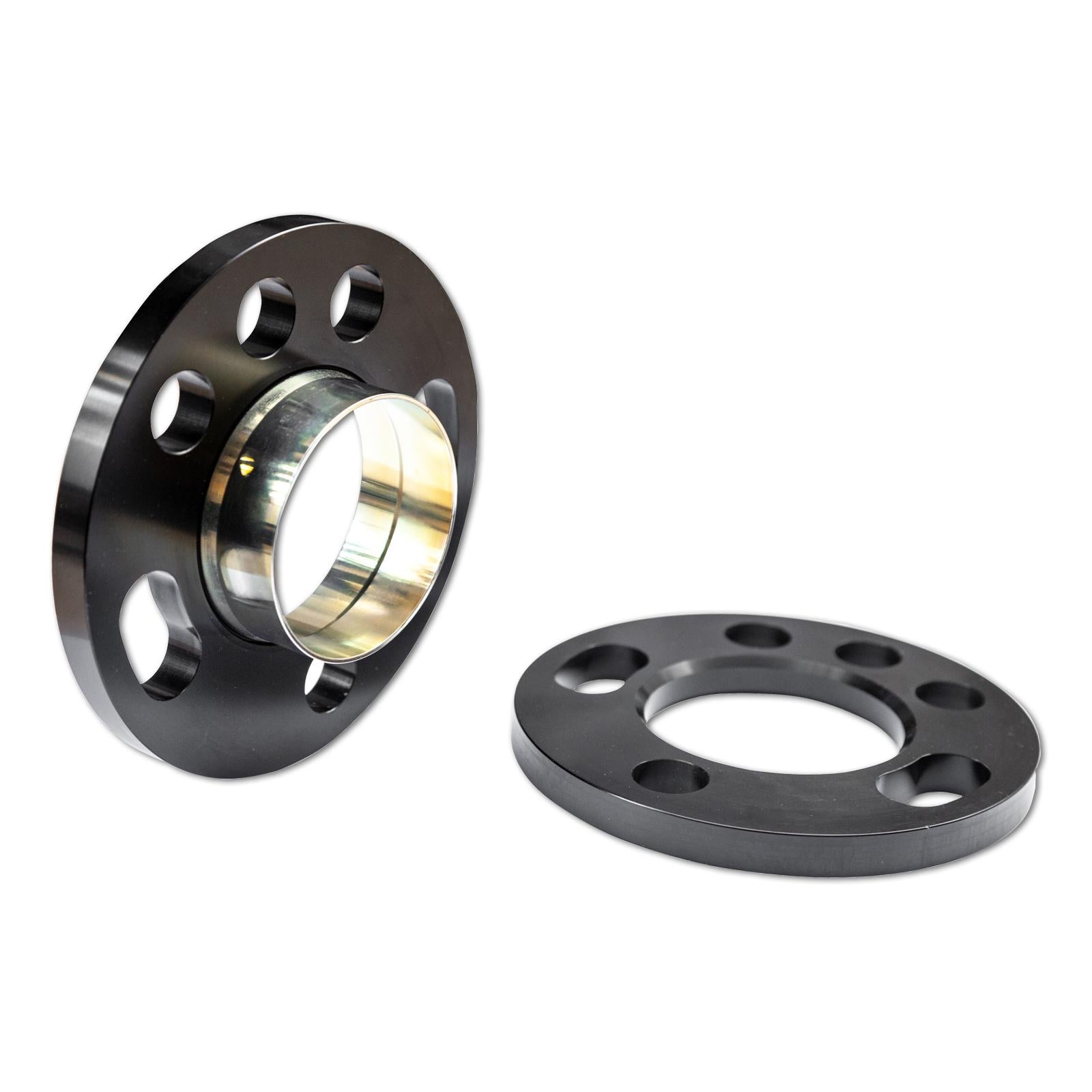

DZX bolt-thorugh system with polyamide adapter ring and additional centering sleeve for wheel hub extension. This spacer system is used for cars with construction related issues of the wheel centering. With the DZX + system, the wheel is no longer centered on the wheel spacer, as the wheel hub centering of the axle is extended and so wider spacer widths can be used. Longer wheel bolts have to be ordered separately.
- Scope of delivery: 2 spacer discs system DZX, 2 DZX adapter rings narrow, 2 centering sleeves
- Made of high quality aluminium
- Black anodized for maximum corrosion protection
- Dynamic car appearance
- Improved driving dynamics thanks to wider track width
- Matching wheel bolts available in black and silver
Product Disclaimers:
- Note 312: Only for front axle
- Note 334: DANGER! When combined with lowering, the wheel cover is necessary by raising the fenders.
- Note 325: Steel cores have to be mounted for extending the centering. If the car is serially equipped with grease caps, they have to be removed before mounting the steel core and fixed to the cores afterwards. The steel cores are included in the scope of delivery
- Note 308: Only for rear axle
Fitments
| Make | Model | Type | Body Type | Aspiration | KW | CCM | Cyl | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| AUDI | A3 Saloon (8V) 8VS, 8VM 05/2013-10/2020 | RS3 quattro | Saloon | Petrol | 294 | 2480 | 5 | All-wheel Drive |
| AUDI | A3 Sportback (8V) 8VA, 8VF 09/2012-10/2020 | RS3 quattro | Hatchback | Petrol | 270 | 2480 | 5 | All-wheel Drive |
| AUDI | A3 Sportback (8V) 8VA, 8VF 09/2012-10/2020 | RS3 quattro | Hatchback | Petrol | 294 | 2480 | 5 | All-wheel Drive |
| AUDI | A3 Sportback (GY) 8YA 11/2019- | S3 quattro | Hatchback | Petrol | 228 | 1984 | 4 | All-wheel Drive |
| AUDI | A3 Sportback (GY) 8YA 11/2019- | S3 quattro | Hatchback | Petrol | 245 | 1984 | 4 | All-wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 2.5 RS quattro | SUV | Petrol | 294 | 2480 | 5 | All-wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 35 TDI | SUV | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 35 TDI quattro | SUV | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 35 TFSI | SUV | Petrol | 110 | 1395 | 4 | Front Wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 35 TFSI | SUV | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 35 TFSI Mild Hybrid | SUV | Petrol/Electric | 110 | 1498 | 4 | Front Wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 40 TDI quattro | SUV | Diesel | 140 | 1968 | 4 | All-wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 40 TDI quattro | SUV | Diesel | 147 | 1968 | 4 | All-wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 40 TFSI quattro | SUV | Petrol | 137 | 1984 | 4 | All-wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 40 TFSI quattro | SUV | Petrol | 140 | 1984 | 4 | All-wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 45 TFSI | SUV | Petrol | 180 | 1984 | 4 | All-wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 45 TFSI e | SUV | Petrol/Electric | 110 | 1395 | 4 | Front-Wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 45 TFSI quattro | SUV | Petrol | 169 | 1984 | 4 | All-wheel Drive |
| AUDI | Q3 (F3) F3B 07/2018- | 45 TFSI quattro | SUV | Petrol | 170 | 1984 | 4 | All-wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 2.0 40 TFSI quattro | SUV | Petrol | 132 | 1984 | 4 | All-wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 2.5 RS quattro | SUV | Petrol | 294 | 2480 | 5 | All-wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 35 TDI | SUV | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 35 TDI quattro | SUV | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 35 TFSI | SUV | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 35 TFSI Mild Hybrid | SUV | Petrol/Electric | 110 | 1498 | 4 | Front Wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 40 TDI quattro | SUV | Diesel | 140 | 1968 | 4 | All-wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 40 TDI quattro | SUV | Diesel | 147 | 1968 | 4 | All-wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 40 TFSI quattro | SUV | Petrol | 140 | 1984 | 4 | All-wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 45 TFSI | SUV | Petrol | 180 | 1984 | 4 | All-wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 45 TFSI e | SUV | Petrol/Electric | 110 | 1395 | 4 | Front-Wheel Drive |
| AUDI | Q3 Sportback (F3N) 06/2019- | 45 TFSI quattro | SUV | Petrol | 169 | 1984 | 4 | All-wheel Drive |
| AUDI | TT (FV) FV3, 8J, 8J1 07/2014- | 2.5 RS quattro | Coupe | Petrol | 294 | 2480 | 5 | All-wheel Drive |
| AUDI | TT Roadster (FV) FV9, 8J, 8J1 11/2014- | 2.5 RS quattro | Convertible | Petrol | 294 | 2480 | 5 | All-wheel Drive |
| CUPRA | LEON 10/2020- | 1.4 e-HYBRID | Hatchback | Petrol/Electric | 150 | 1395 | 4 | Front-Wheel Drive |
| CUPRA | LEON 10/2020- | 1.5 e-HYBRID | Hatchback | Petrol/Electric | 150 | 1498 | 4 | Front-Wheel Drive |
| CUPRA | LEON 10/2020- | 1.5 eTSI | Hatchback | Petrol/Electric | 110 | 1498 | 4 | Front-Wheel Drive |
| CUPRA | LEON 10/2020- | 1.5 TSI | Hatchback | Petrol | 110 | 1498 | 4 | Front-Wheel Drive |
| CUPRA | LEON 10/2020- | 2.0 TDI | Hatchback | Diesel | 110 | 1968 | 4 | Front-Wheel Drive |
| CUPRA | LEON 10/2020- | 2.0 TSI | Hatchback | Petrol | 140 | 1984 | 4 | Front-Wheel Drive |
| CUPRA | LEON 10/2020- | 2.0 TSI | Hatchback | Petrol | 180 | 1984 | 4 | Front-Wheel Drive |
| CUPRA | LEON 10/2020- | 2.0 TSI | Hatchback | Petrol | 221 | 1984 | 4 | Front-Wheel Drive |
| CUPRA | LEON 10/2020- | e-HYBRID | Hatchback | Petrol/Electric | 180 | 1395 | 4 | Front Wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 1.4 e-HYBRID | Estate | Petrol/Electric | 150 | 1395 | 4 | Front-Wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 1.5 eTSI | Estate | Petrol/Electric | 110 | 1498 | 4 | Front-Wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 1.5 TSI | Estate | Petrol | 110 | 1498 | 4 | Front-Wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 2.0 TDI | Estate | Diesel | 110 | 1968 | 4 | Front-Wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 2.0 TDI 4Drive | Estate | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 2.0 TSI | Estate | Petrol | 140 | 1984 | 4 | Front-Wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 2.0 TSI | Estate | Petrol | 180 | 1984 | 4 | Front-Wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 2.0 TSI | Estate | Petrol | 221 | 1984 | 4 | Front-Wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 2.0 TSI 4Drive | Estate | Petrol | 228 | 1984 | 4 | All-wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | 2.0 VZ 4Drive | Estate | Petrol | 245 | 1984 | 4 | All-wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | e-HYBRID | Estate | Petrol/Electric | 150 | 1498 | 4 | Front-Wheel Drive |
| CUPRA | LEON Sportstourer 10/2020- | e-HYBRID | Estate | Petrol/Electric | 180 | 1395 | 4 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.0 TSI | Hatchback | Petrol | 66 | 999 | 3 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.0 TSI | Hatchback | Petrol | 81 | 999 | 3 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.0 TSI Mild Hybrid | Hatchback | Petrol/Electric | 81 | 999 | 3 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.4 TSI e-Hybrid | Hatchback | Petrol/Electric | 150 | 1395 | 4 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.5 eTSI | Hatchback | Petrol/Electric | 85 | 1498 | 4 | Front-Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.5 eTSI | Hatchback | Petrol/Electric | 110 | 1498 | 4 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.5 TGI CNG | Hatchback | Petrol/Compressed Natural Gas (CNG) | 96 | 1498 | 4 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.5 TSI | Hatchback | Petrol | 85 | 1498 | 4 | Front-Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.5 TSI | Hatchback | Petrol | 96 | 1495 | 4 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 1.5 TSI | Hatchback | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 2.0 TDI | Hatchback | Diesel | 85 | 1968 | 4 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 2.0 TDI | Hatchback | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| SEAT | LEON (KL1) 11/2019- | 2.0 TFSI | Hatchback | Petrol | 140 | 1984 | 4 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.0 TSI | Estate | Petrol | 66 | 999 | 3 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.0 TSI | Estate | Petrol | 81 | 999 | 3 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.0 TSI Mild Hybrid | Estate | Petrol/Electric | 81 | 999 | 3 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.4 TSI e-Hybrid | Estate | Petrol/Electric | 150 | 1395 | 4 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.5 eTSI | Estate | Petrol/Electric | 85 | 1498 | 4 | Front-Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.5 eTSI | Estate | Petrol/Electric | 110 | 1498 | 4 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.5 TGi | Estate | Petrol/Compressed Natural Gas (CNG) | 96 | 1498 | 4 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.5 TSI | Estate | Petrol | 85 | 1498 | 4 | Front-Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.5 TSI | Estate | Petrol | 96 | 1495 | 4 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 1.5 TSI | Estate | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 2.0 TDI | Estate | Diesel | 85 | 1968 | 4 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 2.0 TDI | Estate | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 2.0 TDI | Estate | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| SEAT | LEON Sportstourer (KL8) 03/2020- | 2.0 TFSI | Estate | Petrol | 140 | 1984 | 4 | Front Wheel Drive |
| SKODA | YETI (5L) 05/2009-12/2017 | 1.4 TSI 4x4 | SUV | Petrol | 110 | 1395 | 4 | All-wheel Drive |
| SKODA | YETI (5L) 05/2009-12/2017 | 1.8 TSI 4x4 | SUV | Petrol | 112 | 1798 | 4 | All-wheel Drive |
| SKODA | YETI (5L) 05/2009-12/2017 | 1.8 TSI 4x4 | SUV | Petrol | 118 | 1798 | 4 | All-wheel Drive |
| SKODA | YETI (5L) 05/2009-12/2017 | 2.0 TDI 4x4 | SUV | Diesel | 81 | 1968 | 4 | All-wheel Drive |
| SKODA | YETI (5L) 05/2009-12/2017 | 2.0 TDI 4x4 | SUV | Diesel | 103 | 1968 | 4 | All-wheel Drive |
| SKODA | YETI (5L) 05/2009-12/2017 | 2.0 TDI 4x4 | SUV | Diesel | 110 | 1968 | 4 | All-wheel Drive |
| SKODA | YETI (5L) 05/2009-12/2017 | 2.0 TDI 4x4 | SUV | Diesel | 125 | 1968 | 4 | All-wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 1.4 eHybrid | Hatchback | Petrol/Electric | 115 | 1395 | 4 | Front Wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 1.5 TSi | Hatchback | Petrol | 110 | 1495 | 4 | Front Wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TDI | Hatchback | Diesel | 110 | 1968 | 4 | Front Wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TDI | Hatchback | Diesel | 130 | 1968 | 4 | Front Wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TDI | Hatchback | Diesel | 140 | 1968 | 4 | Front Wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TDI | Hatchback | Diesel | 147 | 1968 | 4 | Front Wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TDI 4motion | Hatchback | Diesel | 140 | 1968 | 4 | All-wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TDI 4motion | Hatchback | Diesel | 147 | 1968 | 4 | All-wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TDI 4motion | Hatchback | Diesel | 176 | 1968 | 4 | All-wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TSI | Hatchback | Petrol | 140 | 1984 | 4 | Front Wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TSI | Hatchback | Petrol | 224 | 1984 | 4 | Front-Wheel Drive |
| VW | ARTEON (3H, 3H7) 04/2017- | 2.0 TSi 4motion | Hatchback | Petrol | 200 | 1984 | 4 | All-wheel Drive |
