ST Wheel Spacer System DZX+ 20mm Axle 4- and 5-hole / 60.1 with 13mm wheel hub ext
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.
Description
Wheel Spacer System DZX+ 20mm Axle 4- and 5-hole / 60,1 with 13mm wheel hub extension
System DZX+ 5, 7.5 and 10mm per wheel

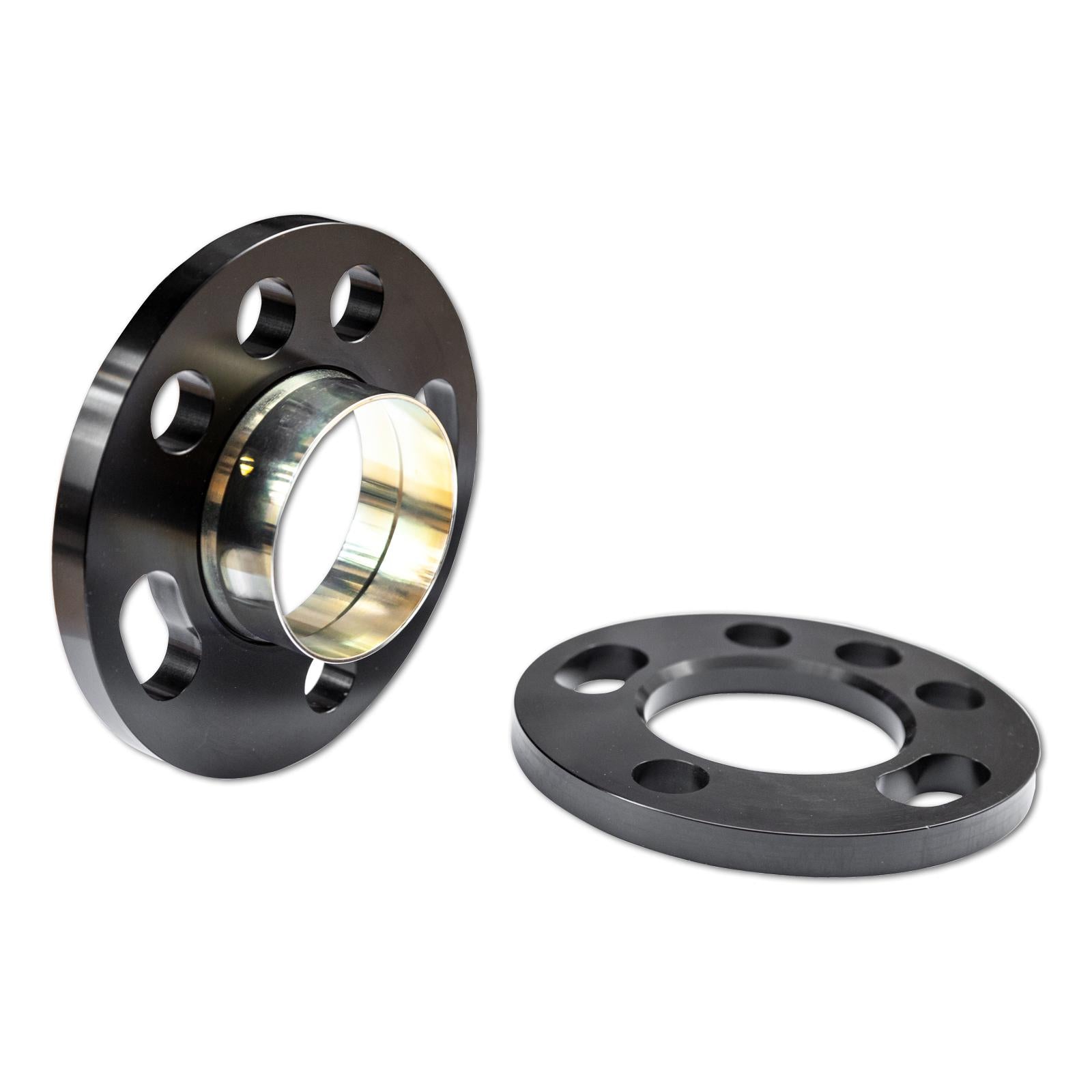

DZX bolt-thorugh system with polyamide adapter ring and additional centering sleeve for wheel hub extension. This spacer system is used for cars with construction related issues of the wheel centering. With the DZX + system, the wheel is no longer centered on the wheel spacer, as the wheel hub centering of the axle is extended and so wider spacer widths can be used. Longer wheel bolts have to be ordered separately.

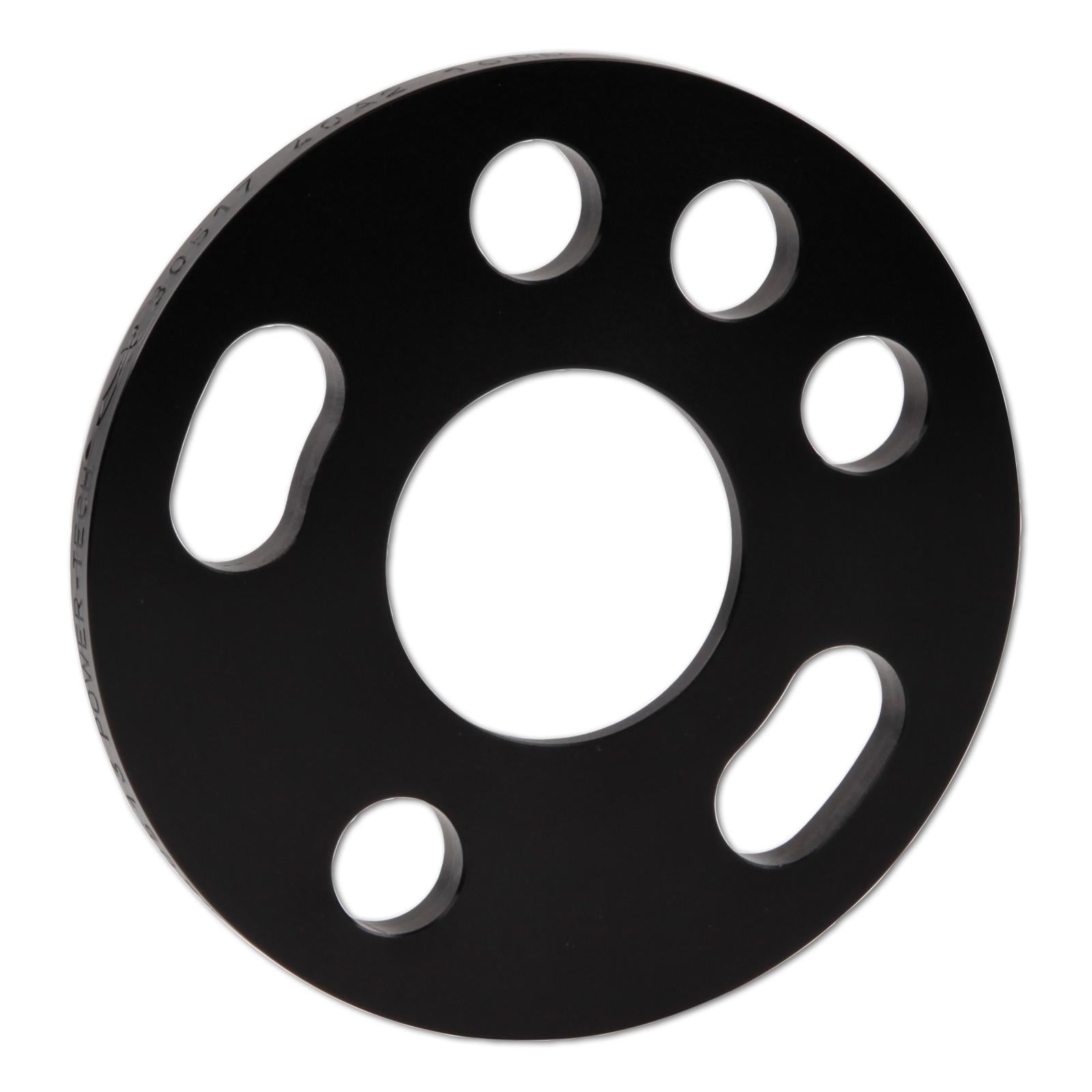

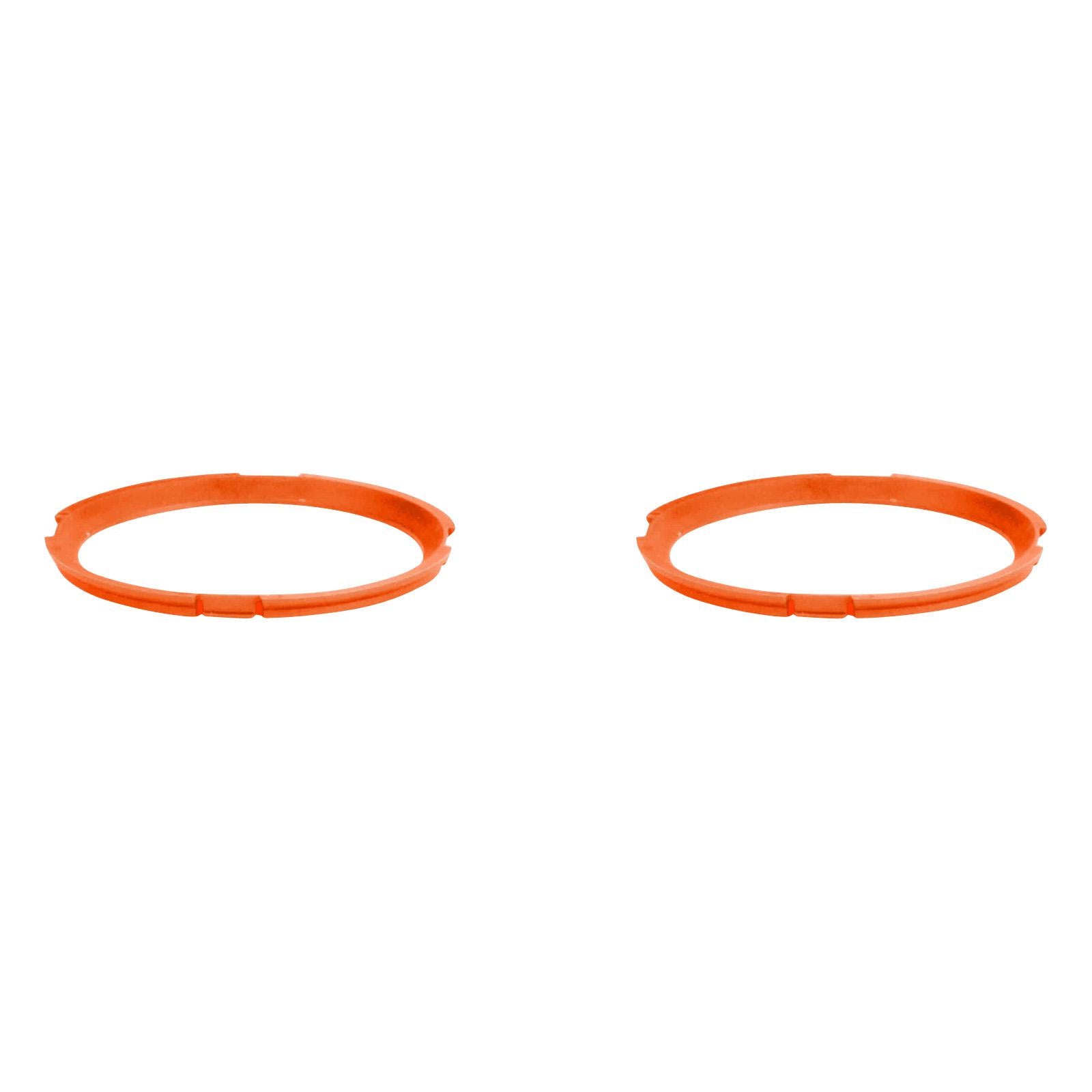

- Scope of delivery: 2 spacer discs system DZX, 2 DZX adapter rings narrow, 2 centering sleeves
- Made of high quality aluminium
- Black anodized for maximum corrosion protection
- Dynamic car appearance
- Improved driving dynamics thanks to wider track width
- Matching wheel bolts available in black and silver
Product Disclaimers:
- Note 325: Steel cores have to be mounted for extending the centering. If the car is serially equipped with grease caps, they have to be removed before mounting the steel core and fixed to the cores afterwards. The steel cores are included in the scope of delivery
- Note 308: Only for rear axle
Fitments
| Make | Model | Type | Body Type | Aspiration | KW | CCM | Cyl | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 0.9 TCe 75 (BHNP) | Hatchback | Petrol | 56 | 898 | 3 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 0.9 TCe 90 | Hatchback | Petrol | 66 | 898 | 3 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 0.9 TCe 90 LPG | Hatchback | Petrol/Liquified Petroleum Gas (LPG) | 66 | 898 | 3 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 1.2 16V | Hatchback | Petrol | 54 | 1149 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 1.2 16V (BHA1, BHAK, BHMG, BHMK) | Hatchback | Petrol | 55 | 1149 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 1.2 LPG (BHMG) | Hatchback | Petrol/Liquified Petroleum Gas (LPG) | 53 | 1149 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 1.2 LPG 16V | Hatchback | Petrol/Liquified Petroleum Gas (LPG) | 54 | 1149 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 1.2 TCe 120 (BHAU) | Hatchback | Petrol | 87 | 1197 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 1.2 TCe 120 (BHM0) | Hatchback | Petrol | 88 | 1197 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 1.5 dCi 110 | Hatchback | Diesel | 81 | 1461 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 1.5 dCi 75 | Hatchback | Diesel | 55 | 1461 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV (BH_, R) 11/2012-12/2019 | 1.5 dCi 90 | Hatchback | Diesel | 66 | 1461 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV Grandtour (KH_, R) 01/2013-12/2019 | 0.9 TCe 75 (KHNP) | Estate | Petrol | 56 | 898 | 3 | Front Wheel Drive |
| RENAULT | CLIO IV Grandtour (KH_, R) 01/2013-12/2019 | 0.9 TCe 90 | Estate | Petrol | 66 | 898 | 3 | Front Wheel Drive |
| RENAULT | CLIO IV Grandtour (KH_, R) 01/2013-12/2019 | 1.2 16V | Estate | Petrol | 54 | 1149 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV Grandtour (KH_, R) 01/2013-12/2019 | 1.2 TCe 120 (KHAU) | Estate | Petrol | 87 | 1197 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV Grandtour (KH_, R) 01/2013-12/2019 | 1.2 TCe 120 (KHM0) | Estate | Petrol | 88 | 1197 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV Grandtour (KH_, R) 01/2013-12/2019 | 1.5 dCi 110 | Estate | Diesel | 81 | 1461 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV Grandtour (KH_, R) 01/2013-12/2019 | 1.5 dCi 75 | Estate | Diesel | 55 | 1461 | 4 | Front Wheel Drive |
| RENAULT | CLIO IV Grandtour (KH_, R) 01/2013-12/2019 | 1.5 dCi 90 | Estate | Diesel | 66 | 1461 | 4 | Front Wheel Drive |
